Density Balancer 380V Hydrogen Gas Analyzer For Molten Aluminum

Certification
China Jinan Hydeb Thermal Tech Co., Ltd. certification
China Jinan Hydeb Thermal Tech Co., Ltd. certification
I'm Online Chat Now

Density Balancer 380V Hydrogen Gas Analyzer For Molten Aluminum

Density Balancer 380V Hydrogen Gas Analyzer For Molten Aluminum
Density Balancer 380V Hydrogen Gas Analyzer For Molten Aluminum
Density Balancer 380V Hydrogen Gas Analyzer For Molten Aluminum Density Balancer 380V Hydrogen Gas Analyzer For Molten Aluminum Density Balancer 380V Hydrogen Gas Analyzer For Molten Aluminum Density Balancer 380V Hydrogen Gas Analyzer For Molten Aluminum

Large Image :  Density Balancer 380V Hydrogen Gas Analyzer For Molten Aluminum

Product Details:
Place of Origin: China
Brand Name: Hydeb
Certification: CE,ISO9001,ISO14001,IS45001,High-tech Enterprise,Intellectual Property,Patents
Model Number: CQY011A
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $ 5000-$20000/set
Packaging Details: Wooden Box
Delivery Time: 10 working days
Payment Terms: T/T
Supply Ability: 100 sets per year

Density Balancer 380V Hydrogen Gas Analyzer For Molten Aluminum

Description
Name: Density Balancer 380V Hydrogen Analyzer For Molten Aluminum Warranty: 1 Year
Color: White Power: 380V/ 50HZ
Test Metal: Molten Aluminum Raw Material: Iron Steel Shell
High Light:

380V Hydrogen Gas Analyzer

,

Density Balancer Hydrogen Gas Analyzer

,

Molten Aluminum Hydrogen Gas Analyzer

Density Balancer 380V Hydrogen Analyzer For Molten Aluminum



Molten Aluminum Quality Detecting Hydrogen Analyzer





1. Application

The analysis of Hydrogen in Molten Aluminium is important and essential due to the fact that Hydrogen has high affinity

to get absorbed in Molten Aluminium. At the same time, when Aluminium solidifies, more or less all the dissolved Hydrogen

is released. As Hydrogen gas leaves the solidifying metal, it leaves tracks in the metal in the form of porosity.

Such porous Aluminium castings are not acceptable in the industry for obvious reasons.

To avoid this kind of porosity, it is important to degas the metal before it is poured into moulds for solidifying.

It is therefore important to determine the extent of Hydrogen present in liquid Aluminium.



The hydrogen analyzer, which works on the Straube-Preiffer test principle (decompression solidification test method),

is used to qualitatively measure the content of hydrogen in molten aluminum. A decompression solidification test is

conducted to make a solidification sample of molten aluminum under the conditions of decompression (a vacuum degree

determined according to the technological requirements). Subsequently, the sample is analyzed by various methods to

qualitatively determine the content of hydrogen in molten aluminum in an indirect way. It can be used for quality control

during aluminum alloy casting and for smelting detection.





2. Using Envrionment



---There is no conductive dust, explosive gas and corrosive gas that can seriously damage metal and insulation. All electrical
installations should not be damaged by physical and chemical operations (eg, thermal effects of the environment, moisture, etc.)

during normal operation.



---Indoor use.



3. Composition



Item Type Name Qty Mark
Main Engine
1 CQY-011A Hydrogen Analyzer 1
Including: Vacuum System, Frame and Control System and so on
Density Reading Part
2 MP Density Balance 1
Including: Vacuum system, frame and electrical control system
Accessories and Tools
3   Density Measuring Device 1 set
4   Nickel Crucibles 2 pcs Spare parts
5   Crucible Plier 1 pcs
6   O Type Rubber Sealing Rings 5 pcs Spare parts
7   Heat Insulation Pad 4 pcs Spare parts
8   Glass Audition 1 pcs
Technical Documents



4. Models



Type CQY-010 CQY-010A CQY-011 CQY-011A




5. Pictures

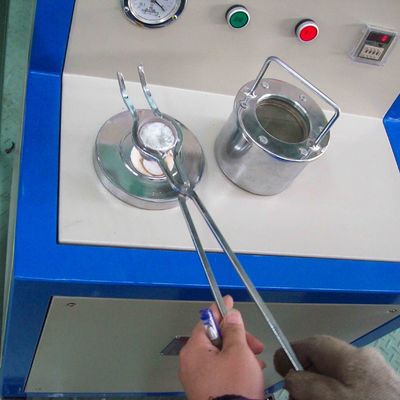

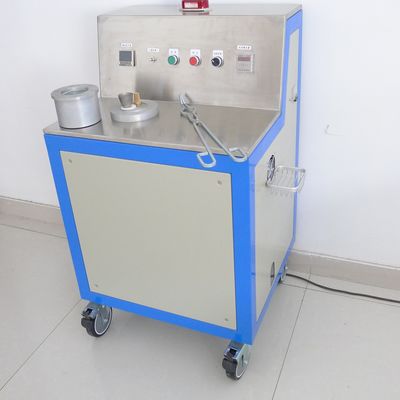

Density Balancer 380V Hydrogen Gas Analyzer For Molten Aluminum 0



Density Balancer 380V Hydrogen Gas Analyzer For Molten Aluminum 1





6. Company Introduce



-- Established in January 2003, and now has 56 employees

-- Sales of 50 million RMB in 2021

-- Focus on one industry -- "aluminum casting"

-- Has a complete product line of aluminum casting equipment, all products are independent research

and development, manufacturing

-- aluminum melting and holding, transportation, ladle preheating, aluminum liquid refining, aluminum liquid

hydrogen measurement, until aluminum solution aging treatment equipment



7. Our Clients

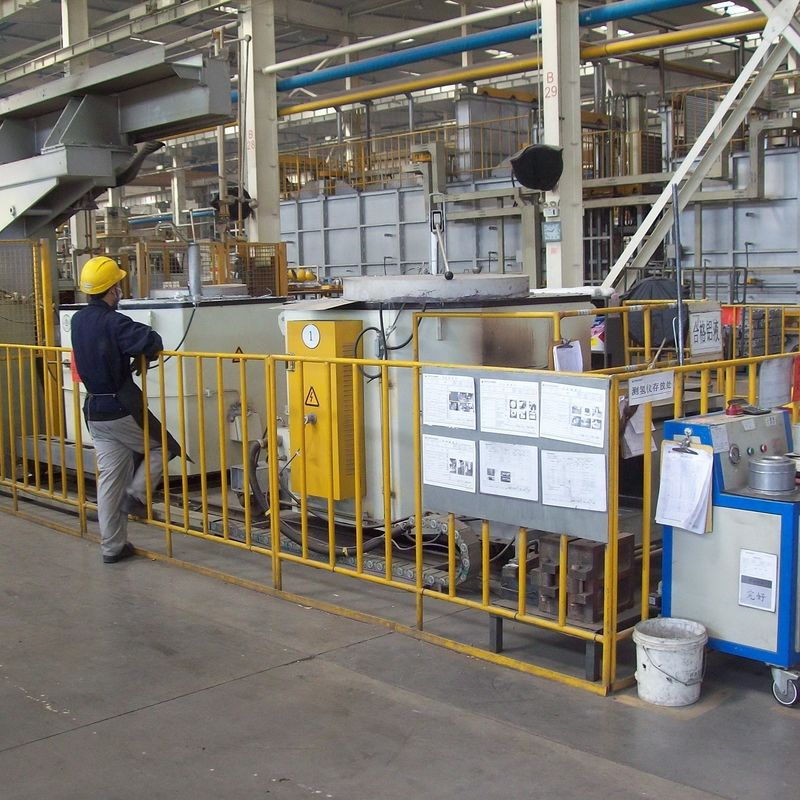

Density Balancer 380V Hydrogen Gas Analyzer For Molten Aluminum 2
