Product Details:
|
| Product Name: | Hydrogen Analyzer For Molten Aluminum Quality Detecter White For Hydrogen Testing | Time: | Less Than 3 Minutes |
|---|---|---|---|
| Color: | Blue And White | Total Power: | <500w |
| Power Supply: | 220v AC/50Hz | Maximum Allowable Temperature: | 100℃ |
| High Light: | 500W hydrogen purity meter,0.099MPa hydrogen purity meter,h2s gas analyzer conductive dust free |
||
Hydrogen Analyzer For Molten Aluminum Quality Detecter White For Hydrogen Testing
Molten Aluminum Quality Detecting Hydrogen Analyzer
1. Application
The hydrogen analyzer, which works on the Straube-Preiffer test principle (decompression solidification test method),
is used to qualitatively measure the content of hydrogen in molten aluminum. A decompression solidification test is
conducted to make a solidification sample of molten aluminum under the conditions of decompression (a vacuum degree
determined according to the technological requirements). Subsequently, the sample is analyzed by various methods to
qualitatively determine the content of hydrogen in molten aluminum in an indirect way. It can be used for quality control
during aluminum alloy casting and for smelting detection.
2. Using Conditions
---There is no conductive dust, explosive gas and corrosive gas that can seriously damage metal and insulation.
All electrical installations should not be damaged by physical and chemical operations (eg, thermal effects of the
environment, moisture, etc.) during normal operation.
---Indoor use.
3. Mainly Parts
| Item | Type | Name | Qty | Mark |
| Main Engine | ||||
| 1 | CQY-011A | Hydrogen Analyzer | 1 | |
| Including: Vacuum System, Frame and Control System and so on | ||||
| Density Reading Part | ||||
| 2 | MP | Density Balance | 1 | |
| Including: Vacuum system, frame and electrical control system | ||||
| Accessories and Tools | ||||
| 3 | Density Measuring Device | 1 set | ||
| 4 | Nickel Crucibles | 2 pcs | Spare parts | |
| 5 | Crucible Plier | 1 pcs | ||
| 6 | O Type Rubber Sealing Rings | 5 pcs | Spare parts | |
| 7 | Heat Insulation Pad | 4 pcs | Spare parts | |
| 8 | Glass Audition | 1 pcs | ||
| Technical Documents | ||||
4. Models
| Type | CQY-010 | CQY-010A | CQY-011 | CQY-011A |

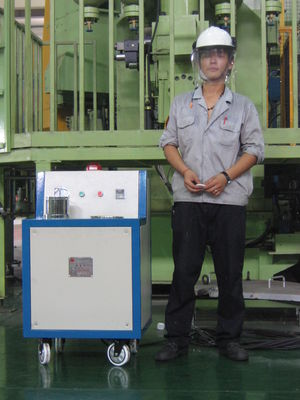

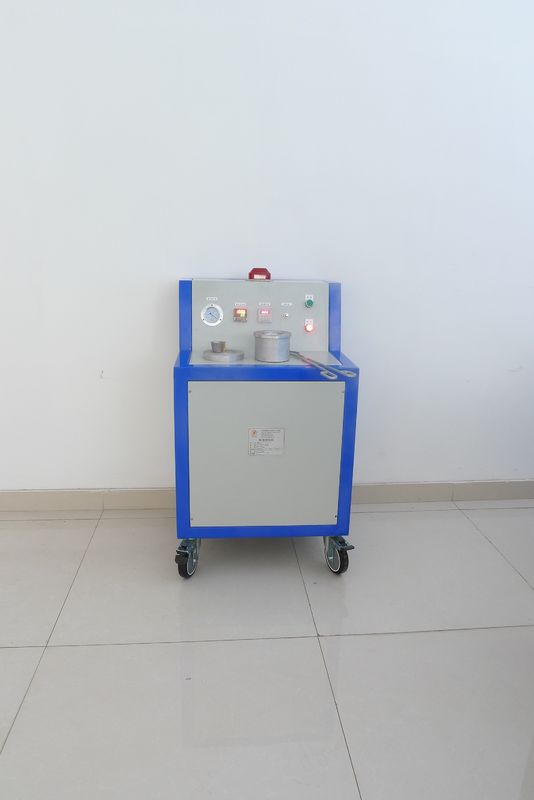

5. Pictures Showing
6. About Hydeb
-- Established in January 2003, and now has 56 employees
-- Sales of 50 million RMB in 2021
-- Focus on one industry -- "aluminum casting"
-- Has a complete product line of aluminum casting equipment, all products are independent research
and development, manufacturing
-- aluminum melting and holding, transportation, ladle preheating, aluminum liquid refining, aluminum liquid
hydrogen measurement, until aluminum solution aging treatment equipment
7. Our Streights
8. FRQ
Q1: I know nothing about this machine, what kind of machine I should choose?
Very easy. We will email you an inquiry form for making sure your real need. Or just tell us what you want to do
by using this machine, then let us give you perfect solutions and suggestions.
Q2: When I get this machine, but I don’t know how to use it. What should I do?
We will send pictures or video and English manual with the machine. If you still have some doubts, we can talk
by Telephone/ Skype / Whatsapp / Weichat/ E-mail.
Q3: If some problems happen to this machine during warranty period, what should I do?
We will supply free parts during machine warranty period if machine have some problems (except spare parts).
While we also supply free life long after-sales service. So any doubts, just let us know, we will give you solutions.
