980C Electric Foundry Crucible Melting Furnace Non Exhaust 880mm

980C Electric Foundry Crucible Melting Furnace Non Exhaust 880mm
980C Electric Foundry Crucible Melting Furnace Non Exhaust 880mm
980C Electric Foundry Crucible Melting Furnace Non Exhaust 880mm 980C Electric Foundry Crucible Melting Furnace Non Exhaust 880mm 980C Electric Foundry Crucible Melting Furnace Non Exhaust 880mm

Large Image :  980C Electric Foundry Crucible Melting Furnace Non Exhaust 880mm

Product Details:
Place of Origin: China
Brand Name: Hydeb
Certification: CE,ISO9001,ISO14001,IS45001,High-tech Enterprise
Model Number: CRL-800
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $ 20000-$50000/set
Packaging Details: Pallet or Wooden Case
Delivery Time: 30 working days
Payment Terms: T/T
Supply Ability: 20 sets per year

980C Electric Foundry Crucible Melting Furnace Non Exhaust 880mm

Description
Name: Electric Heating 800KG Blue Industrial Aluminum Melting Furnace For Casting Line Usage: Melting Aluminum Alloy
Color: Blue Max. Temperature: 980 ℃
Power: Electricity Material: Iron Steel & Insulation Layer
Melting Rate Kg/h (Al): 280 Pressure MPa: 0.5
High Light:

980C crucible melting furnace

,

crucible melting furnace non exhaust

,

electric foundry furnace 880mm

Electric Heating 800KG Blue Industrial Aluminum Melting Furnace For Casting Line



800KG Capacity Electric Heating Smelting Crucible Furnace



1. Melting Crucible Furnace Introduce



-- Use in all foundries or aluminum die casting area

–  smeltery for feeding holding furnaces or for direct casting.

-- Low heat losses through high-quality insulation

-- No exhaust system needed

-- Accurate temperature control Crucible

-- Standard design for the use of graphite crucible



2. Melting Crucible Furnace Data



SN Items Data Remarks
1 Efficient furnace capacity kg (Al) 580
2 Melting Rate kg/h (Al) 280 Inside the crucible there is already have 1/3 molten aluminum.
5 Maximum furnace temperature ℃ 950
6 Precision of molten aluminum temperature control ℃ ≤± 5
7 Temperature control mode PID+Dual temperature control
8 Crucible type and size mm OD 880, d 350mm, H 1000

BN800

Morgen

9 Furnace surface temperature rise ℃ ≤50 Except for the installation site of the heating tube, the discharge outlet and rising tube
11 Power Source Voltage V 380
Frequency HZ 50

12 Air Pressure MPa 0.5-0.7



3. Types



Type CRL-300 CRL-500 CRL-600 CRL-800 CRL-1000 CRL-1200
Capacity 191KG 338KG 515KG 763KG 952KG 1062KG

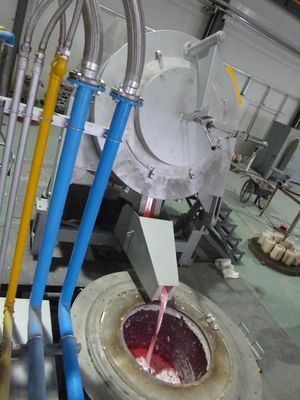

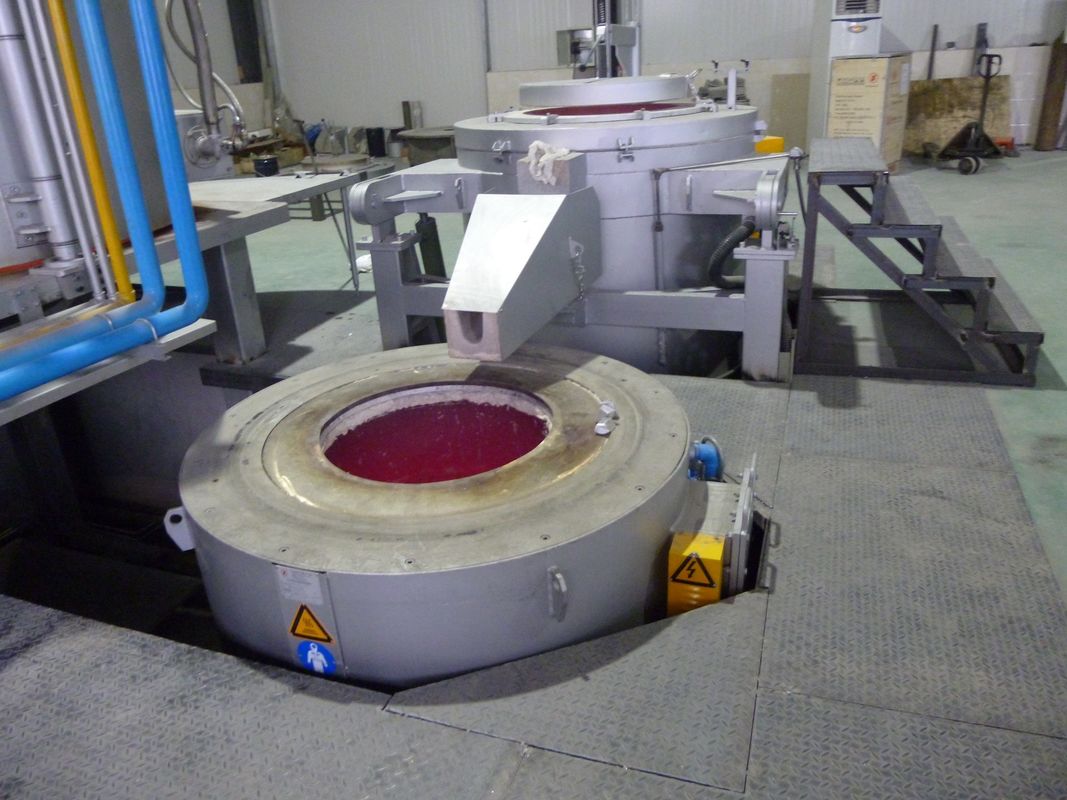

4. Picture Show



980C Electric Foundry Crucible Melting Furnace Non Exhaust 880mm 0



980C Electric Foundry Crucible Melting Furnace Non Exhaust 880mm 1



5. Company Introduce



--  Established in January 2003, and now has 56 employees
--  Sales of 50 million RMB in 2021
--  Focus on one industry -- "aluminum casting"

--  Has a complete product line of aluminum casting equipment, all products are independent research

    and development, manufacturing

-- aluminum melting and holding, transportation, ladle preheating, aluminum liquid refining, aluminum liquid
   hydrogen measurement, until aluminum solution aging treatment equipment

6. FRQ


Q1: I know nothing about this machine, what kind of machine I should choose?
Very easy. We will email you an inquiry form for making sure your real need. Or just tell us what you want to
do by using this machine, then let us give you perfect solutions and suggestions.


Q2: When I get this machine, but I don’t know how to use it. What should I do?
We will send pictures or video and English manual with the machine. If you still have some doubts, we can talk
by Telephone/ Skype / Whatsapp / Weichat/ E-mail.


Q3: If some problems happen to this machine during warranty period, what should I do?
We will supply free parts during machine warranty period if machine have some problems (except spare parts).
While we also supply free life long after-sales service. So any doubts, just let us know, we will give you solutions.
