Product Details:
|
| Product Name: | Electric Melting Pot For Aluminum 1000KG Capacity Grey For LPD | Shell Material: | Iron Steel And Insulation Layer |
|---|---|---|---|
| Color: | Grey | Warranty Time: | 1 Years |
| Power: | Electricity | Function: | Melting Aluminum Alloy |
| High Light: | Grey 1000KG industrial aluminum melting furnace,industrial aluminum melting furnace,aluminum melting equipment for LPD |
||
Electric Melting Pot For Aluminum 1000KG Capacity Grey For LPD
Electric Heating Smelting Crucible Furnace
1. Electric Melting Pot For Aluminum Specification Data
| SN | Items | Data | Remarks | |
| 1 | Efficient furnace capacity kg (Al) | 930 | ||
| 2 | Melting Rate kg/h (Al) | 280 | Inside the crucible there is already have 1/3 molten aluminum. | |
| 5 | Maximum furnace temperature ℃ | 900 | ||
| 6 | Precision of molten aluminum temperature control ℃ | ≤± 5 | ||
| 7 | Temperature control mode | PID+Dual temperature control | ||
| 8 | Crucible type and size mm | OD 880, d 350mm, H 1000 |
BN800 Morgen |
|
| 9 | Furnace surface temperature rise ℃ | ≤50 | Except for the installation site of the heating tube, the discharge outlet and rising tube | |
| 11 | Power Source | Voltage V | 380 | |
| Frequency HZ | 50 | |||
| 12 | Air Pressure MPa | 0.5-0.7 | ||
2. Electric Melting Pot For Aluminum Types
| Type | CRL-300 | CRL-500 | CRL-600 | CRL-800 | CRL-1000 | CRL-1200 |
| Capacity | 191KG | 338KG | 515KG | 763KG | 952KG | 1062KG |

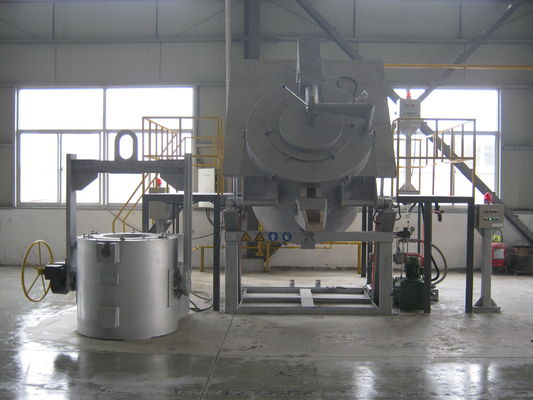

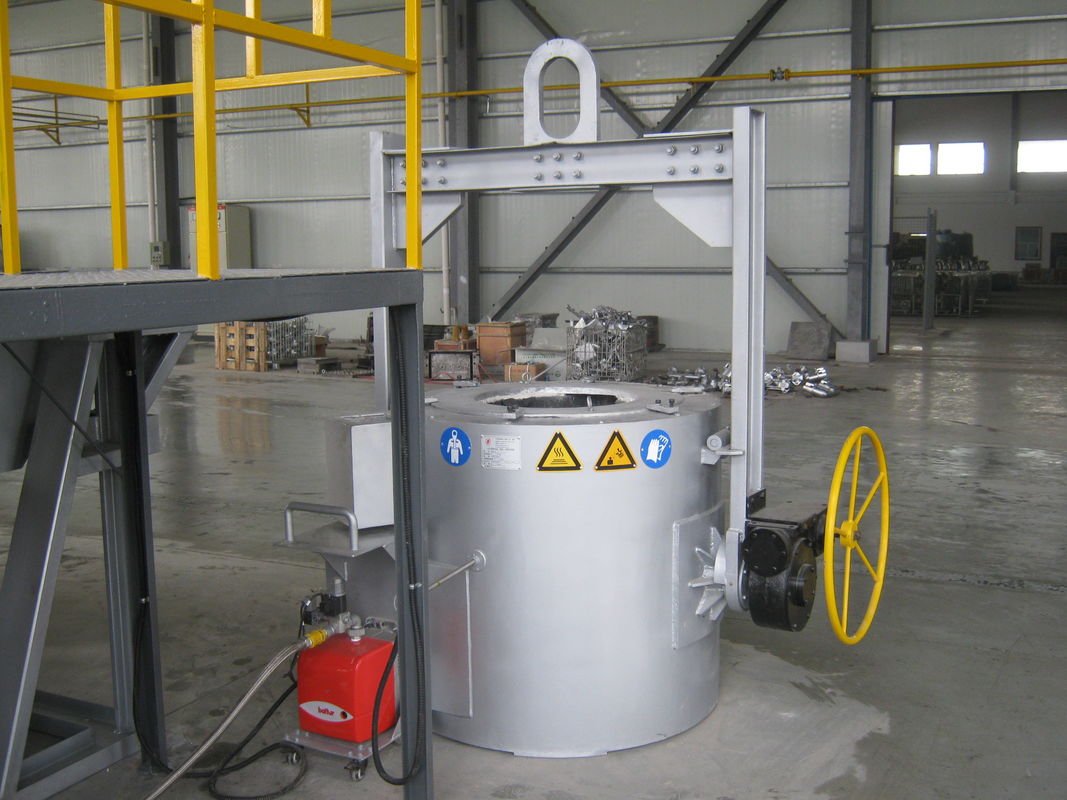

3. Electric Melting Pot For Aluminum Picture Show
4. Electric Melting Pot For Aluminum Features
Using high-grade refractory materials, the hearth has a long life, does not stick to aluminum liquid and slag,
and is convenient for cleaning slag and soup; the side wall of the furnace is full-fiber structure,
and is equipped with various types of insulation materials, which has good heat insulation and heat storage
The temperature rise of the furnace wall does not exceed 15°C of the environment.
Focusing on the aluminum casting industry, the Company takes “Technology, Quality and Service” as
its base of enterprise, aimed at meeting all the needs of customers. Being “Safe, Practical, Reliable,
Efficient and nice-looking”, its products are well unanimous recognized by the customers,
with its brand “HYDEB” gaining high popularity in the industry.
Founded in January 2003, the Jinan HYDEB Thermal Tech Co., Ltd. is located in Jinan High-tech
Development Zone. The Company mainly produces molten aluminum refining and degassing units,
molten aluminum transfer ladles and holding crucible furnaces, which are sold to well-known
corporations in the industry at home and abroad, meeting their high requirements for product safety and advancement.
Q1: I know nothing about this furnace, what kind of furnace I should choose?
Very easy. We will email you an inquiry form for making sure your real need. Or just tell us what you want to
do by using this machine, then let us give you perfect solutions and suggestions.
Q2: When I get this furnace, but I don’t know how to use it. What should I do?
We will send pictures or video and English manual with the machine. If you still have some doubts, we can talk
by Telephone/ Skype / Whatsapp / Weichat/ E-mail.
Q3: If some problems happen to this furnace during warranty period, what should I do?
We will supply free parts during machine warranty period if machine have some problems (except spare parts).
While we also supply free life long after-sales service. So any doubts, just let us know, we will give you solutions.
