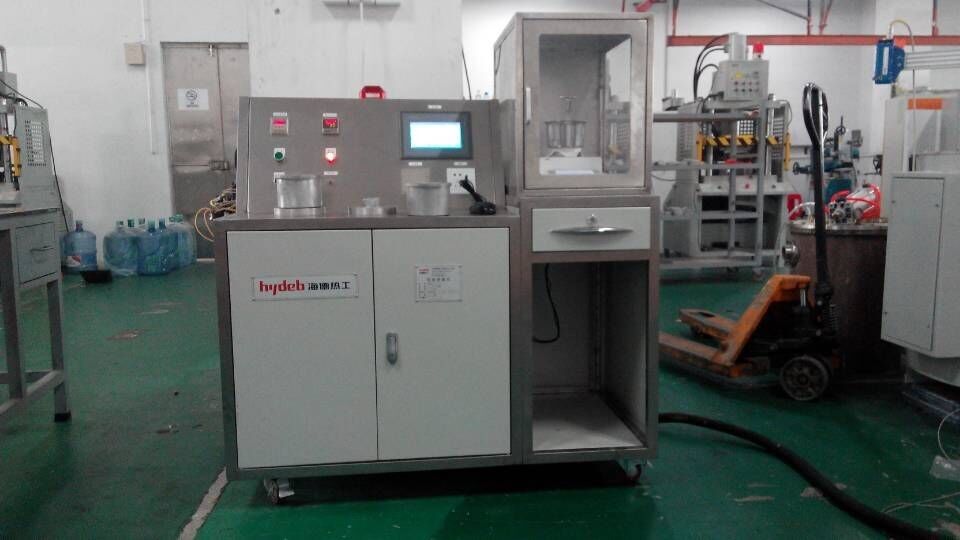

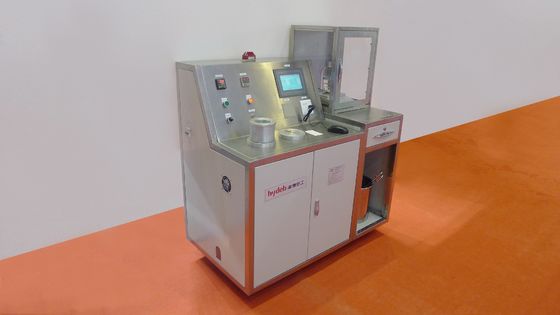

Portable H2s Hydrogen Analyzer 1570mm Aluminum Alloy Density Index 100C

Aluminum Alloy Density Index Analyzer For Checking Hydrogen In Molten Aluminum

Molten Aluminum Quality Detecting Hydrogen Analyzer

1. Density Index Analyzer Application

Density index analyzer is a visual indicator which comprehensively reflects the purity of metals and then detects
the cleanliness of molten aluminum (gas content, dross content). The aluminum alloy density index analyzer is
used to measure the density of aluminum alloy samples before casting and quantitatively detect the actual purity
(density) of aluminum alloy samples, thus accurately and quantitatively reflecting the comprehensive influence of
hydrogen and various slags in molten aluminum on aluminum alloy castings to determine the effect of molten
aluminum refinement.

2.  Density Index Analyzer  Features

•  The aluminum alloy density index analyzer is an ideal and practical way to evaluate the effect of degassing and
refinement, the quality of molten aluminum and the performance of the smelting technology.

•   High analysis speed. In the field environment, it just takes 7 minutes to analyze the quality of molten aluminum.

•   The aluminum alloy density index analyzer judges the quality of molten aluminum by magnifying defects of molten
aluminum, so it can be used to inspect the quality of molten aluminum more precisely and accurately.

•   Detection quantification. It can eliminates the ambiguity and uncertainty of the results achieved by the conventional
sample solidification state method and sample section state observation method.

•   Eliminating alloy effect. Alloy types must be made clear when the conventional decompression density method is
used to inspect the quality of molten aluminum, whereas the density calculation method to eliminate the effect of various alloys.

•  The vacuum cover is equipped with a high-temperature-resistant, high-strength quartz glass observation window,
which can be visualized the solidification of the aluminum liquid.

•   Data is calculated and recorded automatically. This process is controlled by a microprocessor.

•   The equipment is provided with a data printer, which can print all measured data about the vacuum density, atmospheric
pressure density and density index.

•   With a communication interface, it can be conveniently connected to the system network for collection and transmission
of network data.

•   The data can be read by an SD card and then processed statistically on a computer.

3.  Density Index Analyzer Parameters

4. Models

5. Showing

6. About Hydeb

-- Hydeb established in January 2003, and now has 56 employees

-- Sales of 50 million RMB in 2020

-- Focus on one industry -- "aluminum casting"

-- Has a complete product line of aluminum casting equipment, all products are independent research

and development, manufacturing

-- aluminum melting and holding, transportation, ladle preheating, aluminum liquid refining, aluminum liquid

hydrogen measurement, until aluminum solution aging treatment equipment

7. Our Clients
