Product Details:
|
| Product Name: | CQY 011A Blue Easy Operation Hydrogen Analyzer For Molten Aluminum Quality Detecter | Warranty Time: | 1 Year |
|---|---|---|---|
| Test Time: | 5 Minutes | Color: | Blue |
| Voltage: | 380V | Size: | Standarded |
| Weight: | 120KG | Material: | Iron Steel Shell |
| High Light: | 380V Hydrogen Analyzer,Hydrogen Analyzer Molten Aluminum quality 370W,hydrogen purity meter ISO9001 |
||

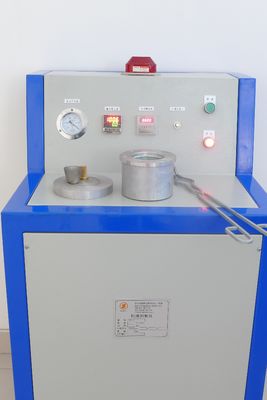

CQY 011A Blue Easy Operation Hydrogen Analyzer for Molten Aluminum Quality Detecter
Molten Aluminum Quality Detecting Hydrogen Analyzer
1. Hydrogen Analyzer Function
The hydrogen analyzer, which works on the Straube-Preiffer test principle (decompression solidification test method),
is used to qualitatively measure the content of hydrogen in molten aluminum. A decompression solidification test
is conducted to make a solidification sample of molten aluminum under the conditions of decompression (a vacuum
degree determined according to the technological requirements). Subsequently, the sample is analyzed by various
methods to qualitatively determine the content of hydrogen in molten aluminum in an indirect way. It can be used
for quality control during aluminum alloy casting and for smelting detection.
2. Hydrogen Analyzer Using Conditions
---There is no conductive dust, explosive gas and corrosive gas that can seriously damage metal and insulation.
All electrical installations should not be damaged by physical and chemical operations (eg, thermal effects of the
environment, moisture, etc.) during normal operation.
---Indoor use.
3. Hydrogen Analyzer Compostion
| Item | Type | Name | Qty | Mark |
| Main Engine | ||||
| 1 | CQY-011A | Hydrogen Analyzer | 1 | |
| Including: Vacuum System, Frame and Control System and so on | ||||
| Density Reading Part | ||||
| 2 | MP | Density Balance | 1 | |
| Including: Vacuum system, frame and electrical control system | ||||
| Accessories and Tools | ||||
| 3 | Density Measuring Device | 1 set | ||
| 4 | Nickel Crucibles | 2 pcs | Spare parts | |
| 5 | Crucible Plier | 1 pcs | ||
| 6 | O Type Rubber Sealing Rings | 5 pcs | Spare parts | |
| 7 | Heat Insulation Pad | 4 pcs | Spare parts | |
| 8 | Glass Audition | 1 pcs | ||
| Technical Documents | ||||
4. Models
| Type | CQY-010 | CQY-010A | CQY-011 | CQY-011A |

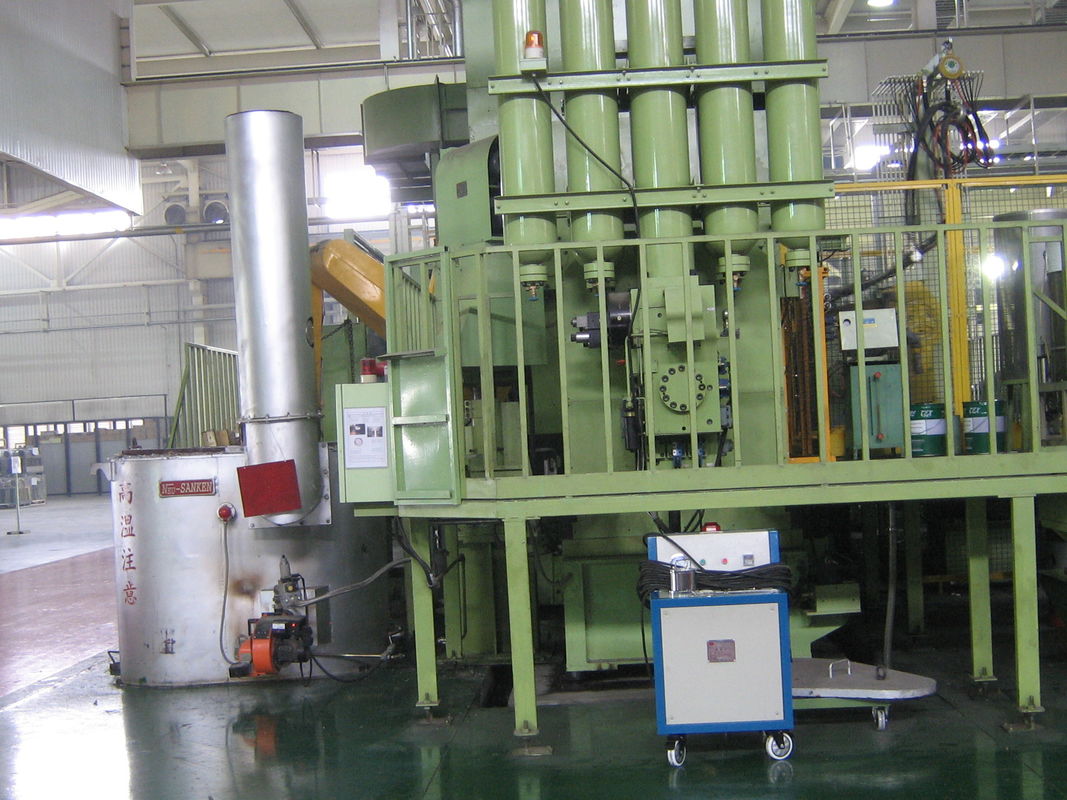

5. Showing Pictures
6. About Hydeb
-- Established in January 2003, and now has 56 employees
-- Sales of 50 million RMB in 2020
-- Focus on one industry -- "aluminum casting"
-- Has a complete product line of aluminum casting equipment, all products are independent research
and development, manufacturing
-- aluminum melting and holding, transportation, ladle preheating, aluminum liquid refining, aluminum liquid
hydrogen measurement, until aluminum solution aging treatment equipment
7. Our Strength
8. FRQ
Q1: I know nothing about this hydrogen analyzer, what kind of hydrogen analyzer I should choose?
Very easy. We will email you an inquiry form for making sure your real need. Or just tell us what you want to do
by using this machine, then let us give you perfect solutions and suggestions.
Q2: When I get this hydrogen analyzer, but I don’t know how to use it. What should I do?
We will send pictures or video and English manual with the machine. If you still have some doubts, we can talk by
Telephone/ Skype / Whatsapp / Weichat/ E-mail.
Q3: If some problems happen to this hydrogen analyzer during warranty period, what should I do?
We will supply free parts during machine warranty period if machine have some problems (except spare parts).
While we also supply free life long after-sales service. So any doubts, just let us know, we will give you solutions.
