Product Details:
|
| Name: | Aluminum Alloy Density Index Analyzer DIA White HPD With Automatic Working | Time: | Less Than 3 Minutes |
|---|---|---|---|
| Colour: | White | Voltage: | 380V |
| Size: | Standarded | Material: | Iron Steel Shell |
| Highlight: | 500g capacity hydrogen gas analyzer,0.09MPa hydrogen gas analyzer,portable hydrogen analyzer 380V |
||

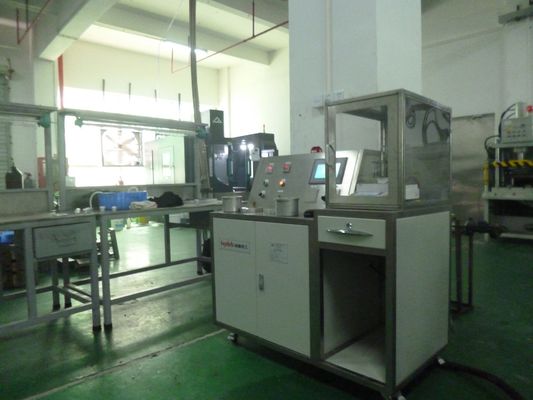

Aluminum Alloy Density Index Analyzer DIA White HPD With Automatic Working
Molten Aluminum Quality Detecting Hydrogen Analyzer
1. Function
Density index analyzer is a visual indicator which comprehensively reflects the purity of metals and then detects
the cleanliness of molten aluminum (gas content, dross content). The aluminum alloy density index analyzer is
used to measure the density of aluminum alloy samples before casting and quantitatively detect the actual purity
(density) of aluminum alloy samples, thus accurately and quantitatively reflecting the comprehensive influence of
hydrogen and various slags in molten aluminum on aluminum alloy castings to determine the effect of molten aluminum refinement.
2. Merits
• The aluminum alloy density index analyzer is an ideal and practical way to evaluate the effect of degassing and refinement,
the quality of molten aluminum and the performance of the smelting technology.
• High analysis speed. In the field environment, it just takes 7 minutes to analyze the quality of molten aluminum.
• The aluminum alloy density index analyzer judges the quality of molten aluminum by magnifying defects of molten aluminum,
so it can be used to inspect the quality of molten aluminum more precisely and accurately.
• Detection quantification. It can eliminates the ambiguity and uncertainty of the results achieved by the conventional sample
solidification state method and sample section state observation method.
• Eliminating alloy effect. Alloy types must be made clear when the conventional decompression density method is used to
inspect the quality of molten aluminum, whereas the density calculation method to eliminate the effect of various alloys.
• The vacuum cover is equipped with a high-temperature-resistant, high-strength quartz glass observation window, which
can be visualized the solidification of the aluminum liquid.
• Data is calculated and recorded automatically. This process is controlled by a microprocessor.
• The equipment is provided with a data printer, which can print all measured data about the vacuum density, atmospheric
pressure density and density index.
• With a communication interface, it can be conveniently connected to the system network for collection and transmission of
network data.
• The data can be read by an SD card and then processed statistically on a computer.
3. Specification
|
Total Power |
<500w |
|
Power Supply |
220v AC/50Hz |
|
Ultimate vacuum (relative to 1 standard atmosphere) |
-0.099MPa |
|
Adjusting range of vacuum degree |
0-0.099MPa |
|
Control accuracy of vacuum degree |
±1 kPa |
|
Sample making time |
<5min |
|
Time to reach ultimate vacuum |
≤1min |
|
Maximum allowable temperature |
100℃ |
|
Measured accuracy of detection density index value |
<0.2 |
|
Repeatability of measured density index value |
<0.2 (Note: equipment detection accuracy) |
|
Maximum measurement range of electronic balance |
500g |
|
Measurement accuracy of balance |
0.001g |
|
Measurement repeatability precision of balance |
±0.001g |
|
Response time of balance measurement |
≤2S |
4. Types
| Type | CQY-010 | CQY-010A | CQY-011 | CQY-011A |
DIA |
5. About Us
-- Established in January 2003, and now has 56 employees
-- Sales of 50 million RMB in 2021
-- Focus on one industry -- "aluminum casting"
-- Has a complete product line of aluminum casting equipment, all products are independent research
and development, manufacturing
-- aluminum melting and holding, transportation, ladle preheating, aluminum liquid refining, aluminum liquid
hydrogen measurement, until aluminum solution aging treatment equipment
6. Picture Show
