Product Details:
|
| Key Words: | CQY 010 Blue Hydrogen Analyzer For Molten Aluminum Quality Detecter For HPD | Time: | < 5 Minutes |
|---|---|---|---|
| Colour: | Blue | Voltage: | 380V Or Customized |
| Size: | 660X600X1100 Mm | Raw Material: | Iron Steel |
| High Light: | 5 min h2s gas analyzer,h2s gas analyzer 1100 MM,hydrogen purity analyzer for Molten Aluminum |
||
CQY 010 Blue Hydrogen Analyzer for Molten Aluminum Quality Detecter for HPD
Molten Aluminum Quality Detecting Hydrogen Analyzer in High Pressure Die Casting Area
1. Usage
The hydrogen analyzer, which works on the Straube-Preiffer test principle (decompression solidification test method),
is used to qualitatively measure the content of hydrogen in molten aluminum. A decompression solidification test is
conducted to make a solidification sample of molten aluminum under the conditions of decompression (a vacuum degree
determined according to the technological requirements). Subsequently, the sample is analyzed by various methods to
qualitatively determine the content of hydrogen in molten aluminum in an indirect way. It can be used for quality control
during aluminum alloy casting and for smelting detection.
2. Using Conditions
---There is no conductive dust, explosive gas and corrosive gas that can seriously damage metal and insulation.
All electrical installations should not be damaged by physical and chemical operations (eg, thermal effects of the
environment, moisture, etc.) during normal operation.
---Indoor use.
3. Mainly Parts
| Item | Type | Name | Qty | Mark |
| Main Engine | ||||
| 1 | CQY-010 | Hydrogen Analyzer | 1 | |
| Including: Vacuum System, Frame and Control System and so on | ||||
| Density Reading Part | ||||
| 2 | YP | Density Balance | 1 | |
| Including: Vacuum system, frame and electrical control system | ||||
| Accessories and Tools | ||||
| 3 | Density Measuring Device | 1 set | ||
| 4 | Nickel Crucibles | 2 pcs | Spare parts | |
| 5 | Crucible Plier | 1 pcs | ||
| 6 | O Type Rubber Sealing Rings | 5 pcs | Spare parts | |
| 7 | Heat Insulation Pad | 4 pcs | Spare parts | |
| 8 | Glass Audition | 1 pcs | ||
| Technical Documents | ||||
4. Types
| Type | CQY-010 | CQY-010A | CQY-011 | CQY-011A |

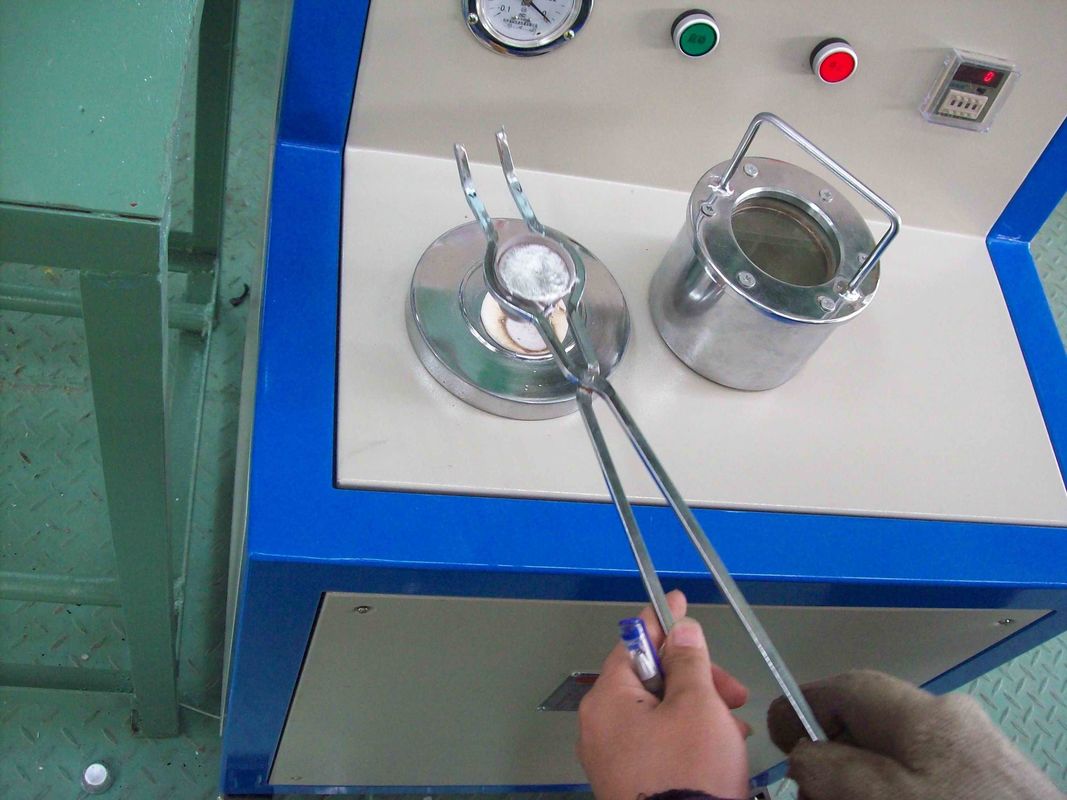

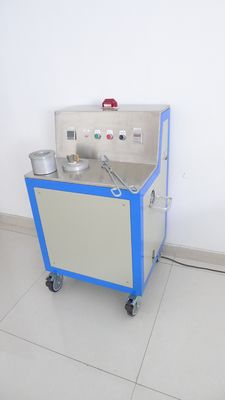

5. Pictures
6. About Us
-- Established in January 2003, and now has 56 employees
-- Sales of 50 million RMB in 2021
-- Focus on one industry -- "aluminum casting"
-- Has a complete product line of aluminum casting equipment, all products are independent research
and development, manufacturing
-- aluminum melting and holding, transportation, ladle preheating, aluminum liquid refining, aluminum liquid
hydrogen measurement, until aluminum solution aging treatment equipment
7. Our Strengths
