Product Details:
|
| Name: | CQY 011 White Hydrogen Analyzer For Molten Aluminum Quality Detecter | Warranty Time: | 1 Year |
|---|---|---|---|
| Test Time: | 5 Minutes | Colour: | White |
| Size: | 660*600*1100mm | Raw Material: | Iron Steel |
| High Light: | Hydrogen Analyzer 660 X 600 X 1100 mm,Hydrogen Analyzer ODM,exhaust gas analyser ISO9001 |
||
CQY 011 White Hydrogen Analyzer For Molten Aluminum Quality Detector
HDP Molten Aluminum Quality Detecting Hydrogen Analyzer
1. Quality Detector Application
The hydrogen analyzer, which works on the Straube-Preiffer test principle (decompression solidification test method),
is used to qualitatively measure the content of hydrogen in molten aluminum. A decompression solidification test is
conducted to make a solidification sample of molten aluminum under the conditions of decompression (a vacuum
degree determined according to the technological requirements). Subsequently, the sample is analyzed by various
methods to qualitatively determine the content of hydrogen in molten aluminum in an indirect way. It can be used for
quality control during aluminum alloy casting and for smelting detection.
2. Quality Detector Working Environment
---There is no conductive dust, explosive gas and corrosive gas that can seriously damage metal and insulation.
All electrical installations should not be damaged by physical and chemical operations (eg, thermal effects of the
environment, moisture, etc.) during normal operation.
---Indoor use.
3. Quality Detector Analyzer Composition
| Item | Type | Name | Qty | Mark |
| Main Engine | ||||
| 1 | CQY-011 | Hydrogen Analyzer | 1 | |
| Including: Vacuum System, Frame and Control System and so on | ||||
| Density Reading Part | ||||
| 2 | MP | Density Balance | 1 | |
| Including: Vacuum system, frame and electrical control system | ||||
| Accessories and Tools | ||||
| 3 | Density Measuring Device | 1 set | ||
| 4 | Nickel Crucibles | 2 pcs | Spare parts | |
| 5 | Crucible Plier | 1 pcs | ||
| 6 | O Type Rubber Sealing Rings | 5 pcs | Spare parts | |
| 7 | Heat Insulation Pad | 4 pcs | Spare parts | |
| 8 | Glass Audition | 1 pcs | ||
| Technical Documents | ||||
4. Types
| Type | CQY-010 | CQY-010A | CQY-011 | CQY-011A |

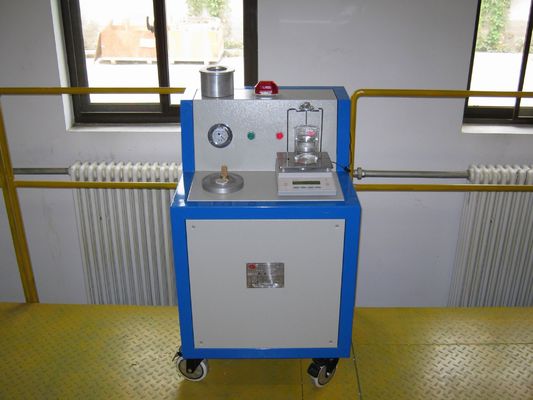

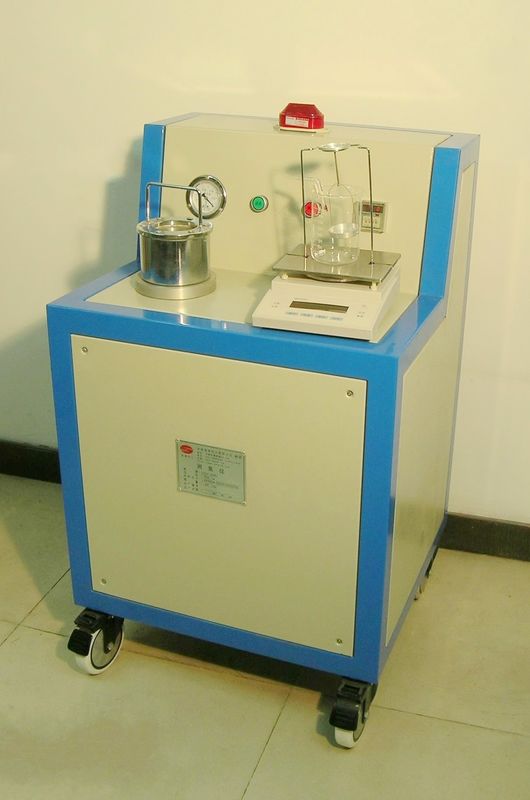

5. Picture Show
6. Company Profile
-- Established in January 2003, and now has 56 employees
-- Sales of 50 million RMB in 2020
-- Focus on one industry -- "aluminum casting"
-- Has a complete product line of aluminum casting equipment, all products are independent research
and development, manufacturing
-- aluminum melting and holding, transportation, ladle preheating, aluminum liquid refining, aluminum liquid
hydrogen measurement, until aluminum solution aging treatment equipment
7. Our Strengths
8. FRQ
Q1: I know nothing about this quality detector, what kind of quality detector I should choose?
Very easy. We will email you an inquiry form for making sure your real need. Or just tell us what you want to
do by using this machine, then let us give you perfect solutions and suggestions.
Q2: When I get this quality detector, but I don’t know how to use it. What should I do?
We will send pictures or video and English manual with the machine. If you still have some doubts, we can talk
by Telephone/ Skype / Whatsapp / Weichat/ E-mail.
Q3: If some problems happen to this quality detector during warranty period, what should I do?
We will supply free parts during machine warranty period if machine have some problems (except spare parts).
While we also supply free life long after-sales service. So any doubts, just let us know, we will give you solutions.
