Product Details:
|
| Product Name: | Aluminum Alloy Density Index Analyzer DIA Orange With Automatic Working | Warranty Time: | 1 Year |
|---|---|---|---|
| Test Time: | Less Than 3 Minutes | Color: | Orange |
| Voltage: | 380V | Size: | Customized |
| Weight: | 200KG | Material: | Iron |
| High Light: | Aluminum purity portable flue gas analyzer,portable flue gas analyzer 3 minutes,hydrogen gas purity analyzer Iron shell ISO90001 |
||

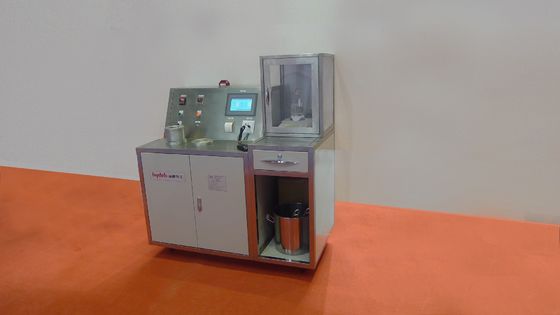

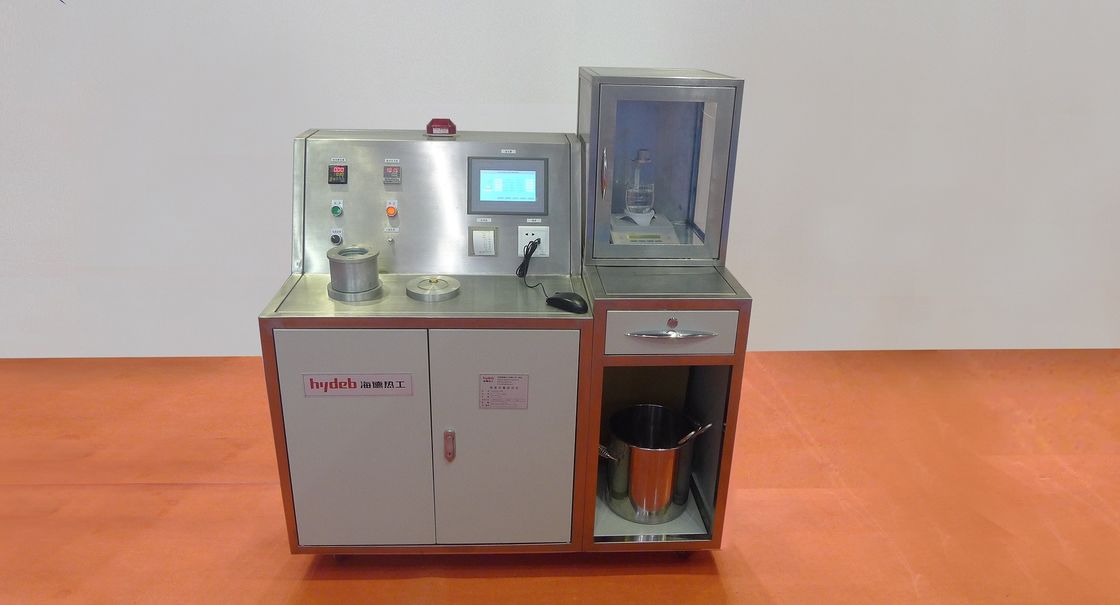

Aluminum Alloy Density Index Analyzer DIA Orange With Automatic Working
Molten Aluminum Quality Detecting Hydrogen Analyzer
1. Usage
After degassing, the molten metal is once again checked in the furnace to ascertain that the presence
of Hydrogen is within acceptable limits. It also has the facility to store past data in its large memory.
It can be connected to a PC for downloading data and printouts of results can be obtained.
Archived Data can be retrieved and ISO Procedures followed as required.
Density index analyzer is a visual indicator which comprehensively reflects the purity of metals
and then detects the cleanliness of molten aluminum (gas content, dross content). The aluminum
alloy density index analyzer is used to measure the density of aluminum alloy samples before casting
and quantitatively detect the actual purity (density) of aluminum alloy samples, thus accurately and
quantitatively reflecting the comprehensive influence of hydrogen and various slags in molten aluminum
on aluminum alloy castings to determine the effect of molten aluminum refinement.
2. Analyzer Features
• The aluminum alloy density index analyzer is an ideal and practical way to evaluate the effect of degassing
and refinement, the quality of molten aluminum and the performance of the smelting technology.
• High analysis speed. In the field environment, it just takes 7 minutes to analyze the quality of molten aluminum.
• The aluminum alloy density index analyzer judges the quality of molten aluminum by magnifying defects of molten
aluminum, so it can be used to inspect the quality of molten aluminum more precisely and accurately.
• Detection quantification. It can eliminates the ambiguity and uncertainty of the results achieved by the conventional
sample solidification state method and sample section state observation method.
• Eliminating alloy effect. Alloy types must be made clear when the conventional decompression density method is
used to inspect the quality of molten aluminum, whereas the density calculation method to eliminate the effect of various alloys.
• The vacuum cover is equipped with a high-temperature-resistant, high-strength quartz glass observation window,
which can be visualized the solidification of the aluminum liquid.
• Data is calculated and recorded automatically. This process is controlled by a microprocessor.
• The equipment is provided with a data printer, which can print all measured data about the vacuum density, atmospheric
pressure density and density index.
• With a communication interface, it can be conveniently connected to the system network for collection and
transmission of network data.
• The data can be read by an SD card and then processed statistically on a computer.
3. Technical Specification
|
Total Power |
<500w |
|
Power Supply |
220v AC/50Hz |
|
Ultimate vacuum (relative to 1 standard atmosphere) |
-0.099MPa |
|
Adjusting range of vacuum degree |
0-0.099MPa |
|
Control accuracy of vacuum degree |
±1 kPa |
|
Sample making time |
<5min |
|
Time to reach ultimate vacuum |
≤1min |
|
Maximum allowable temperature |
100℃ |
|
Measured accuracy of detection density index value |
<0.2 |
|
Repeatability of measured density index value |
<0.2 (Note: equipment detection accuracy) |
|
Maximum measurement range of electronic balance |
500g |
|
Measurement accuracy of balance |
0.001g |
|
Measurement repeatability precision of balance |
±0.001g |
|
Response time of balance measurement |
≤2S |
4. Models
| Type | CQY-010 | CQY-010A | CQY-011 | CQY-011A |
DIA |
5. Picture Show
6. Company Profile
-- Established in January 2003, and now has 56 employees
-- Sales of 50 million RMB in 2021
-- Focus on one industry -- "aluminum casting"
-- Has a complete product line of aluminum casting equipment, all products are independent research
and development, manufacturing
-- aluminum melting and holding, transportation, ladle preheating, aluminum liquid refining, aluminum liquid
hydrogen measurement, until aluminum solution aging treatment equipment
7. Our Strengths
8. FRQ
Q1: I know nothing about this machine, what kind of machine I should choose?
Very easy. We will email you an inquiry form for making sure your real need. Or just tell us what you want to do by
using this machine, then let us give you perfect solutions and suggestions.
Q2: When I get this machine, but I don’t know how to use it. What should I do?
We will send pictures or video and English manual with the machine. If you still have some doubts, we can talk by
Telephone/ Skype / Whatsapp / Weichat/ E-mail.
Q3: If some problems happen to this machine during warranty period, what should I do?
We will supply free parts during machine warranty period if machine have some problems (except spare parts).
While we also supply free life long after-sales service. So any doubts, just let us know, we will give you solutions.
