Product Details:
|
| Name: | CQY 010A Hydrogen Analyzer For Molten Aluminum Quality Detecter For Die Casting Area | Size: | Standarded |
|---|---|---|---|
| Test Time: | 5 Minutes | Color: | Silver |
| Voltage: | 380V | Weight: | 120KG |
| Material: | Iron Steel | ||
| High Light: | 660MM Hydrogen Analyzer,380V Hydrogen Analyzer,hydrogen gas analyser chest type oem |
||
CQY 010A Hydrogen Analyzer for Molten Aluminum Quality Detecter for Die Casting Area
Molten Aluminum Quality Detecting Hydrogen Analyzer
1. Hydrogen Analyzer Genernal Instruction
The hydrogen analyzer, which works on the Straube-Preiffer test principle (decompression solidification test method),
is used to qualitatively measure the content of hydrogen in molten aluminum. A decompression solidification test is
conducted to make a solidification sample of molten aluminum under the conditions of decompression (a vacuum
degree determined according to the technological requirements). Subsequently, the sample is analyzed by various
methods to qualitatively determine the content of hydrogen in molten aluminum in an indirect way. It can be used for
quality control during aluminum alloy casting and for smelting detection.
2. Hydrogen Analyzer Usage Condition
---There is no conductive dust, explosive gas and corrosive gas that can seriously damage metal and insulation.
All electrical installations should not be damaged by physical and chemical operations (eg, thermal effects of the
environment, moisture, etc.) during normal operation.
---Indoor use.
3. Hydrogen Analyzer Mainly Parts
| Item | Type | Name | Qty | Mark |
| Main Engine | ||||
| 1 | CQY-010A | Hydrogen Analyzer | 1 | |
| Including: Vacuum System, Frame and Control System and so on | ||||
| Density Reading Part | ||||
| 2 | MP | Density Balance | 1 | |
| Including: Vacuum system, frame and electrical control system | ||||
| Accessories and Tools | ||||
| 3 | Density Measuring Device | 1 set | ||
| 4 | Nickel Crucibles | 2 pcs | Spare parts | |
| 5 | Crucible Plier | 1 pcs | ||
| 6 | O Type Rubber Sealing Rings | 5 pcs | Spare parts | |
| 7 | Heat Insulation Pad | 4 pcs | Spare parts | |
| 8 | Glass Audition | 1 pcs | ||
| Technical Documents | ||||
4. Hydrogen Analyzer Types
| Type | CQY-010 | CQY-010A | CQY-011 | CQY-011A |

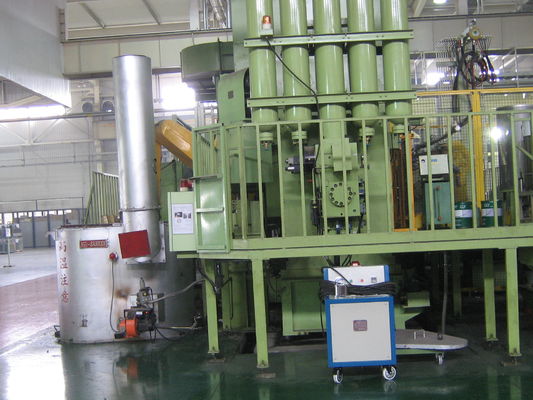

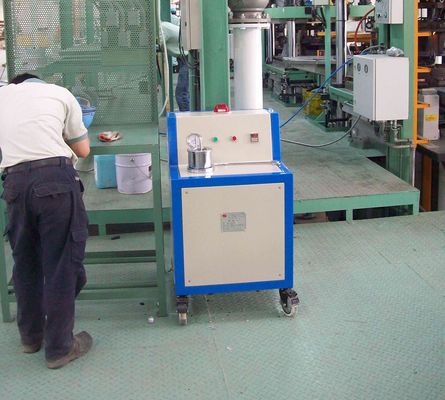

5. Reference Pictures
6. Hydeb Profile
-- Established in January 2003, and now has 56 employees
-- Sales of 50 million RMB in 2020
-- Focus on one industry -- "aluminum casting"
-- Has a complete product line of aluminum casting equipment, all products are independent research
and development, manufacturing
-- aluminum melting and holding, transportation, ladle preheating, aluminum liquid refining, aluminum liquid
hydrogen measurement, until aluminum solution aging treatment equipment
