Product Details:
|
| Product Name: | CQY 011A Blue Easy Operation Hydrogen Analyzer For Molten Aluminum Quality Detecter | Warranty Time: | 1 Year |
|---|---|---|---|
| Color: | Blue | Voltage: | 380V |
| Size: | Standarded | Raw Material: | Iron Steel Shell |
| High Light: | 380V online gas analyzer,online gas analyzer for Aluminum,Easy Operation hydrogen gas purity analyzer |
||
CQY 011A Blue Easy Operation Hydrogen Analyzer for Molten Aluminum Quality Detecter
Molten Aluminum Quality Detecting Hydrogen Analyzer
1. Application
The analysis of Hydrogen in Molten Aluminium is important and essential due to the fact that Hydrogen has high affinity
to get absorbed in Molten Aluminium. At the same time, when Aluminium solidifies, more or less all the dissolved Hydrogen
is released. As Hydrogen gas leaves the solidifying metal, it leaves tracks in the metal in the form of porosity.
Such porous Aluminium castings are not acceptable in the industry for obvious reasons.
To avoid this kind of porosity, it is important to degas the metal before it is poured into moulds for solidifying.
It is therefore important to determine the extent of Hydrogen present in liquid Aluminium.
The hydrogen analyzer, which works on the Straube-Preiffer test principle (decompression solidification test method),
is used to qualitatively measure the content of hydrogen in molten aluminum. A decompression solidification test is
conducted to make a solidification sample of molten aluminum under the conditions of decompression (a vacuum degree
determined according to the technological requirements). Subsequently, the sample is analyzed by various methods to
qualitatively determine the content of hydrogen in molten aluminum in an indirect way. It can be used for quality control
during aluminum alloy casting and for smelting detection.
2. Using Envrionment
---There is no conductive dust, explosive gas and corrosive gas that can seriously damage metal and insulation. All electrical
installations should not be damaged by physical and chemical operations (eg, thermal effects of the environment, moisture, etc.)
during normal operation.
---Indoor use.
3. Composition
| Item | Type | Name | Qty | Mark |
| Main Engine | ||||
| 1 | CQY-011A | Hydrogen Analyzer | 1 | |
| Including: Vacuum System, Frame and Control System and so on | ||||
| Density Reading Part | ||||
| 2 | MP | Density Balance | 1 | |
| Including: Vacuum system, frame and electrical control system | ||||
| Accessories and Tools | ||||
| 3 | Density Measuring Device | 1 set | ||
| 4 | Nickel Crucibles | 2 pcs | Spare parts | |
| 5 | Crucible Plier | 1 pcs | ||
| 6 | O Type Rubber Sealing Rings | 5 pcs | Spare parts | |
| 7 | Heat Insulation Pad | 4 pcs | Spare parts | |
| 8 | Glass Audition | 1 pcs | ||
| Technical Documents | ||||
4. Models
| Type | CQY-010 | CQY-010A | CQY-011 | CQY-011A |

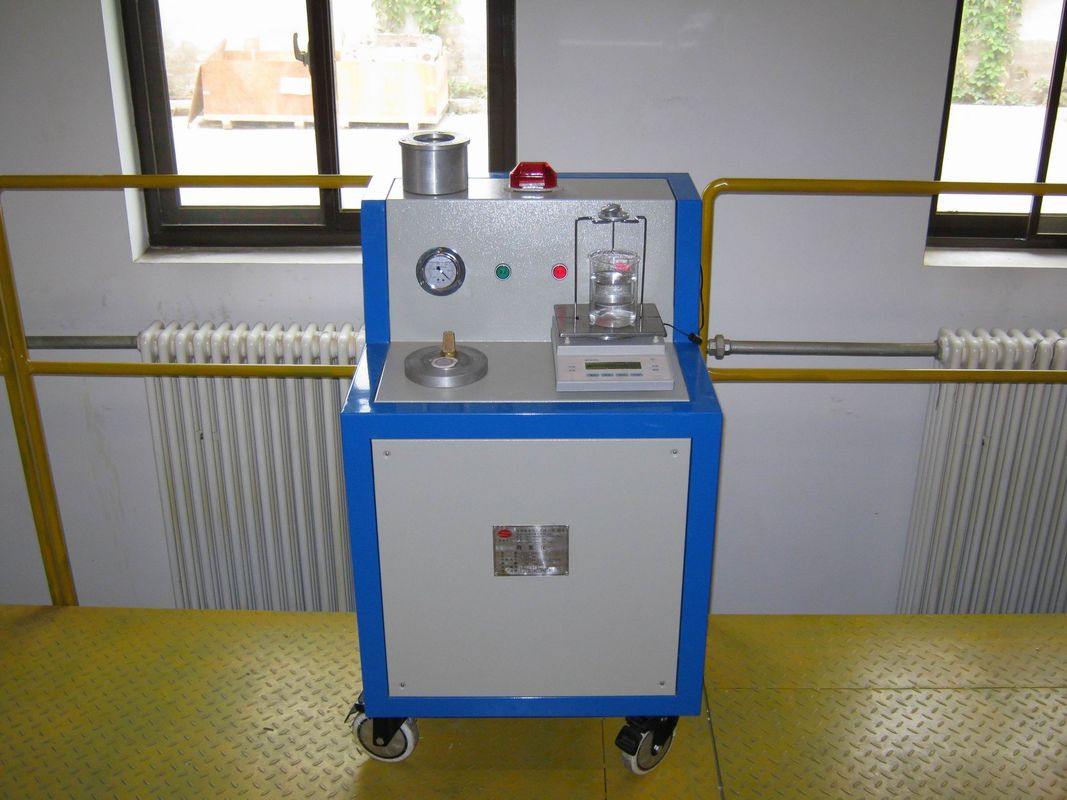

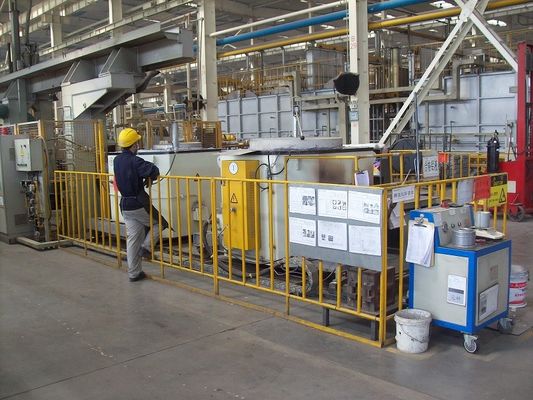

5. Pictures
6. Company Introduce
-- Established in January 2003, and now has 56 employees
-- Sales of 50 million RMB in 2021
-- Focus on one industry -- "aluminum casting"
-- Has a complete product line of aluminum casting equipment, all products are independent research
and development, manufacturing
-- aluminum melting and holding, transportation, ladle preheating, aluminum liquid refining, aluminum liquid
hydrogen measurement, until aluminum solution aging treatment equipment
7. Our Clients
