Molten Aluminium Transfer
Molten Aluminium Transfer 0

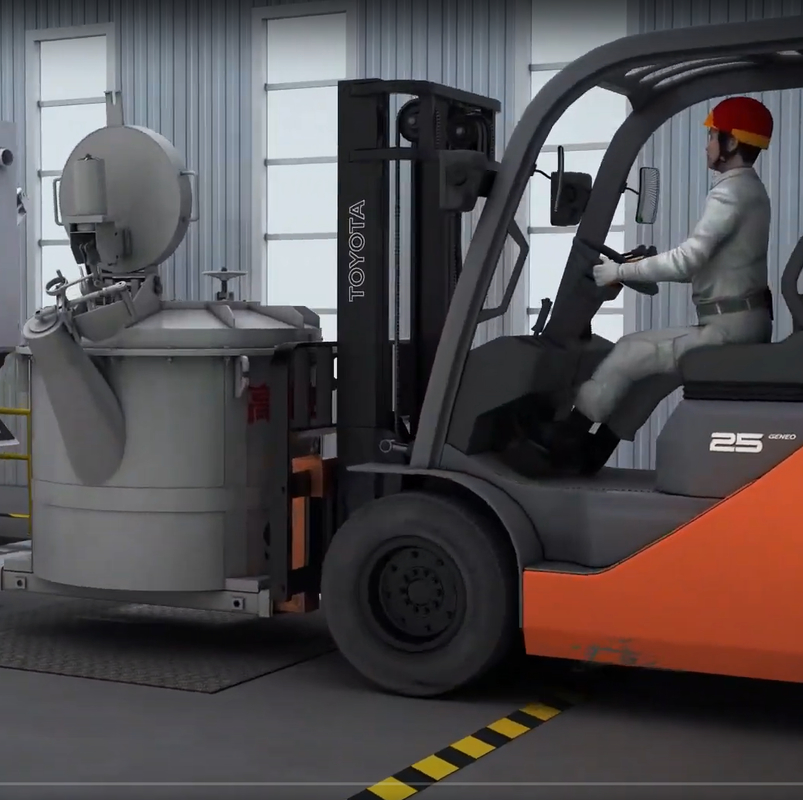

Transferring molten aluminum over long distances by ladle (also called crucible or pot) is one of the most challenging and hazardous operations in the industry. While generally avoided when possible, it becomes necessary in large foundry complexes or when supplying remote casting stations.
Core Challenges of Long-Distance Ladle Transfer
Transporting molten metal (~750°C / ~1380°F) over long distances amplifies all risks associated with molten metal handling:
  • Heat Loss and Skull Formation: Aluminum solidifies rapidly below its melting point (660°C), forming a "skull" that reduces ladle capacity and requires labor-intensive removal.
  • Safety Hazard: Increased risk of catastrophic spills causing severe burns, fires, and equipment damage due to longer exposure to potential obstacles and operator fatigue.
  • Metal Quality Degradation: Prolonged air exposure increases oxidation, forming dross that reduces clean metal yield and causes casting defects.
  • Hydrogen Pickup: Molten aluminum absorbs hydrogen from atmospheric moisture during transfer, leading to porosity in final castings.
  • Physical Strain and Logistics: Heavy loads (1000 lb capacity ladles weigh over 1500 lbs) require powerful, reliable transport equipment.

Essential Equipment for Long-Distance Transfer
Equipment Description and Purpose
Specialized Ladle/Crucible
  • Heated & Insulated: Gas-fired or electrically heated to maintain temperature and prevent skulling
  • Lid/Cover: Refractory-lined to minimize heat loss and oxidation while acting as spill barrier
  • Robust Design: Steel construction with thick, high-quality refractory lining
Dedicated Transport Vehicle
  • Purpose-built ladle carriers or heavy-duty lowboy trailers
  • Features include low center of gravity, multiple axles, slow speeds, excellent brakes, and clear operator visibility
Pre-Defined and Prepared Route
  • Clear, marked pathway free of obstructions
  • Level, paved surface without potholes or bumps
  • Minimal cross-traffic from other vehicles or personnel

Critical Safety Protocols
  • Do Not Overfill: Ladles should never exceed 80-85% capacity to prevent splash-out
  • Secure the Lid: Must be properly placed before any movement
  • Travel Speed: Maintain very slow, controlled speed (walking pace)
  • Spill Preparedness: Route must be clear of flammable materials and standing water; keep sand or dry materials available for containment
  • Personal Protective Equipment (PPE): Mandatory for all personnel including face shields, FR clothing, aluminized aprons, and safety boots
  • Communication: Operator must maintain clear line of sight or radio contact with spotter
Industry Best Practice: Avoid When Possible
Due to high risks and costs, alternatives to long-distance molten metal transfer are preferred:
  • Satellite Melting: Smaller holding furnaces closer to casting points
  • Launder Systems: Heated, refractory-lined channels for fixed in-plant transfer
  • Transporting Solid Ingot: Safer and often more efficient to transport solid aluminum for remelting at point of use
While technically possible, long-distance transfer of molten aluminum by ladle is a high-risk operation reserved for specific scenarios where alternatives aren't viable. Success depends on specialized equipment, meticulous planning, and strict safety protocols.
