Product Details:
|
Product Key Words: | XCP230A Fixed On The Floor Blue Color Graphite Rotor & Shafts Rotary Degassing Equipment | Rotor Material: | Graphite |
---|---|---|---|
Warranty Time: | 1 Year | Colour: | Blue |
MOQ: | 1 Set | Refining Gas: | High Purity Nitrogen Or Argon |
Granularity: | ≤5 Mm | Degassing Time: | 0~99 Adjustable |
Highlight: | 5 mm Rotary Degassing Unit,Rotary Degassing Unit 30 L/min,aluminum refining process machine OEM |
XCP230A Fixed On The Floor Blue Color Graphite Rotor & Shafts Rotary Degassing Equipment
Fixed on the Floor with Graphite Rotor and Shafts Rotary Degassing and Fluxing Equipment
1. Degassing Equipment Technical Data
Item | Data | Mark | |
Refining Gas | Purity % | ≥99.996 | High Purity Nitrogen or Argon |
Moisture ppm | ≤ 3 | ||
O2 ppm | ≤ 5 | ||
Pressure MPa | 0.1-0.6 Adjustable | ||
Flow L/min | 15~30 Adjustable | ||
Refining Flux | Granularity mm | ≤5 | |
Powder Spraying g/min | 0~350 Adjustable | ||
Power | Phrase | 3 | |
Voltage V | 380±10% | ||
Frequency Hz | 50 | ||
Total Power kW | < 3 | ||
Motor for Rotary Shaft Rotating | Power kW | 1.1 | For driving graphite rotation shaft to rotate |
Motor for Hanger Arm Lifting up & down | Power kW | 1.1 | For Hanger Arm Lifting up & down |
Motor for Arm Rotation | Power kW | 0.4 | For driving the hanger arm |
rotation | |||
Motor for Filling Fluxing Device | Power kW | 0.12 | For filling refining flux |
Graphite Rotor Speed r/min | 0-600 | VVVF adjustable | |
Refining Degassing Time min | 0~99 | Time Adjustable | |
Graphite Shaft Size | Dia. Φ mm | 80 | |
Length mm | According the design | ||
Graphite Rotor Size | Dia. Φ mm | According the design | |
Length mm | |||
Graphite Baffle Size | Length mm | ||
Width mm | |||
Thickness mm | |||
Number of Graphite Baffle | 1 | ||
Weight kg | About 600 | According to actual production |
2. Hydeb Clients
3. Degassing Equipment Application
• Aluminium foundries
• Aluminium holding and transfer vessels (crucibles, furnaces, ladles)
4. Degassing Equipment Benefits
• Continuous operation
• Accurate flux injection under the metal level
• Programmable Logic Controller (PLC) monitors and controls operation
• Variable speed electric motor
• Auto-timer and flashing light notify the operator when the cycle is done
• Automatic mode settings provide repeatable results and efficiency
• Efficiently uses flux, nitrogen or argon
• Process gas flow meter
• Self-checking diagnostics
• Password protected cycle parameters
• Degassing system can rotate around the support column (optional)
• Cooling air blower prevents overheating
5. Degassing Equipment Models
Structure | Stationary type | Mobile Type | Suspending Type | Stationary type |
Type | XCP230-1 | XC210-1 | XCP100-1 |
XCP230A |
6. Hydeb Introduce
-- Hydeb was established in January 2003, and now has 56 employees
-- Sales of 50 million RMB in 2020
-- Focus on one industry -- "aluminum casting"
-- Has a complete product line of aluminum casting equipment, all products are independent research
and development, manufacturing
-- aluminum melting and holding, transportation, ladle preheating, aluminum liquid refining, aluminum liquid
hydrogen measurement, until aluminum solution aging treatment equipment

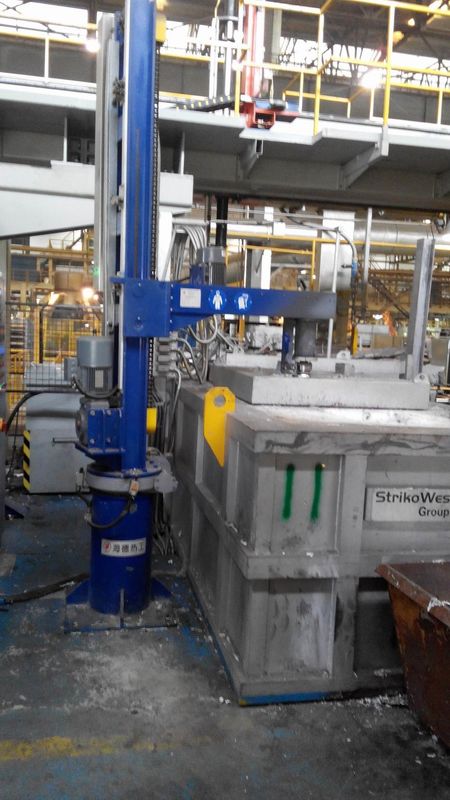

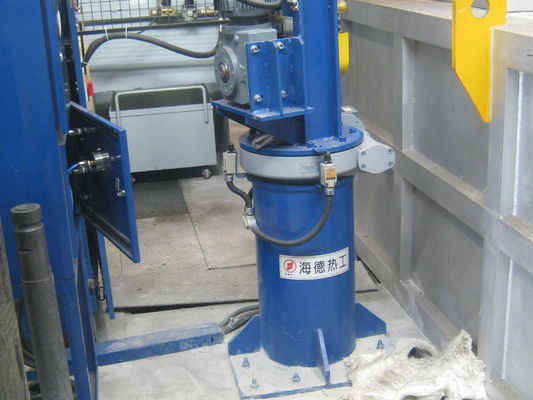

7. Reference Pictures
8. Our Strengths
