Aluminum Furnace Holder Aluminum Melting And Holding Furnace ±3°C Temperature Uniformity

Large Image : Aluminum Furnace Holder Aluminum Melting And Holding Furnace ±3°C Temperature Uniformity

Product Details:

Place of Origin:	Shandong, China
Brand Name:	HYDEB
Certification:	CE certificate, ISO
Model Number:	GRL-500

Payment & Shipping Terms:

Minimum Order Quantity:	1 SET
Price:	15000USD/set
Packaging Details:	Wooden box
Delivery Time:	2 months
Payment Terms:	By T/T
Supply Ability:	1000 sets/ year

Contact Now

Aluminum Furnace Holder Aluminum Melting And Holding Furnace ±3°C Temperature Uniformity

Description

Control System:	PLC	Capacity:	500 Kg
Temperature Uniformity:	±3°C	Material:	Carbon Steel
Product Name:	Aluminum Holding Furnace	Voltage:	220V/380V
Size:	Customized	Melting Furnace Power (KW):	75
Melting Rate:	150	Holding Furnace Power (kw):	45
Highlight:	Aluminum Furnace Holder , Aluminum Melting And Holding Furnace , Electric Immersion Aluminum Holding Furnace

Product Description:

Aluminum Furnace Holder Aluminum Melting And Holding Furnace ±3°C Temperature Uniformity 0

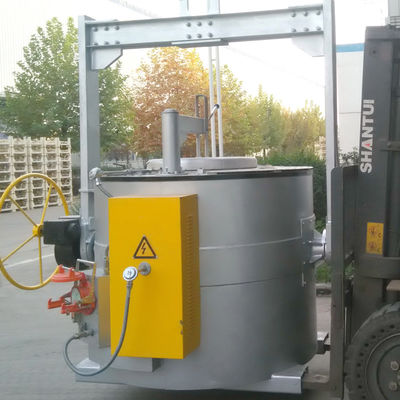

Induction furnace for melting metals Aluminum Forklift type aluminum melting and holding furnace

It is mainly used for heat preservation of aluminum alloy melt, and is suitable for all processes such as degassing before casting aluminum, alloy preparation, uniform structure and temperature adjustment. Energy sources can be electricity and natural gas. According to the requirements of different stations, forklift handling.

Features:

◆ Can obtain higher quality molten aluminum. Ensure accurate temperature, uniform composition and low hydrogen content of molten aluminum.

◆ Flexible production organization. The crucible can be replaced at any time to produce different types of alloys without polluting the molten aluminum.

◆ Low burning loss of aluminum. The aluminum in the crucible is heated by the heat conduction of the crucible, without local high temperature, reducing oxidation loss and high temperature volatilization, and reducing the burning loss of aluminum to less than 1.2%. ◆ The bottom of the furnace is made of casting material through integral casting. In addition, there is a water leak at the bottom of the furnace. Once the crucible breaks, the molten aluminum can flow out through the water leak, reducing the risk of damage to the furnace body.

◆ The temperature of the furnace and molten aluminum is controlled by a series loop to ensure sufficient heating efficiency and prevent the furnace from overheating.

◆ The thermocouple protection tube of molten aluminum is made of silic
on nitride material, which has good thermal conductivity, corrosion resistance of molten aluminum, thermal shock resistance and high strength. The tube can be dipped directly into molten aluminum to measure its temperature. Its service life is more than 2 years.

◆ Adopt multiple safety protection methods such as aluminum liquid over-temperature alarm, furnace cavity over-temperature alarm, crucible leakage alarm, etc.

Technical Parameters:

Product Name:	Aluminum Holding Furnace
Capacity:	500Kg
Heating Source:	Electricity
After Sale:	1 Year
Heating Element:	Molybdenum Disilicide

Control System:	PLC
Insulation:	Ceramic Fiber
Material:	Aluminum
Surface Treatment:	Sand Blasting

Also known as Aluminum Keeping Furnace, Aluminum Retaining Heater, Aluminum Holding Heater.
