700KG 0.20MPa Electric Dosing Aluminum Holding Furnace For Aluminium Melting

700KG 0.20MPa Electric Dosing Aluminum Holding Furnace For Aluminium Melting
700KG 0.20MPa Electric Dosing Aluminum Holding Furnace For Aluminium Melting 700KG 0.20MPa Electric Dosing Aluminum Holding Furnace For Aluminium Melting

Large Image :  700KG 0.20MPa Electric Dosing Aluminum Holding Furnace For Aluminium Melting

Product Details:
Place of Origin: China
Brand Name: Hydeb
Certification: CE,ISO9001,ISO14001,IS45001,High-tech Enterprise,Intellectual Property,Patents
Model Number: HD700
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $ 50000-$100000/set
Packaging Details: Wooden Case or Pallet
Delivery Time: 50 working days
Payment Terms: T/T
Supply Ability: 20 sets per year

700KG 0.20MPa Electric Dosing Aluminum Holding Furnace For Aluminium Melting

Description
Key Words: 700KG Dosing Holding Furnace For Aluminum Alloy Die Casting Machines Dosing Accuracy: <± 1.5%
Raw Material: Iron Steel & Insulation Layer Color: Grey
Capacity: 700KG Warranty Time: 1 Year
Usage: Aluminum Alloy Die Casting Machine Size: Customized
High Light:

700KG Aluminum Holding Furnace

,

0.20MPa Aluminum Holding Furnace

,

Dosing electric furnace for aluminium melting

700KG Dosing Holding Furnace For Aluminum Alloy Die Casting Machines



Aluminum Alloy Die Casting Peripheral Dosing Holding Furnace



1. Dosing Furnace Introduce



The dosing furnace is supplied by gas pressurization and an expert-based dosing calculation procedure is adopted,
realizing the
quantification of aluminum supply and high-efficiency production.


The dosing furnace is a new-type holding furnace manufactured by the company using our self-developed “dosing
control technology” based on years of experience in producing low pressure holding furnaces and automatic liquid
surface compression systems.



The dosing holding furnace is mainly used for maintaining temperature of molten aluminum and fixed supply of
aluminum during aluminum die casting.



2. Dosing Furnace Advantages



  •  The high consistency of casting weight, casting flow rate, casting speed, casting temperature and casting time
     and other parameters prevents various casting factors from affecting casting quality.

  •  It can be equipped with an in-line air brick degassing and refining device to continuously provide high-quality molten
     aluminum.

  •  The molten aluminum outflows from the lower part of the molten pool, not mixed with oxidation slags on its surface.

  •  High dosing accuracy, the dosing accuracy<± 1.5% (by weight).

  •  The furnace is closed heating, minimizing the oxidation loss of molten aluminum to≤0.1%.

  •  The molten aluminum is of high quality owing to less hydrogen absorbed.



3.  Main Parameter for Dosing Furnace



Dosing furnace bath capacity 500 Kg (AL)
Single aluminum tapping volume 1-150 kg
Dosing accuracy <± 1.5%
Maximum allowable pressure 0.20 MPa
Rated temperature of furnace chamber 900℃
ontrol precision of molten aluminum temperature ±2℃
Molten aluminum heating rate ≥0.5℃/min
Temperature rise in the furnace shell surface ≤45℃

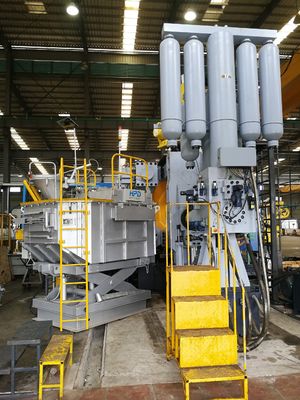

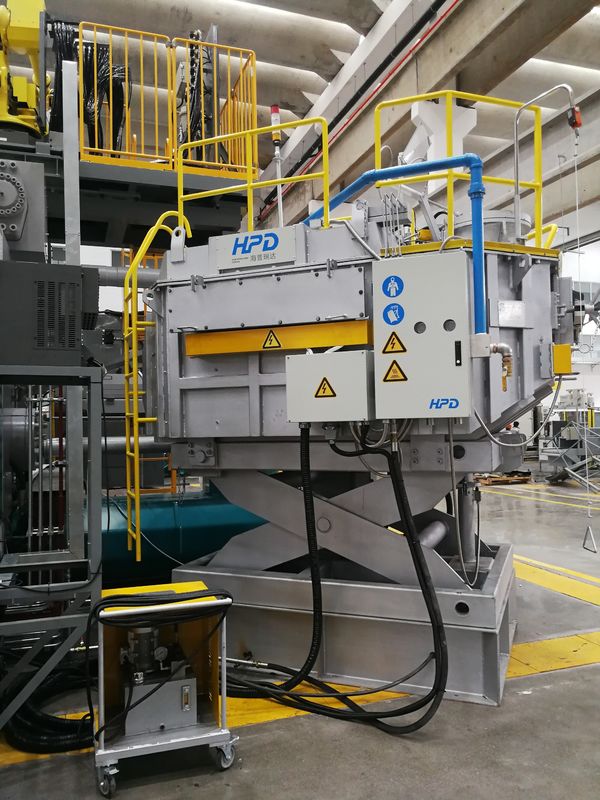

4. Working At Site



700KG 0.20MPa Electric Dosing Aluminum Holding Furnace For Aluminium Melting 0



5. Our Certification

700KG 0.20MPa Electric Dosing Aluminum Holding Furnace For Aluminium Melting 1

6. Our Clients



700KG 0.20MPa Electric Dosing Aluminum Holding Furnace For Aluminium Melting 2



7.  CE & ISO



700KG 0.20MPa Electric Dosing Aluminum Holding Furnace For Aluminium Melting 3

700KG 0.20MPa Electric Dosing Aluminum Holding Furnace For Aluminium Melting 4
