Box Type In-line Rotary Degassing Unit with Over 60% Degassing Efficiency 3.6-3.96 g/CM3 Density for Refractory Applications

Box Type In-line Rotary Degassing Unit with Over 60% Degassing Efficiency 3.6-3.96 g/CM3 Density for Refractory Applications
Box Type In-line Rotary Degassing Unit with Over 60% Degassing Efficiency 3.6-3.96 g/CM3 Density for Refractory Applications
Box Type In-line Rotary Degassing Unit with Over 60% Degassing Efficiency 3.6-3.96 g/CM3 Density for Refractory Applications Box Type In-line Rotary Degassing Unit with Over 60% Degassing Efficiency 3.6-3.96 g/CM3 Density for Refractory Applications Box Type In-line Rotary Degassing Unit with Over 60% Degassing Efficiency 3.6-3.96 g/CM3 Density for Refractory Applications Box Type In-line Rotary Degassing Unit with Over 60% Degassing Efficiency 3.6-3.96 g/CM3 Density for Refractory Applications Box Type In-line Rotary Degassing Unit with Over 60% Degassing Efficiency 3.6-3.96 g/CM3 Density for Refractory Applications Box Type In-line Rotary Degassing Unit with Over 60% Degassing Efficiency 3.6-3.96 g/CM3 Density for Refractory Applications Box Type In-line Rotary Degassing Unit with Over 60% Degassing Efficiency 3.6-3.96 g/CM3 Density for Refractory Applications

Large Image :  Box Type In-line Rotary Degassing Unit with Over 60% Degassing Efficiency 3.6-3.96 g/CM3 Density for Refractory Applications

Product Details:
Place of Origin: Shandong, China
Brand Name: HYDEB
Certification: CE certificate, ISO
Model Number: LDU
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: 10000USD/set
Packaging Details: Wooden box
Delivery Time: 2 months
Payment Terms: By T/T
Supply Ability: 1000 sets/ year
Contact Now

Box Type In-line Rotary Degassing Unit with Over 60% Degassing Efficiency 3.6-3.96 g/CM3 Density for Refractory Applications

Description
Application: Refractory Processing Service: Bending, Welding, Cutting, Punching, Decoiling
Keywords: Aluminium Purification Launder Type In-line Rotory Color: Customized
Degassing Efficiency: Over 60% Denisty: 3.6-3.96 G/CM3
Highlight:

Plate Type Aluminum Holding Furnace

,

3500kg Aluminum Holding Furnace

,

950C oil fired aluminium melting furnace

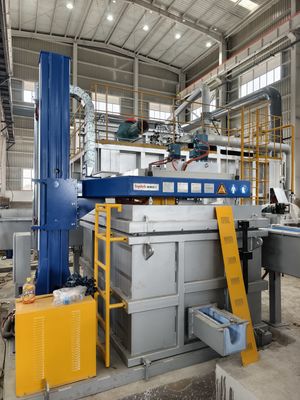

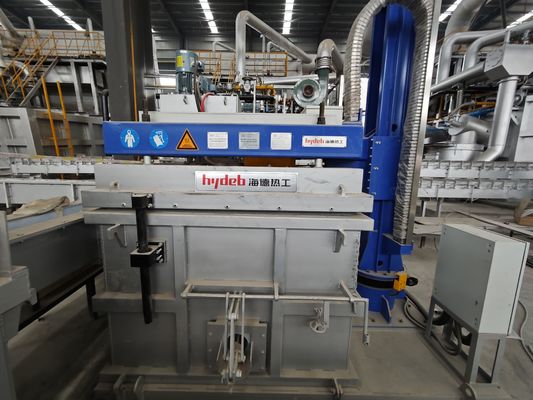

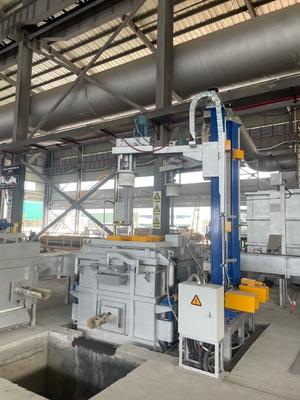

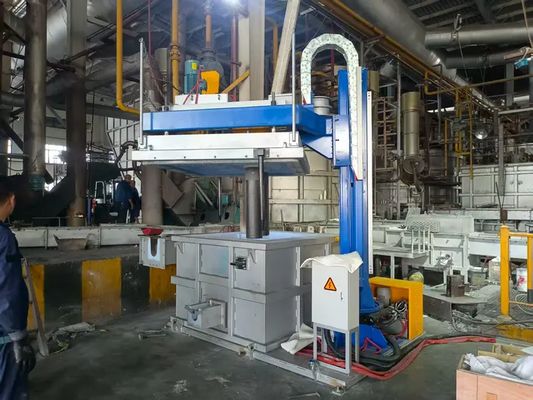

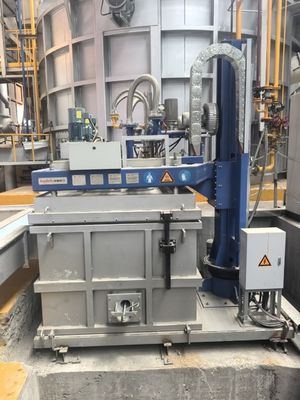

Box Type In-line Rotary Degassing Unit
Hydrogen Removal • Impurity Removal • Alkali Removal
One Of The Most Effective Degassing Technologies For Molten Aluminium
The first choice for high-end aluminium castings.
The rotor is rotated in the box to break the inert gas, forming a large number of dispersed bubbles into the molten aluminium. As the gas floats, hydrogen and oxidized slags in the molten aluminium are brought to the surface, achieving degassing and refining.
The BDU Box Type In-line Rotor Degassing Unit features improvements in box sealing, spare parts service life, and anti-turbulence on the molten aluminium surface. These enhancements ensure safe, high-efficiency, continuous, stable, and low-cost operation.
Box Type In-line Rotary Degassing Unit with Over 60% Degassing Efficiency 3.6-3.96 g/CM3 Density for Refractory Applications 0
Equipment Features
  • Optimum dispersion of the process gas in the molten aluminium
  • Maximum contact area and time between dispersing bubbles and molten aluminium
  • Completely sealed box ensures stable inert gas environment
  • Smooth molten aluminium surface without turbulent flow effect
  • Easy installation and maintenance
  • Simple replacement of pre-fired forming degassing box lining minimizes downtime
  • Low maintenance and operation costs
  • Long service life of heater and heater protection tubes
  • Long service life of rotor and shaft
  • Cooling gas without rotor rotating main shaft
BDU Main Types & Parameters
Type Number of Rotors Max. Flow Rate (T/H) Max. Gas Consumption (L/min) Heating Power (KW) Number of Heaters
BDU-5 1 7 70 1
BDU-15 1 15 90 1
BDU-30 2 30 140 2
BDU-50 2 50 160 2
BDU-70 3 70 180 3
Notes: Customizable according to customer needs
1. Three-chamber/four-chamber Degasser Unit
2. Optional degassing box tilting function, and whole degassing box tilting function (including the external flow launder)
3. The number of heaters can be selected according to different products
