Product Details:
|
| Voltage V: | 380±10% | Pressure MPa: | 0.1-0.6 Adjustable |
|---|---|---|---|
| Flow Rate L/min: | ≥0.4 | Number Of Phases: | 3 |
| Flow Rate M3/h: | ≥0.5 | Refining Degassing Time Min: | 0～99 |
| Graphite Rotor Speed R/min: | 100－600 | Total Power KW: | 3 |
| High Light: | 3KW Graphite Degassing Rotor,Refined Hydrogen Graphite Degassing Rotor,Refined Hydrogen Graphite Degassing Rotor Shaft |
||

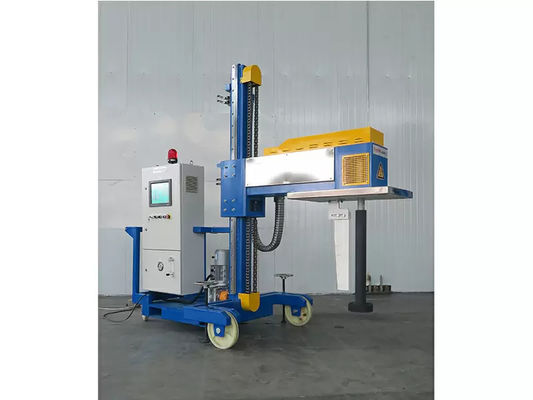

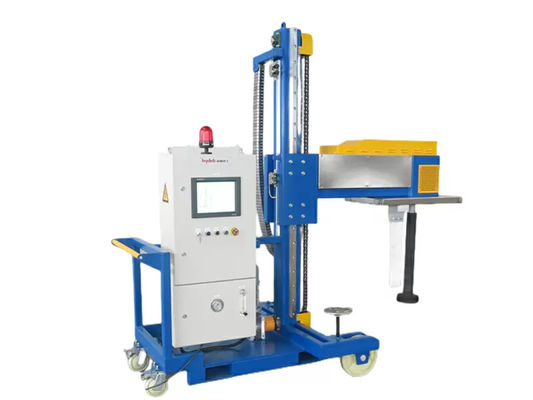

The XC (P) 200 type rotary degassing and fluxing equipment is designed to efficiently refine molten aluminum and make it free from impurities. It works by using a motor to rotate a graphite rotor that is immersed in a molten aluminum crucible or ladle.
During the process, high-purity nitrogen or argon is injected into the molten aluminum along with a fluxing agent and the mixture is agitated by the rotation of the rotor. The nitrogen and fluxing agent work together to trap impurities while the rotation of the rotor removes them from the molten aluminum.
This process helps to achieve degassing, slag removal, and refining of the molten aluminum. The equipment is an essential tool for maintaining high-quality in the production of aluminum products.
By using this equipment, the refining process of molten aluminum becomes more efficient and effective. The rotation of the graphite rotor increases the surface area of the mixture and ensures that the nitrogen and the fluxing agent effectively remove impurities that could be harmful to the quality of the final product.
The use of high-purity nitrogen or argon creates a controlled environment within the molten aluminum, ensuring that the refining process is optimized. The XC (P) 200 type rotary degassing and fluxing equipment is designed to remove impurities such as hydrogen, alkali metals, and non-metallic inclusions that negatively impact the quality of aluminum products.
In conclusion, the XC (P) 200 type rotary degassing and fluxing equipment is a crucial tool in the refining process of molten aluminum. Its use ensures high-quality aluminum products by removing impurities and creating a controlled environment during the refining process.
The XC (P) 200 type rotary degassing and fluxing equipment is a valuable asset in the production of high-quality aluminum products.
Its innovative design features a motor that rotates a graphite rotor immersed in a molten aluminum crucible or ladle, along with the injection of high-purity nitrogen or argon and fluxing agent to refine the molten aluminum.
The agitation caused by the rotation of the rotor creates a controlled environment where impurities such as hydrogen, alkali metals, and non-metallic inclusions are removed from the molten aluminum.
The XC (P) 200 type rotary degassing and fluxing equipment is the ideal tool for maintaining the quality of aluminum products by ensuring that impurities are effectively removed during the refining process.
Our equipment offers an effective solution for removing gases, such as hydrogen, and oxides from molten aluminum. Through our combined gas refining and flux-refining process, we are able to achieve impressive results. Post-rotary injection, the hydrogen concentration in molten aluminum alloys drops to less than 0.1ml/100g, the pinhole degree reaches level 1, and the density is reduced to less than 1. Additionally, our process provides a stable and reliable effect.
At the same time, our equipment is designed to minimize metal loss. Proper flux-refining ensures that there is limited dross on the melt surface, and it is loose. The metal is rarely encased, and little metal is taken out during slag removal.
Our equipment provides a cost-effective refining solution, consuming less refining agent, while still maintaining a stable feeding process. We are committed to providing the most efficient solution possible, which is why we have included an anti-falling mechanism, a refining agent material level measuring, and an air channel leakage detector.
Our equipment is versatile and can execute multiple technological processes. When used with different functions of fluxes, it can achieve high-efficiency modification, degassing, and slag removal.
We understand the importance of maintaining a high temperature bearing and spindle. Our rotor bearing is a high-temperature bearing, allowing it to work continuously at temperatures up to 200°C without needing air-cooling.
Finally, our equipment is designed to be fully automatic, significantly improving site working conditions. We are committed to providing the highest quality equipment and service to meet the needs of our clients.
| Technical Parameter | Value |
|---|---|
| Product Name | Aluminum Foundry Degasser |
| Product Type | Degassing Liquid Machine |
| Material | Aluminium Alloy Degassing Liquid Machine |
| Pressure MPa | 0.1-0.6 Adjustable |
| O2ppm | ≤5 |
| Frequency Hz | 50 |
| Flow rate L/min | 15～30 Adjustable |
| Number of Phases | 3 |
| Refined gas Purity (%) | ≥99.996 |
| Flow rate m3/h | ≥0.5 |
| Moisture (ppm) | ≤3 |
| Voltage V | 380±10% |
| Refining degassing time min | 0～99 |
The equipment used for refining and degassing molten aluminum is designed to eliminate hydrogen and aluminum slag. The primary purpose of the process is to improve the purity of the molten aluminum and make it suitable for various applications.
The molten aluminum refining and degassing equipment can be used in a variety of settings, including Crucibles and Road Transfer Ladles. The equipment is instrumental in the refining treatment of molten aluminum.
Hydrogen is the primary gas that the equipment works to remove. If hydrogen is not removed from molten aluminum, it can cause a series of defects in the end product.
Oxides present in molten aluminum, such as aluminum slag, also need to be removed as they can negatively affect the quality of the metal. The refining and degassing equipment used for molten aluminum can ensure that the end product is of the highest quality, free from defects and impurities.
Our Aluminum Degassing Machine is designed to remove hydrogen gas from molten aluminum. It is equipped with advanced technology to ensure efficient and effective degassing.
We offer technical support and services for our Aluminum Degassing Machine, including:
Our team of experts is dedicated to providing excellent customer support and ensuring the optimal performance of our products. Contact us for more information on our technical support and services for the Aluminum Degassing Machine.
Q: What is the brand name of this product?
A: The brand name of this product is HYDEB.
Q: What is the model number of this product?
A: The model number of this product is XCP230-1.
Q: Where is this product manufactured?
A: This product is manufactured in Jinan, China.
Q: What certifications does this product have?
A: This product has ISO and CE certifications.
Q: What is the minimum order quantity for this product?
A: The minimum order quantity for this product is 1 set.
Q: What is the price of this product?
A: The price of this product is greater than 1000 USD per set.
Q: What are the packaging details for this product?
A: The packaging details for this product are wooden box.
Q: What is the delivery time for this product?
A: The delivery time for this product is 50-60 days.
Q: What are the payment terms for this product?
A: The payment terms for this product are 30% deposit and 70% balance before shipment.
Q: What is the supply ability for this product?
A: The supply ability for this product is 300 sets per year.
