Product Details:
|
| Graphite Rotor Speed R/min: | 100－600 | Flow L/min: | 15～30 Adjustable |
|---|---|---|---|
| Refining Degassing Time Min: | 0～99 | Total Power KW: | 3 |
| Number Of Phases: | 3 | O2ppm: | ≤5 |
| Flow Rate M3/h: | ≥0.5 | Voltage V: | 380±10% |
| High Light: | Adjustable Flow Aluminum Degassing Machine,30 L/min Aluminum Degassing Machine,15 L/min Aluminum Degassing Machine |
||

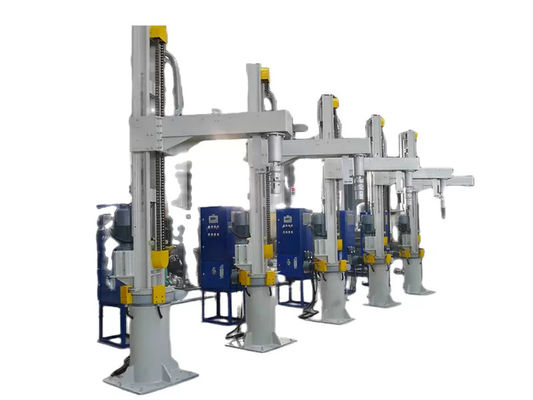

The XC (P) 200 type rotary degassing and fluxing equipment is a crucial tool for the aluminum industry, designed to effectively remove impurities from molten aluminum. This equipment is driven by a motor that rotates a graphite rotor within the molten aluminum crucible or ladle.
As it rotates, the equipment inputs high-purity nitrogen or argon, along with a fluxing agent, into the molten aluminum. These components react to the rotation of the graphite rotor and work together to degas, remove slag and refine the molten aluminum to a specified quality.
With this equipment, manufacturers of aluminum products can achieve an exceptionally high-quality final product that is free from impurities. The XC (P) 200 is an essential tool for any aluminum manufacturing operation and one that can significantly increase production efficiency and quality.
The equipment can effectively remove gases like hydrogen and oxides from molten aluminum, offering a combination of advantages from gas refining and flux-refining. Injecting the equipment into the rotation will reduce hydrogen concentration in molten aluminum alloys lower than 0.1ml/100g, level up the pinhole degree to level 1, bring down the density to less than 1, and accomplish a stable effect.
Through proper flux refining, there is less dross on the melt surface with low metal loss. Dross becomes loose and encases the metal rarely during slag removal. Refining agent consumption is low and stable feeding is ensured.
The equipment comes equipped with anti-falling mechanism, refining agent material level measuring, and air channel leakage detector. Multiple technological processes can be executed by using different functions of fluxes, providing high-efficiency modification, degassing, and slag removal.
The rotor bearing is high-temperature bearing and doesn't need to be air-cooled. The spindle can work without stop at a high temperature of 200°C. Armed with automatic operation, site working conditions are significantly improved.
| Degasser Alumina Product Technical Parameters | |
|---|---|
| Refined gas Purity (%) | ≥99.996 |
| Flow rate L/min | ≥0.4 |
| Flow rate m3/h | ≥0.5 |
| Moisture (ppm) | ≤3 |
| O2ppm | ≤5 |
| Pressure MPa | 0.1-0.6 Adjustable |
| Graphite rotor speed r/min | 100－600 |
| Voltage V | 380±10% |
| Refining degassing time min | 0～99 |
| Frequency Hz | 50 |
| Graphite Degassing Rotor And Shaft | |
| Nitrogen Degassing Machine |
Molten aluminum is often contaminated with gases, especially hydrogen, and oxides, such as aluminum slag. To address this issue, refining and degassing equipment has been developed to remove these impurities, resulting in higher quality and more consistent aluminum.

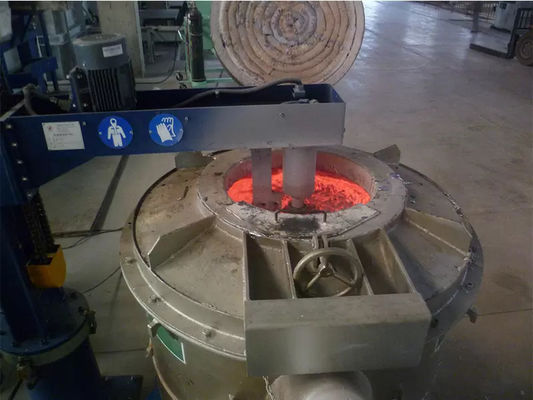

The equipment can be used in various applications, including refining treatment of molten aluminum in a crucible or road molten aluminum transfer ladle. The process involves passing the molten aluminum through the equipment, which removes the unwanted gases and oxides.
With this refining and degassing equipment, manufacturers are able to produce aluminum products that meet industry standards and customer expectations. Additionally, these improved products can lead to improved productivity and reduced manufacturing costs.
The Aluminum Degassing Machine product technical support and services include:
- Comprehensive installation and commissioning services
- Regular equipment maintenance and inspection services
- Troubleshooting and repair services
- Technical training and consultation services
- Spare parts and consumables supply services
- Upgrades and retrofit services to improve equipment performance and functionality
Q: What is the brand name of the Aluminum Degassing Machine?
A: The brand name of the Aluminum Degassing Machine is HYDEB.
Q: What is the model number of the Aluminum Degassing Machine?
A: The model number of the Aluminum Degassing Machine is XCP230-1.
Q: Where is the Aluminum Degassing Machine manufactured?
A: The Aluminum Degassing Machine is manufactured in Jinan, China.
Q: What certifications does the Aluminum Degassing Machine have?
A: The Aluminum Degassing Machine has ISO CE certification.
Q: What is the minimum order quantity for the Aluminum Degassing Machine?
A: The minimum order quantity for the Aluminum Degassing Machine is 1.
Q: What is the price of the Aluminum Degassing Machine?
A: The price of the Aluminum Degassing Machine is ＞1000USD/set.
Q: What are the packaging details for the Aluminum Degassing Machine?
A: The packaging details for the Aluminum Degassing Machine are wooden box.
Q: What is the delivery time for the Aluminum Degassing Machine?
A: The delivery time for the Aluminum Degassing Machine is 50-60 days.
Q: What are the payment terms for the Aluminum Degassing Machine?
A: The payment terms for the Aluminum Degassing Machine are 30%+70%.
Q: What is the supply ability of the Aluminum Degassing Machine?
A: The supply ability of the Aluminum Degassing Machine is 300 sets per year.
