Product Details:
|
| Flow Rate L/min: | ≥0.4 | Refined Gas Purity (%): | ≥99.996 |
|---|---|---|---|
| Flow L/min: | 15～30 Adjustable | Total Power KW: | 3 |
| Refining Degassing Time Min: | 0～99 | Number Of Phases: | 3 |
| Frequency Hz: | 50 | Graphite Rotor Speed R/min: | 100－600 |
| High Light: | XCP Aluminum Liquid System Degassing Unit,Aluminum Liquid System Degassing Unit,Adjustable Aluminum Liquid System Degassing Unit |
||

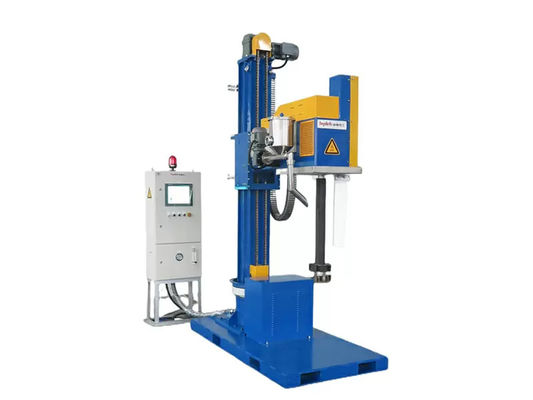

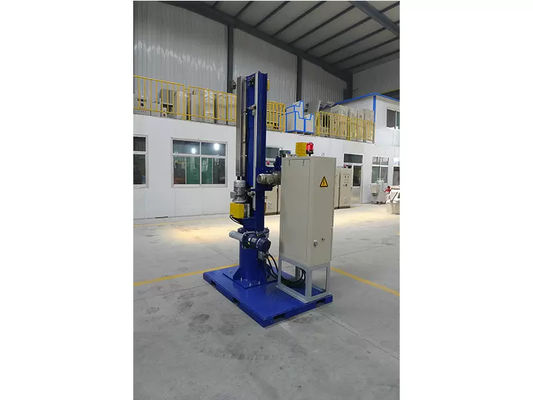

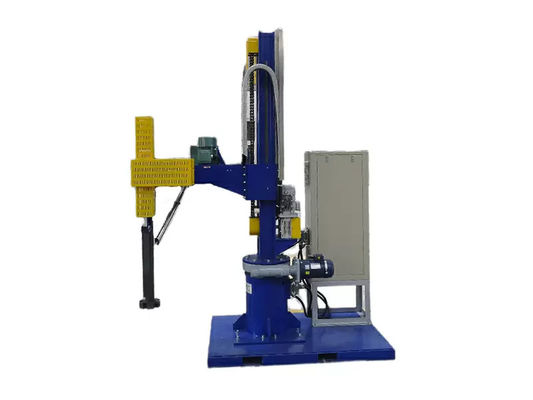

XC (P) 200 type rotary degassing and fluxing equipment is a motor-driven tool that uses a graphite rotor to rotate inside a molten aluminum crucible or ladle. During the operation, high-purity nitrogen or argon and a fluxing agent are input into the molten aluminum.
The rotation of the graphite rotor causes the molten aluminum, nitrogen, and fluxing agent to achieve degassing, slag removal, and refinement of the molten aluminum. All of these steps work together to produce a high-quality final product.
This tool is essential for industries that require high-quality molten aluminum, especially those in the automotive, aerospace, and electronics industries. By using the XC (P) 200 type rotary degassing and fluxing equipment, manufacturers can ensure that their aluminum is free from defects, making it highly desirable for their final products.
The equipment is highly effective in removing gases, primarily hydrogen and oxides, from molten aluminum. It combines the benefits of both gas refining and flux-refining processes. Upon rotary injection, the hydrogen concentration in molten aluminum alloys is effectively reduced to below 0.1 ml/100g. This results in a drastic reduction in the pinhole degree to level 1, a density of below 1, and ensures stable refining effects.
Another advantage of the equipment is its low metal loss. After undergoing proper flux-refining, the dross found on the surface of the melt becomes less and is loose in nature. This means that the metal is rarely encased and there is low metal loss during slag removal.
The consumption of the refining agent is low and the feeding is stable. The equipment is installed with an anti-falling mechanism, a refining agent material level measuring and an air channel leakage detector.
The equipment is versatile and can execute multiple technological processes. On using different functions of fluxes, it can be used for high-efficiency modification, degassing and slag removal. The rotor bearing used is designed for high-temperature conditions and does not require air-cooling. The spindle can work without stop at a high temperature of 200°C.
The equipment can also undergo automatic operation, thereby improving site working conditions significantly.
| Product Attribute | Value |
| Product Name | Inline Degassing, Inline Rotary Degassing Unit, Aluminium Alloy Degassing Product |
| Pressure MPa | 0.1-0.6 Adjustable |
| Flow rate m3/h | ≥0.5 |
| Refining degassing time min | 0～99 |
| Flow rate L/min | ≥0.4 |
| Number of Phases | 3 |
| voltage V | 380±10% |
| Graphite rotor speed r/min | 100－600 |
| Total power KW | 3 |
| Frequency Hz | 50 |
| Moisture (ppm) | ≤3 |
The equipment utilized for the refining and degassing of molten aluminum is essential for removing gases, specifically hydrogen, and oxides such as aluminum slag from the molten aluminum. The process of using this equipment helps to create a more refined and pure form of aluminum to be utilized for various purposes.
The refining and degassing equipment can be applied to either crucible or road molten aluminum transfer ladle, enabling a versatile application of the process. This equipment is an important investment for those who work with molten aluminum to ensure that the material is of high quality and meets industry standards.
The Aluminum Degassing Machine is a complex piece of equipment that requires expert technical support and services to ensure optimal performance and longevity. Our team of highly trained engineers and technicians are available to provide the following support:
In addition, we offer customized service packages to meet the specific needs of each customer, ensuring maximum uptime and productivity. Contact us for more information on our technical support and services for the Aluminum Degassing Machine.
Frequently Asked Questions for HYDEB Aluminum Degassing Machine XCP230-1
Q: What is the minimum order quantity for the HYDEB Aluminum Degassing Machine XCP230-1?
A: The minimum order quantity for this product is 1 set.
Q: What is the price of the HYDEB Aluminum Degassing Machine XCP230-1?
A: The price of this product is ＞1000USD/set.
Q: Where is the HYDEB Aluminum Degassing Machine XCP230-1 manufactured?
A: The HYDEB Aluminum Degassing Machine XCP230-1 is manufactured in Jinan, China.
Q: What certifications does the HYDEB Aluminum Degassing Machine XCP230-1 have?
A: The HYDEB Aluminum Degassing Machine XCP230-1 has ISO and CE certifications.
Q: What is the supply ability for the HYDEB Aluminum Degassing Machine XCP230-1?
A: The supply ability for this product is 300 sets per year.
Q: What are the packaging details and delivery time for the HYDEB Aluminum Degassing Machine XCP230-1?
A: The packaging details for this product is a wooden box. The delivery time is 50-60 days.
Q: What are the payment terms for the HYDEB Aluminum Degassing Machine XCP230-1?
A: The payment terms for this product is 30%+70%.
