Transfer Ladle For Aluminium Liquid / Molten Aluminium Tranfering Ladle

Overview

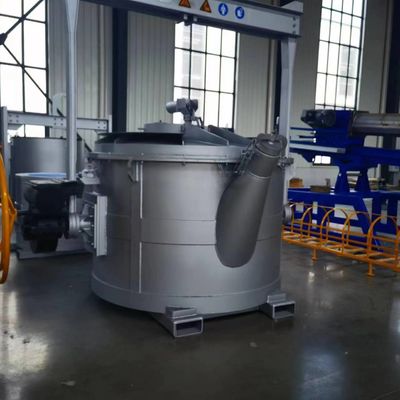

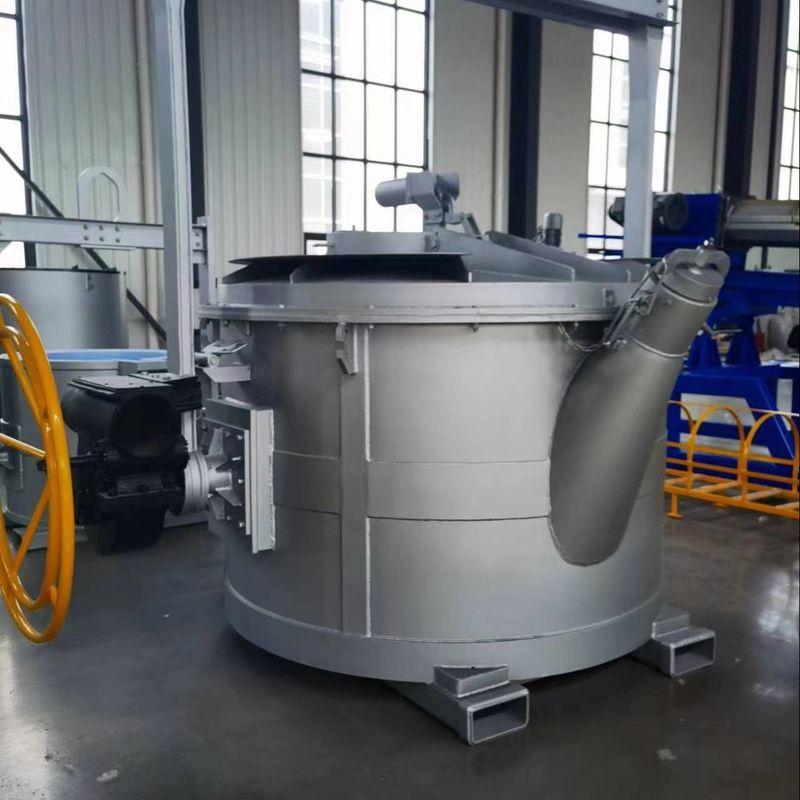

The teapot aluminum molten transfer ladle is primarily used for long-distance transportation of molten aluminum. Through years of experience, refinement, and continuous improvement, the performance and quality of our product have made significant strides. This new generation of aluminum molten transfer ladle, independently developed by our company, boasts an exquisite appearance, excellent insulation properties, and various user-friendly designs, earning high praise from many customers.

Advantages of the Equipment

The teapot-style aluminum molten metal transfer ladle produced by our company has the following advantages:

1.Excellent Insulation Performance with Minimal Natural Temperature Drop The ladle lining's insulation layer uses high-quality insulation materials. Its excellent insulation performance results in a low surface temperature rise and minimal natural temperature drop, making it suitable for long-distance transportation over 90 km.

2.Good Non-Stick Aluminum Performance and Long Service Life The ladle lining's refractory layer is made from a well-known brand of non-stick aluminum castable material, which is integrally cast. It has high strength, poor wettability with molten aluminum, and excellent resistance to molten aluminum corrosion, resulting in a long service life.

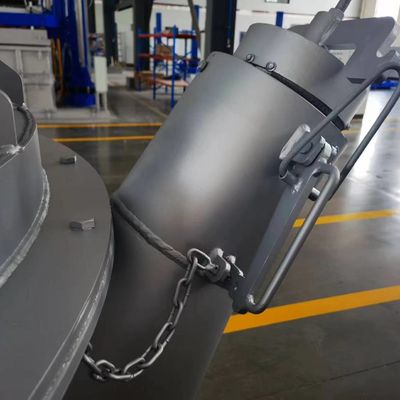

3.Mature Knotting Process The ladle lining has a mature knotting process, ensuring a smooth inner wall with no defects. The large diameter of the pouring channel allows for fast aluminum flow and reduces the likelihood of clogging.

4.Reliable Sealing and Easy Operation The ladle mouth sealing device is designed with user-friendliness in mind, enabling quick locking of the ladle mouth cover and preventing it from loosening during transportation. Additionally, it prevents the cover from closing automatically when pouring molten aluminum. The ladle cover has a good sealing effect. Each cover is equipped with a locking device and packing, providing excellent sealing that isolates air to reduce oxidation and prevents aluminum splashing during transport.

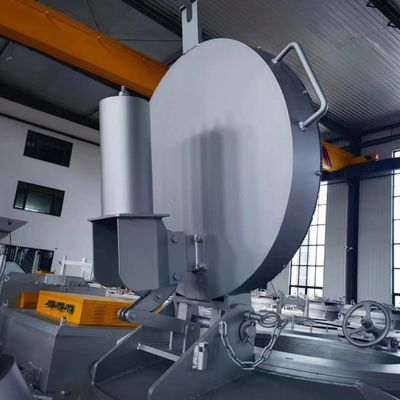

5.Equipped with a Ladle Cover Opening Assist Device Our ladles are equipped with our patented ladle cover opening assist device. This device, once installed on the ladle cover, allows easy lifting of the heavy cover using manual force. It also provides a buffering force when closing the cover to prevent it from falling rapidly and impacting the ladle body, thus extending the ladle's service life.

6.Low Self-Weight and Low Transportation Costs Our optimized transfer ladle uses lighter materials while ensuring its service life, reducing the ladle's self-weight and further enhancing its insulation performance. The self-weight of the transfer ladle can be reduced by approximately 10%-20% under the same capacity and insulation requirements.

Technical Parameters:

Applications:

Molten Aluminum Transfer Ladles are essential equipment in the aluminum casting industry. HYDEB's HLB model is a top-of-the-line product that is manufactured in Jinan, China. The product is certified with CE ISO9001, ensuring its quality and reliability. The minimum order quantity for this product is 1 set, and it is priced at 7100USD/set. The product packaging is a standard exporting package, and the delivery time is estimated to be 15-30 workdays. Payment options include L/C, T/T, Western Union, and MoneyGram. The supply ability of this product is 60 sets per year.

The ladles feature a lid that helps prevent the molten aluminum from spilling during transfer. The surface finish of the ladles is smooth, which ensures that the aluminum flows smoothly and evenly. The ladles are available in different capacities ranging from 500 to 3000, and customization is also possible. The capacity of the ladles is measured in kilograms and ranges from 500 to 3000, depending on the customer's requirements.

The Molten Aluminum Transfer Ladles are used in a variety of applications, including transferring molten aluminum from one container to another, feeding molten aluminum into casting molds, and filling crucibles. In the aluminum casting industry, the ladles are used in foundries, die-casting plants, and other aluminum manufacturing facilities.

The Molten Aluminum Transfer Ladles are ideal for use in scenarios where accuracy and precision are essential. They are particularly useful in applications where a significant amount of molten aluminum needs to be transferred quickly and safely. The ladles are also useful for applications where the aluminum needs to be transferred over long distances or across different levels of the manufacturing facility.

Overall, the HYDEB HLB model Molten Aluminum Transfer Ladles are an essential piece of equipment in the aluminum casting industry. They are reliable, high-quality, and can be customized to meet the customer's specific requirements. They are used in a wide range of applications and scenarios, making them an indispensable tool for any aluminum manufacturing facility.

Customization:

Brand Name: HYDEB

Model Number: HLB

Place of Origin: Jinan, China

Certification: CE ISO9001

Minimum Order Quantity: 1 set

Price: 7100USD/set

Packaging Details: Standard exporting package

Delivery Time: 15-30 workdays

Payment Terms: L/C, T/T, Western Union, MoneyGram

Supply Ability: 60 sets per year

Lid: Yes

Transfer Material: Aluminum

Capacity (kg): 500～3000(Customized)

Natural temperature drop (℃/h): ≤12

Capacity: 500～3000(customized)

Molten Aluminum Transfer Ladles

Molten Aluminum Transfer Ladles

Molten Aluminum Transfer Ladles

Support and Services:

Molten Aluminum Transfer Ladles are designed to safely transport and pour molten aluminum. Our technical support team is available to answer any questions you may have about the use and maintenance of our transfer ladles. We also offer a range of services, including repair and replacement of parts, on-site inspections and training, and customization of ladles to fit specific needs. Our experienced technicians are dedicated to ensuring the proper function and longevity of your Molten Aluminum Transfer Ladles.
