Product Details:
|
| Material: | Natural Gas Burner, Steel | Color: | According To Your Requirment |
|---|---|---|---|
| Ladle Cover: | Customized | Usage: | Ladle Preheating |
| Heating Temperature: | 900℃ | Moving Method: | Air Cylinder |
| Highlight: | Molten Aluminum Transfer Ladles 3000kg,Steel Molten Aluminum Transfer Ladles,200KM Molten Aluminum Transfer Ladles |
||

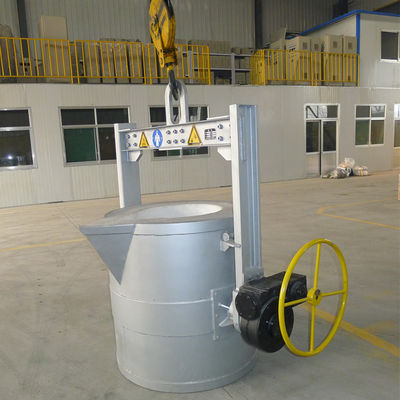

3000kg Molten Aluminum Transfer Ladles Molten Aluminum Directly Transfer Ladles for 200KM Distance
Usage:
• The molten aluminum transfer equipment is used for transferring the molten aluminum, also can refining and degassing inside the ladle.
• Molten aluminum ladle capacity: 100kg - 10000kg (AL)
Equipment Features
• Molded by monolithic casting with a refractory casting material specially used for aluminum alloy ladle production, the inner layer of the ladle lining is poorly permeable to the molten aluminum, so it offers high resistance to corrosion by the molten aluminum.
• Made from an insulating castable or nano-fibrous material, the temperature holding layer has excellent performance and low natural drop in temperature.
• Sturdy cladding. The cladding is professionally produced according to the technical conditions of ladles. Equipped with a welded bottom hoop, bilge hoop, upper mouth hoop and collar, it has a longer service life and can ensure safety.
| Items | Parameters | Remarks | |
| Modle | HBQ-223 | ||
| Heating Type | Small; Medium; Big | ||
| Max. Burning Calorific Value | 20x104 Kcal/h | ||
| Max Heating Temperature | 1100℃ | ||
| Working Heating Temperature | 0-850℃ | ||
| Heating Rate | 0-50 ℃/min Adjustable | ||
| Time to Reach Temperature | 0-60 min | ||
| Heating Temperature Uniformity | ≤50 ℃ | ||
| Lifting Power | Air Cylinder Driver | ||
| Lifting Stroke | 0-400mm | ||
| Gas | Gas Type | Natural Gas | |
| Gas Pressure | 5000 ±5% Pa | ||
| Gas Flow | ≤24 m³/h | ||
| Power | Voltage | 380 V, 3P | |
| Frequency | 50HZ | ||
| Rated Power | 3 KW | ||
| Compressed Air | Pressure | 0.5-0.7 MPa | |
| Flow | ≤50 M3/H | ||
