Product Details:
|
| Ladle Key Words: | Aluminum Recycling Transporting Containers Transfer Ladles Among Aluminum Factory | Warranty Time: | 1 Year |
|---|---|---|---|
| Colour: | Customized | Application: | Transporting Aluminum Alloy Liquid |
| MOQ: | 1 Set | Temperature Drop: | Less Than 10 ℃ |
| Highlight: | dust free ladle metallurgy furnace,1200 KG ladle metallurgy furnace,ladle furnace in steel making 2.5t/m3 |
||
Aluminum Recycling Transporting Containers Transfer Ladles Among Aluminum Factory
Transfer Ladles for Transfer Aluminum Liquid Aluminum Recycling
Heated cap
Transfer ladle is designed come with electric heated cap, avoided temperature lost while transporting molten aluminum
Optional Design
It is available in automatic tilting or manual operate.
1. Hydeb Company Profile
Founded in January 2003, the Jinan HYDEB Thermal Tech Co., Ltd. is located in Jinan High-tech Development Zone.
The Company mainly produces molten aluminum refining and degassing units, molten aluminum transfer ladles and
holding crucible furnaces, which are sold to well-known corporations in the industry at home and abroad, meeting their
high requirements for product safety and advancement.
Focusing on the aluminum casting industry, the Company takes “Technology, Quality and Service” as its base of enterprise,
aimed at meeting all the needs of customers. Being “Safe, Practical, Reliable, Efficient and nice-looking”, its products are well
unanimous recognized by the customers, with its brand “HYDEB” gaining high popularity in the industry.
2. Transfer Ladle Function
Molten Aluminium Transfer Ladle is a refractory product, which is basically used for molten metal transfer.
Ladles enable molten aluminium to be held at temperature for extended periods, keeping metal clean.
3. Transfer Ladle Parameter Data
| Items | Parameters | Remarks |
| Maximum temperature of molten aluminum | 800℃ | |
| Maximum ladle lining temperature | 900℃ | |
| Natural temperature drop of molten aluminum | ≤18℃/h | For a 500-kg ladle; the lower the capacity, the higher the figure |
| Ladle shell surface temperature | ≤50℃ | |
| Ladle capacity | 1200 KG | The specific gravity of molten aluminum is set to 2.5t/m3 |
| Ladle body weight | Around 1500KG |
4. Transfer Ladle Advantages
-- Smooth Tilting Mechanism
-- Less Skin temperature
-- Long Refractory life
-- Maintenance free
-- Easy Handling
5. Tranbsfer Ladle Characteristic
| 1 | Increased metal quality |
| 2 | Lower energy costs |
| 3 | Improved process efficiency |
| 4 | Reduced downtime and replacement costs |
| 5 | Customized designs |

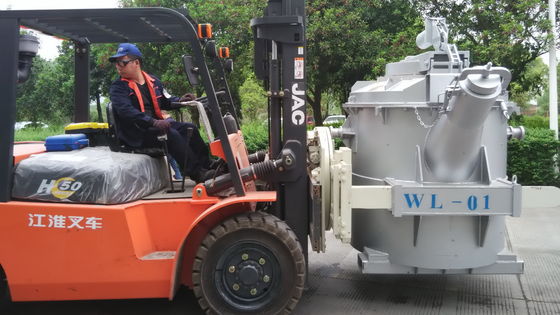

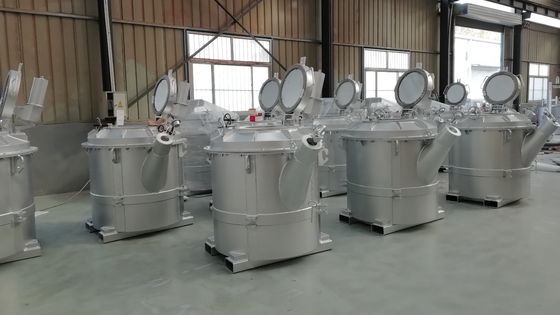

6. Pictures
6. Modles
| Type | HLB-15 | HLB-20 | HLB-30 | HLB-50 | HLB-80 | HLB-100 | HLB-120 | HLB-150 |
| Capacity | 150KG | 200KG | 300KG | 500KG | 800KG | 1000KG | 1200KG | 1500KG |
7. Our Package
8. CE Certification
