100 - 600rpm Online Aluminum Degassing System With Launder Out Shell Surface

Certification
China Jinan Hydeb Thermal Tech Co., Ltd. certification
China Jinan Hydeb Thermal Tech Co., Ltd. certification
I'm Online Chat Now

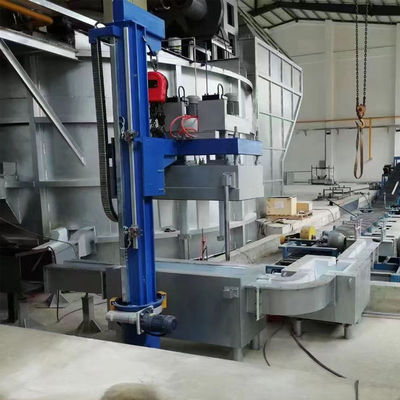

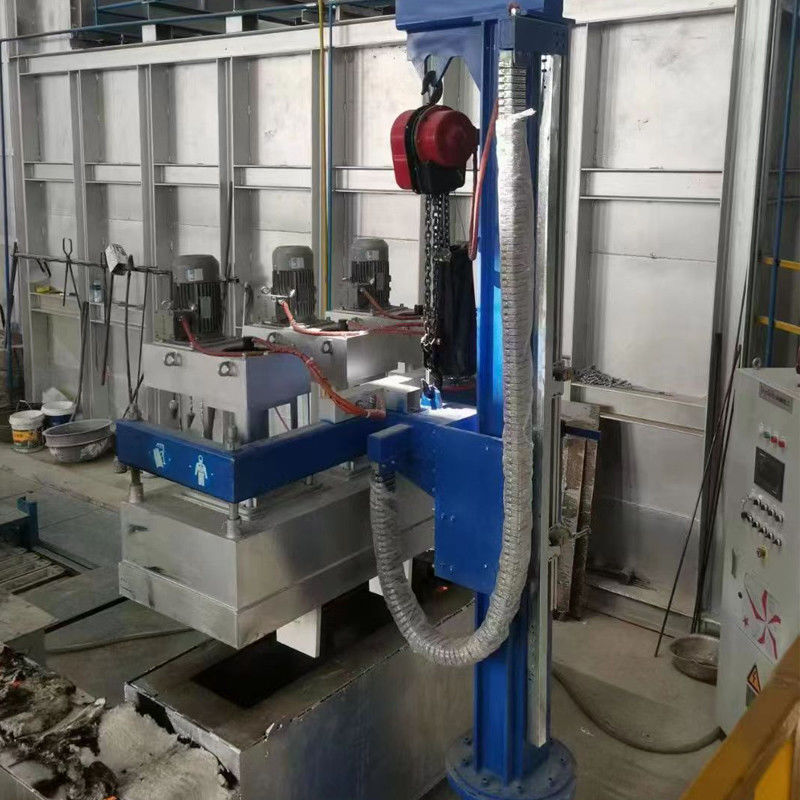

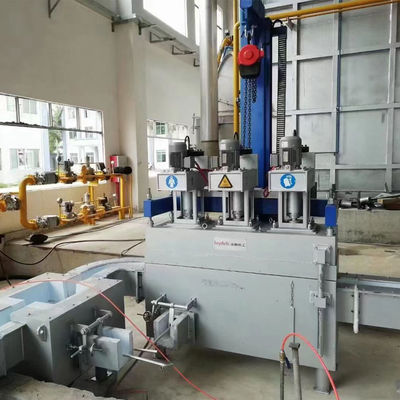

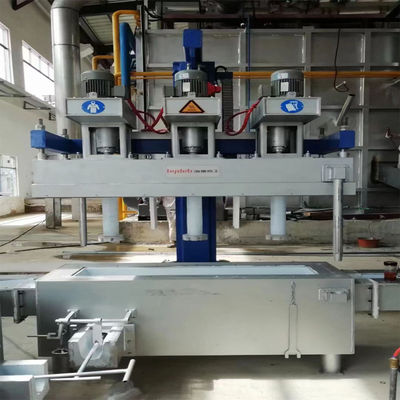

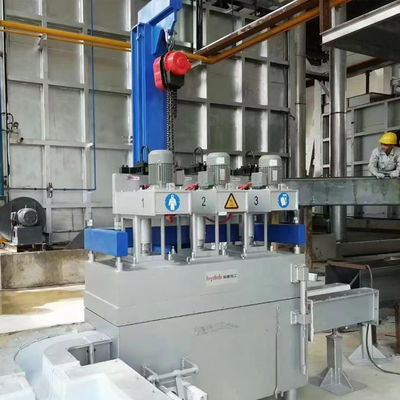

100 - 600rpm Online Aluminum Degassing System With Launder Out Shell Surface

100 - 600rpm Online Aluminum Degassing System With Launder Out Shell Surface
100 - 600rpm Online Aluminum Degassing System With Launder Out Shell Surface 100 - 600rpm Online Aluminum Degassing System With Launder Out Shell Surface 100 - 600rpm Online Aluminum Degassing System With Launder Out Shell Surface 100 - 600rpm Online Aluminum Degassing System With Launder Out Shell Surface 100 - 600rpm Online Aluminum Degassing System With Launder Out Shell Surface

Large Image :  100 - 600rpm Online Aluminum Degassing System With Launder Out Shell Surface

Product Details:
Place of Origin: Jinan, China
Brand Name: HYDEB
Certification: CE ISO9001
Model Number: HDR-2
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: 1000USD/set
Packaging Details: Standard exporting package
Delivery Time: 30 workdays
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 60 sets per year

100 - 600rpm Online Aluminum Degassing System With Launder Out Shell Surface

Description
Launder Out Shell Surface Temperature: ≤60℃ Maximum Liquid Aluminum Temperature: 750℃
Degassing Efficiency: ≥40% Inert Gas: High-purity N2;High-purity Ar
Rotor Speed: 100-600rpm Launder Lining Life: ≥18 Months
High Light:

Launder Out Shell Aluminum Degassing System

,

Online Aluminum Degassing System

,

Rotary Aluminum Degassing Machine

Product Description:

The High Efficient Aluminium Purification Return Launder Type In-line Rotory Degassing Unit (LDU) has been designed to ensure a superior degassing efficiency. This is achieved due to the special placement of the degassing rotors, which are installed between the melting furnace and casting machine in the length direction of the launder. Moreover, the degassing zone is partitioned into several parts for multilevel in-line degassing, meaning that more effective purification is achievable. The number of rotors employed is based on the flow rate of molten aluminum, with multiple rotors available when needed. The combination of the secondary degassing rotor after the primary degassing rotor further improves gas bubbles removal, leading to a greater purification of aluminium. Consequently, these rotator degassing units present higher overall degassing efficiency compared to other units of the same kind.



Features:

High degassing efficiency, above 40%. Adopting multi-zone continuous degassing to increase the contact surface and contact time between bubbles and molten aluminum; adopting the sealed design to maintain an inert headspace above the molten aluminum surface during the entire casting period to prevent more slag to eliminate secondary pollution and improve degassing efficiency.

Low use cost and maintenance frequency. The molten aluminum heating and holding system is removed, reducing consumption. Launders are adopted for degassing, reducing the residual amount of molten aluminum and the loss of metal;low maintenance cost, convenient and fast replacement of launders.

Easy to install. Small size and low weight, space-saving; needless to install the required structure or foundation; installed in the joint positions of launders; a short period of time is required for on-site commissioning, saving production downtime.

Convenient for alloy conversion. There is no heating device or deep box, so at the end of per casting, most of the degassed metal is made into a product, which can easily clear away residual aluminum liquid in the degassing tank and convenient for the rapid alloy Conversion.

Easy to operate. No special starting procedure; a simple molten aluminum drainage device; convenient slag removal and simple working conditions.

Especially suitable for semi-continuous casting lines for the production of cast rods and renewable aluminum ingots. This casting technology is featured by frequent replacement of alloys without a very high dehydrogenation level.



Technical Parameters:

Items & Parameters

The maximum temperature of molten aluminum is 750℃, while the launder shell surface temperature is required to be ≤60℃ and the launder lining life is required to be ≥12 months.

The rotor speed falls between 100-600rpm and the inert gases used are high-purity N2 and high-purity Ar. The degassing efficiency demands that when it is not greater than the maximum flow rate, the inlet hydrogen content is ≤0.30ml/100gAl, and when the aluminum liquid is 700-740℃, the hydrogen content after degassing is ≤0.22ml/100g. Furthermore, when hydrogen content at the inlet >0.30ml/100g-Al, the degassing efficiency should be ≥35%.

The power supply is 380V AC 50Hz, with a maximum of 10KVA.

100 - 600rpm Online Aluminum Degassing System With Launder Out Shell Surface 0



Applications:

HYDEB HDR-2 Heat Treatment Furnace is a Rotary Molten Aluminum Liquid Degasser Machine, which is designed to degas molten aluminum liquid without residual molten aluminum. This advanced machine has a rotor system that can rotate at a speed of 100-600rpm. It also has a launder out shell surface temperature that is ≤60℃ and launder lining life of ≥18 Months. Moreover, it has a degassing efficiency of ≥40% and can operate with high-purity nitrogen or argon as the inert gas.

The performance of HYDEB HDR-2 Heat Treatment Furnace is highly reliable, allowing for effective degassing of molten aluminum liquid with no residual. It can also degas rapidly and effectively, ensuring no secondary oxidation of the molten aluminum liquid. As a result, the machine is perfect for applications such as aluminum alloy production and die casting.



Customization:

HYDEB HDR-2 Rotary Molten Aluminum Liquid Degasser Machine
  • Brand Name: HYDEB
  • Model Number: HDR-2
  • Place of Origin: Jinan, China
  • Function: Online Degassing, Inline Rotary Degassing Unit, Degassing Furnace
  • Degassing efficiency: ≥40%
  • Inert gas: High-purity N2; High-purity Ar
  • Rotor speed: 100-600rpm
  • Maximum liquid aluminum temperature: 750℃
  • Launder lining life: ≥18 Months


Support and Services:

Heat Treatment Furnace Technical Support and Service

We provide technical support and service for our Heat Treatment Furnaces. Our team of experts can help you get the most out of your Heat Treatment Furnace, as well as troubleshoot any issues you may encounter.

For technical support, you can contact our customer service team 24/7. They will be able to answer any questions you may have about the Heat Treatment Furnace, as well as provide troubleshooting advice. We also offer online tutorials and user manuals to help you better understand the product.

For service, we offer a full range of maintenance and repair services. Our technicians are factory-trained to ensure your Heat Treatment Furnace is running at its optimal performance. We also offer replacement parts for any components that may need to be replaced.

If you have any questions or need any assistance, please do not hesitate to contact us. We are always here to help you get the most out of your Heat Treatment Furnace.
