1 Ton Steel Iron Aluminum Melting Furnace Oil Fired Metal Casting Die Cast

Certification
China Jinan Hydeb Thermal Tech Co., Ltd. certification
China Jinan Hydeb Thermal Tech Co., Ltd. certification
I'm Online Chat Now

1 Ton Steel Iron Aluminum Melting Furnace Oil Fired Metal Casting Die Cast

1 Ton  Steel Iron Aluminum Melting Furnace Oil Fired Metal Casting Die Cast
1 Ton  Steel Iron Aluminum Melting Furnace Oil Fired Metal Casting Die Cast
1 Ton  Steel Iron Aluminum Melting Furnace Oil Fired Metal Casting Die Cast 1 Ton  Steel Iron Aluminum Melting Furnace Oil Fired Metal Casting Die Cast 1 Ton  Steel Iron Aluminum Melting Furnace Oil Fired Metal Casting Die Cast 1 Ton  Steel Iron Aluminum Melting Furnace Oil Fired Metal Casting Die Cast 1 Ton  Steel Iron Aluminum Melting Furnace Oil Fired Metal Casting Die Cast 1 Ton  Steel Iron Aluminum Melting Furnace Oil Fired Metal Casting Die Cast

Large Image :  1 Ton Steel Iron Aluminum Melting Furnace Oil Fired Metal Casting Die Cast

Product Details:
Place of Origin: Jinan, China
Brand Name: Hydeb
Certification: CE ISO9001
Model Number: 1000
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: 20000-50000USD/set
Packaging Details: Standard exporting package
Delivery Time: 45 workdays
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 60 sets per year

1 Ton Steel Iron Aluminum Melting Furnace Oil Fired Metal Casting Die Cast

Description
Voltage: 380V,220V/380V,customized,AC 110V/220V,220V Type: Induction Furnace,Oil Fired/gas Fired Furnace
Condition: New Rated Power: 50~300KW
Melting Time: Less Than 1.5h Duty Cycle: 24hours Of Continuous Work
High Light:

1 Ton Aluminum Induction Furnace

,

Aluminum Melting Furnace Oil Fired

,

Steel Iron Aluminum Melting Furnace

1 Ton Induction Furnace Steel Iron Aluminum Melting Furnace Oil Fired Crucible Furnace Metal Casting Furnace Die Cast

Electric Heating Bath Type Aluminum Holding Furnace Molten Aluminum Temperature Holding Furnace



1. EQUIPMENT FEATURES



1 Uninterrupted production. The molten aluminum can be continuously added and taken out to ensure uninterrupted die-casting production.

2 The furnace cover is easy to clean and maintain. The furnace cover is equipped with a cylinder to rotate and lift, which is convenient for cleaning the molten pool, removing slag, and maintaining the furnace cover and electric heating elements.

3 No crucible spare parts. Non-metallic molten bath, no crucible spare parts, low cost of use and maintenance.



4 Long service life. The molten bath is cast with low-cement castable for aluminum alloy, which is resistant to aluminum liquid erosion and has a service life of more than three years.

5 Good thermal insulation performance. The furnace lining insulation is made of high-quality thermal insulation materials such as silicon calcium board and nano-board, with good thermal insulation performance, and the temperature rise of the furnace shell surface is less than 60 °C.



6 Fault alarm. The control system has various alarm functions such as molten aluminum over-temperature alarm, furnace over-temperature alarm, and thermocouple disconnection alarm.

9 Adopt high current industrial plug. The use of this plug is fast, safe and reliable, and it is convenient to replace the furnace cover.



2.MAIN PARAMETERS FOR THE TRANSFER LADLE



NO. tems Data Remarks
1 Holding furnace capacity   Seeing below table
2 Furnace Hearth Max.Temperature 900℃
3 Rated Molten Aluminum Temperature 720℃
4 Rated Power   Seeing below table
5 Feeding Molten Aluminum Size   Seeing below table
6 Heating Element SIC
7 Thermocouple protection tube   Silicon carbide
8 Furnace Surface Temperature Rise ≤50℃
9 Molten aluminum temperature uniformity ≤±5 ℃
10 Temperature control mode PID+SSR automatic temperature control

















3. EQUIPMENT APPLICATION



This equipment is mainly used for heat preservation of molten aluminum in the process of metal die-casting, casting, uniform organization, and temperature adjustment. The molten bath is made of aluminum alloy special refractory cast as a whole, which is resistant to aluminum liquid erosion and penetration, and does not stick to slag. This furnace uses silicon carbide rods as heating elements. The silicon carbide rods are suspended above the molten bath to directly radiate and heat the molten aluminum. The heating speed is fast, the efficiency is high, and the power consumption is small; after the silicon carbide rods are damaged, they can be heated in a hot state. easy to replace.

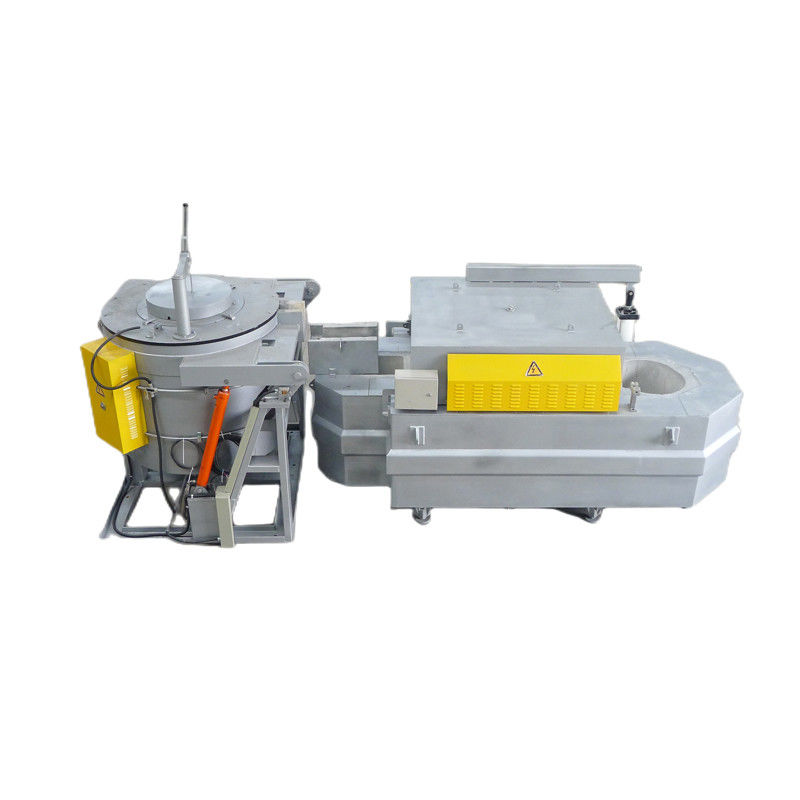

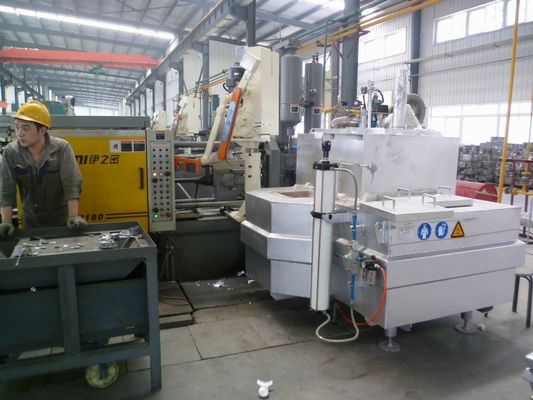

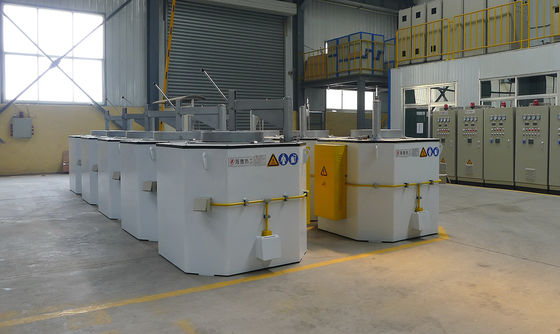

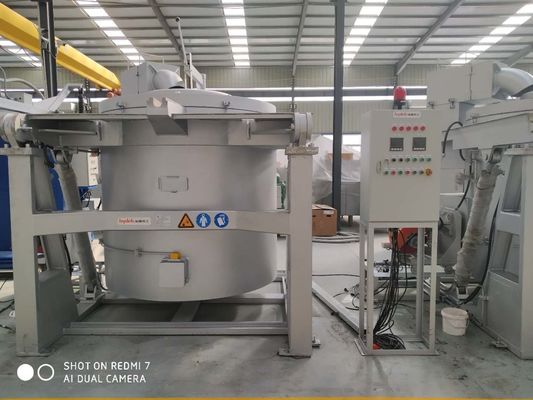

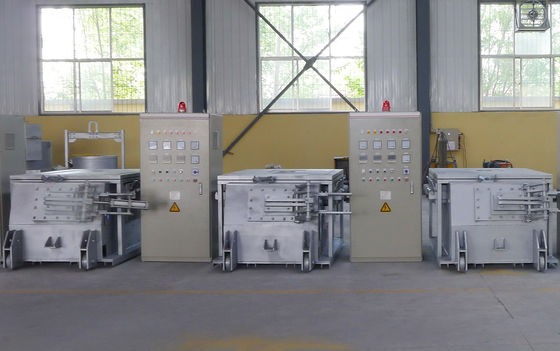

4. Equipment Pictures

1 Ton  Steel Iron Aluminum Melting Furnace Oil Fired Metal Casting Die Cast 0

1 Ton  Steel Iron Aluminum Melting Furnace Oil Fired Metal Casting Die Cast 11 Ton  Steel Iron Aluminum Melting Furnace Oil Fired Metal Casting Die Cast 2
