1 Ton Aluminum Scrap Melting Furnace Die Casting Metal Casting

Certification
China Jinan Hydeb Thermal Tech Co., Ltd. certification
China Jinan Hydeb Thermal Tech Co., Ltd. certification
I'm Online Chat Now

1 Ton Aluminum Scrap Melting Furnace Die Casting Metal Casting

1 Ton Aluminum Scrap Melting Furnace Die Casting Metal Casting
1 Ton Aluminum Scrap Melting Furnace Die Casting Metal Casting
1 Ton Aluminum Scrap Melting Furnace Die Casting Metal Casting 1 Ton Aluminum Scrap Melting Furnace Die Casting Metal Casting 1 Ton Aluminum Scrap Melting Furnace Die Casting Metal Casting 1 Ton Aluminum Scrap Melting Furnace Die Casting Metal Casting 1 Ton Aluminum Scrap Melting Furnace Die Casting Metal Casting 1 Ton Aluminum Scrap Melting Furnace Die Casting Metal Casting

Large Image :  1 Ton Aluminum Scrap Melting Furnace Die Casting Metal Casting

Product Details:
Place of Origin: Jinan, China
Brand Name: Hydeb
Certification: CE ISO9001
Model Number: 1500
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: 20000-50000USD/set
Packaging Details: Standard exporting package
Delivery Time: 45 workdays
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 60 sets per year

1 Ton Aluminum Scrap Melting Furnace Die Casting Metal Casting

Description
Type: Oil Fired/gas Fired Furnace Weight: Depends,0.5T-5T
After-sales Service Provided: Engineers Available To Service Machinery Overseas,Video Technical Support,Field Maintenance And Repair Service,Online Support,Field Installation Power(w): Adjustable
Product Name: Induction Metal Melting Furnace Max Temperature: 850℃
Melting Material: Aluminum Melting Time: Less Than 1.5h
Duty Cycle: 24hours Of Continuous Work
High Light:

Aluminum Scrap Melting Furnace 1 Ton

,

Die Casting Aluminum Melting Furnace

,

1 Ton Aluminum Holding Furnace

1 Ton Aluminum Scrap Melting Furnace Aluminum Melting Furnace Aluminum Holding Furnace Die Casting Furnace Metal Casting





1. EQUIPMENT FEATURES



1 Uninterrupted production. The molten aluminum can be continuously added and taken out to ensure uninterrupted die-casting production.

2 The furnace cover is easy to clean and maintain. The furnace cover is equipped with a cylinder to rotate and lift, which is convenient for cleaning the molten pool, removing slag, and maintaining the furnace cover and electric heating elements.

3 No crucible spare parts. Non-metallic molten bath, no crucible spare parts, low cost of use and maintenance.

4 The molten aluminum does not increase iron. Non-metallic molten bath, no iron growth and other pollution in molten aluminum.

5 Long service life. The molten bath is cast with low-cement castable for aluminum alloy, which is resistant to aluminum liquid erosion and has a service life of more than three years.

6 Good thermal insulation performance. The furnace lining insulation is made of high-quality thermal insulation materials such as silicon calcium board and nano-board, with good thermal insulation performance, and the temperature rise of the furnace shell surface is less than 60 °C.

7 High temperature control accuracy. Equipped with intelligent temperature control instrument and aluminum liquid temperature measuring thermocouple, it can realize double-loop control of aluminum liquid and furnace temperature, and the temperature control accuracy can reach ±2℃.

8 Fault alarm. The control system has various alarm functions such as molten aluminum over-temperature alarm, furnace over-temperature alarm, and thermocouple disconnection alarm.

9 Adopt high current industrial plug. The use of this plug is fast, safe and reliable, and it is convenient to replace the furnace cover.



2. MAIN PARAMETERS FOR THE TRANSFER LADLE



NO. tems Data Remarks
1 Holding furnace capacity   Seeing below table
2 Furnace Hearth Max.Temperature 900℃
3 Rated Molten Aluminum Temperature 720℃
4 Rated Power   Seeing below table
5 Feeding Molten Aluminum Size   Seeing below table
6 Heating Element SIC
7 Thermocouple protection tube   Silicon carbide
8 Furnace Surface Temperature Rise ≤50℃
9 Molten aluminum temperature uniformity ≤±5 ℃
10 Temperature control mode PID+SSR automatic temperature control

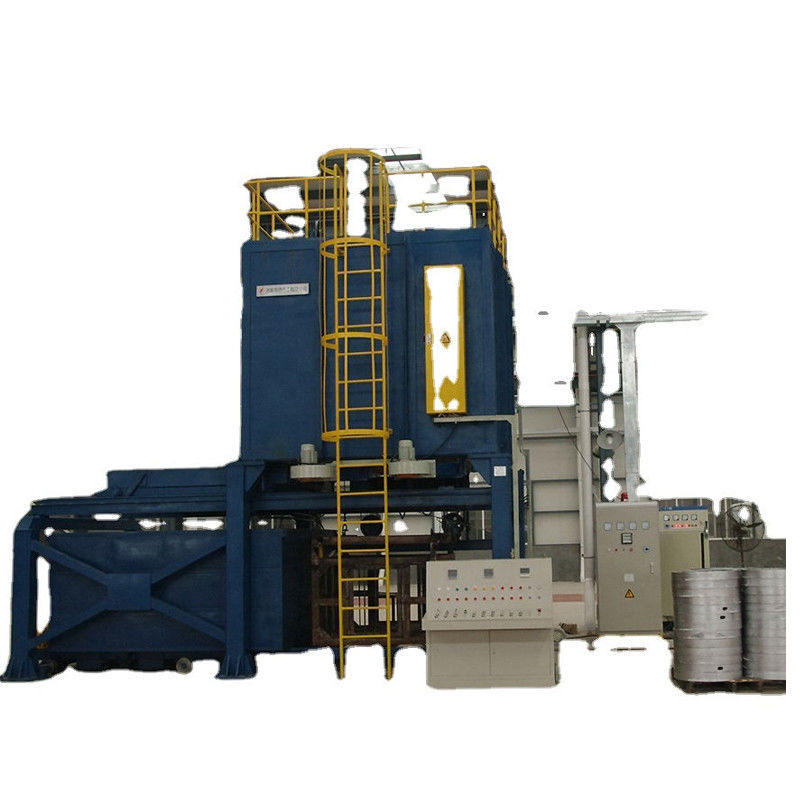

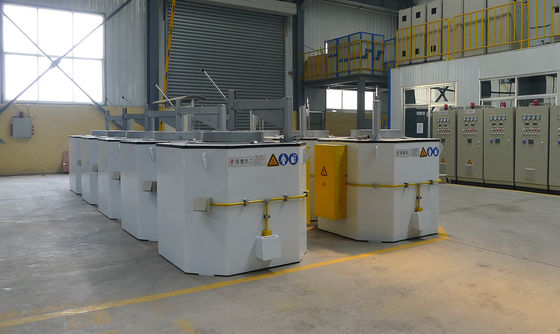

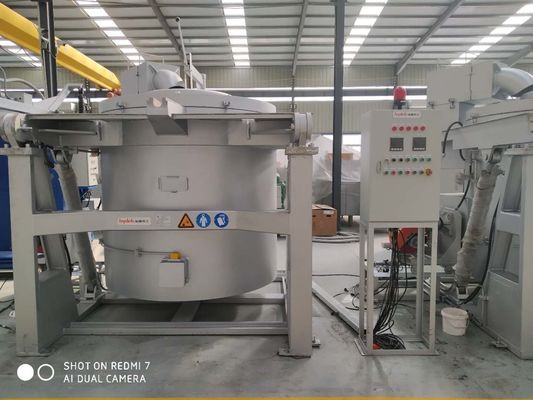

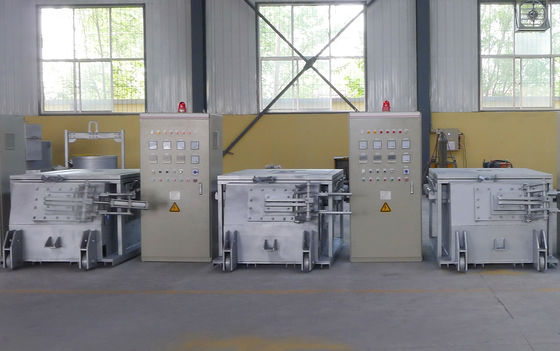

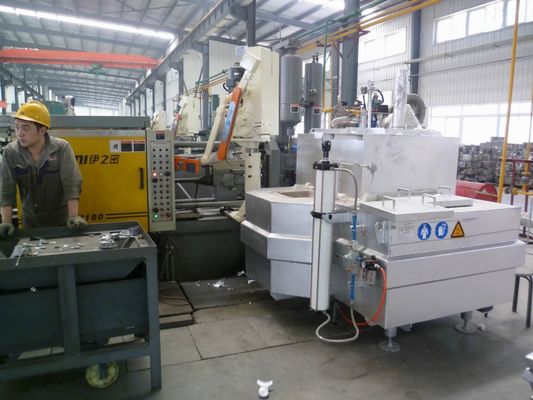

3. Equipment Pictures

1 Ton Aluminum Scrap Melting Furnace Die Casting Metal Casting 0

1 Ton Aluminum Scrap Melting Furnace Die Casting Metal Casting 11 Ton Aluminum Scrap Melting Furnace Die Casting Metal Casting 2
