Molten Aluminia Ball Deep Bed Filtration Box DBFF-15

Molten Aluminia Ball Deep Bed Filtration Box DBFF-15
Molten Aluminia Ball Deep Bed Filtration Box DBFF-15 Molten Aluminia Ball Deep Bed Filtration Box DBFF-15

Large Image :  Molten Aluminia Ball Deep Bed Filtration Box DBFF-15

Product Details:
Place of Origin: Jinan, China
Brand Name: HYDEB
Certification: ISO9001
Model Number: DBFF-15
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: 20000-50000USD/set
Packaging Details: Standard exporting package
Delivery Time: 45 workdays
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 60 sets per year

Molten Aluminia Ball Deep Bed Filtration Box DBFF-15

Description
Usage: Filter Molten Product Key Words: Molten Filter Unit Aluminia Ball Deep Bed Filtration Box DBFF-15
Material: Allied Mineral Castable Metal Flow: 12 Tons/hour
Out Shell Surface Temperature: ≤70℃ Delivery Time: 45 Days
High Light:

Molten Filter Unit

,

Alumina Ball Filter Unit

,

Aluminia Ball Deep Bed Filtration Box

Molten Filter Unit Aluminia Ball Deep Bed Filtration Box DBFF-15



1. Equipment Usage

-- For mass producing of the same alloy products, especially for cans, foils, PS plates, etc.

-- For producing aviation Aluminium alloy, high-purity Aluminium capacitor foil, double zero Aluminium foil;

--The flow rate range is 5-100 tons/h. Non-standard design can be carried out according to the flow rate. Generally for 75 tons, 55 tons, 35 tons, 25 tons, 10 tons and other sequences.



2. Equipment Features

  • According to the quality requirements of molten aluminium, the lining prefabricated parts of the filter box are made of corresponding high-quality castables. After high temperature pre-sintering, they have the characteristics of high strength, scour resistance, erosion resistance, no slag formation, and no sticking to Aluminium.
  • There are multiple layers of thermal insulation materials with good thermal insulation between the steel structure and the lining prefabricated parts.
  • The Deep Bed Filtration Box uses alumina balls and grit sintered by a special process as the filter medium.

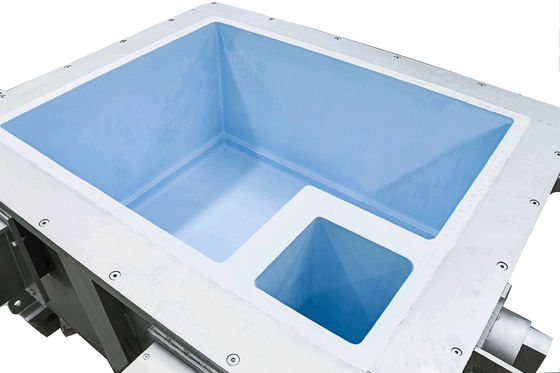

Molten Aluminia Ball Deep Bed Filtration Box DBFF-15 0

3. Deep Bed Filtration Box Module



 Module



Capacity

Static Storage Metal(KG)
DBFF-5 8t/h 500
DBFF-10 10t/h 600
DBFF-15 15t/h 800
DBFF-20 20t/h 1180
DBFF-25 20t/h 1300
DBFF-30 30t/h 1400
DBFF-35 35t/h 1700
DBFF-40 40t/h 1850
DBFF-55 60t/h 3050
DBFF-80 80t/h 4250
DBFF-100 100t/h 5550

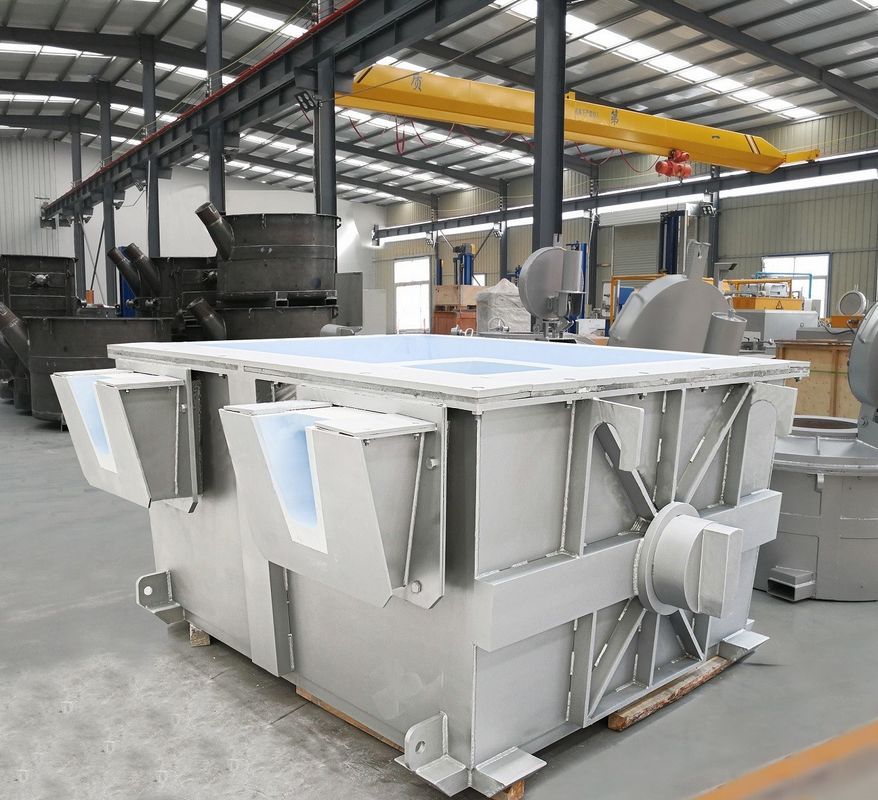

Molten Aluminia Ball Deep Bed Filtration Box DBFF-15 1

Molten Aluminia Ball Deep Bed Filtration Box DBFF-15 2
