20 Inches On Line Filtration Container CFF20 CFF Filter Box 40 PPI

20 Inches On Line Filtration Container CFF20 CFF Filter Box 40 PPI
20 Inches On Line Filtration Container CFF20 CFF Filter Box 40 PPI 20 Inches On Line Filtration Container CFF20 CFF Filter Box 40 PPI

Large Image :  20 Inches On Line Filtration Container CFF20 CFF Filter Box 40 PPI

Product Details:
Place of Origin: China
Brand Name: Hydeb
Certification: CE,ISO9001,ISO14001,IS45001,High-tech Enterprise,Intellectual Property,Patents
Model Number: CFF20
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $ 20000-$50000/set
Packaging Details: Wooden Case or Pallet
Delivery Time: 50 working days
Payment Terms: T/T
Supply Ability: 50 sets per year

20 Inches On Line Filtration Container CFF20 CFF Filter Box 40 PPI

Description
Product Name: 20 Inches On Line Siliver CFF23 Filtration Box For Purity Molten Aluminum Specification: 20 Inches
Plate No.: 2 Filter Plate Porosity: 40 PPI
Rated Filtration Flow T/h: 30 Color: Siliver
High Light:

20 Inches On line filtration container

,

filtration container CFF20

,

CFF Filter Box 40 PPI

20 Inches On line Siliver CFF20 Filtration Box for Purity Molten Aluminum

In line Siliver CFF Filtration Box for Purity Molten Aluminum

Molten Aluminum On Line Filtration Plate Purity Box


1. Filtration Box Introduce



The CFF Filtration Box (CFB) is widely used for molten aluminum filtration in the aluminum casting process to
prevent the particulate impurities in molten aluminum from entering the casting blank and affecting the quality of
aluminum products.



According to the quality requirements of castings, the volume of molten aluminum, the total volume of filtered
aluminum, and the cleanliness of the aluminum itself, the correct selection of the type of filter box and the specifications
of the foam filter plate help to achieve satisfactory filtration results. With foam ceramic filter plate, the filtering effect
is better.



2.  Hydeb Introduce



-- Established in January 2003, and now has 56 employees

-- Sales of 50 million RMB in 2020

-- Focus on one industry -- "aluminum casting"

-- Has a complete product line of aluminum casting equipment, all products are independent research

and development, manufacturing

-- aluminum melting and holding, transportation, ladle preheating, aluminum liquid refining, aluminum liquid

hydrogen measurement, until aluminum solution aging treatment equipment



3.  Filtration Box Main Paremeters


Item Data Remark
Power Source Phase 3
Voltage V 380±10%
Frequency Hz 50
Total Power kW < 30
Heating Power kW 60
Rated Filtration Flow t/h 30
Filter Plate Size 20″*20″*2″
Filter Plate Porosity 40 PPI
Lining Preheating Heating Speed >40℃/hr
Temperature Control PLC+Atmosphere, aluminum liquid temperature control
Temperature Rising of the outer shell of the box ℃ ≤55 Measure below 100mm on the plane of the box, except for the area within 100mm of the junction of the box chute

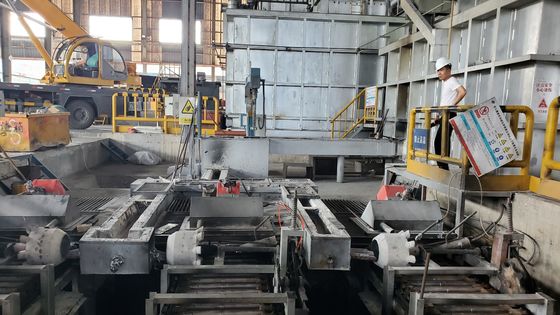

3. Reference Pictures

 20 Inches On Line Filtration Container CFF20 CFF Filter Box 40 PPI 0

4. Models


Size of Plate 15’’ 17’’ 23’’
Type CFF-15 CFF-17 CFF-23

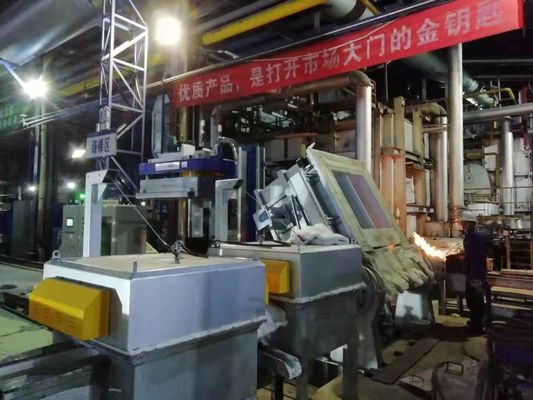

5. The Exhibition
20 Inches On Line Filtration Container CFF20 CFF Filter Box 40 PPI 1

6.  Package



Standarded Exporting Wooden Box or Pallet



7.  FRQ

Q1: I know nothing about this filtration box, what kind of filtration box I should choose?
Very easy. We will email you an inquiry form for making sure your real need. Or just tell us what you want to do
by using this machine, then let us give you perfect solutions and suggestions.


Q2: When I get this filtration box, but I don’t know how to use it. What should I do?
We will send pictures or video and English manual with the machine. If you still have some doubts, we can talk by
Telephone/ Skype / Whatsapp / Weichat/ E-mail.


Q3: If some problems happen to this filtration box during warranty period, what should I do?
We will supply free parts during machine warranty period if machine have some problems (except spare parts).
While we also supply free life long after-sales service. So any doubts, just let us know, we will give you solutions.
