Product Details:
|
| Product Name: | 15 Inches In Line Siliver CFF15 Filtration Box For Purity Molten Aluminum | Specification: | 15 Inches |
|---|---|---|---|
| No. Of Plate: | 1 | Filter Plate Porosity: | 60 PPI |
| Rated Filtration Flow T/h: | 10 | Color: | Siliver/blue Or Customized |
| Voltage: | 380V Or Customized | Power: | 30KW |
| High Light: | heavy metal filter 15 Inches,heavy metal filter CFF15 30KW,CFB cff filter ISO45001 |
||
15 Inches In line Siliver CFF15 Filtration Box for Purity Molten Aluminum
In line Siliver CFF Filter Box for Purity Molten Aluminum
Molten Aluminum On Line Filtration Plate Purity Box
1. Filter Box Introduce
The CFF Filtration Box (CFB) is widely used for molten aluminum filtration in the aluminum casting process to
prevent the particulate impurities in molten aluminum from entering the casting blank and affecting the quality of
aluminum products.
According to the quality requirements of castings, the volume of molten aluminum, the total volume of filtered
aluminum, and the cleanliness of the aluminum itself, the correct selection of the type of filter box and the specifications

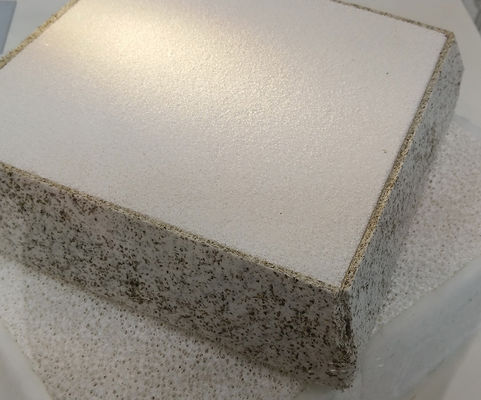

of the foam filter plate help to achieve satisfactory filtration results. With foam ceramic filter plate, the filtering effect
is better.
2. Filter Box Main Paremeter Data
| Item | Data | Remark | |
| Power Source | Phase | 3 | |
| Voltage V | 380±10% | ||
| Frequency Hz | 50 | ||
| Total Power kW | < 30 | ||
| Heating | Power kW | 60 | |
| Rated Filtration Flow t/h | 10 | ||
| Filter Plate Size | 15″*15″*2″ | ||
| Filter Plate Porosity | 60 PPI | ||
| Lining Preheating Heating Speed | ＞40℃/hr | ||
| Temperature Control | PLC＋Atmosphere, aluminum liquid temperature control | ||
| Temperature Rising of the outer shell of the box ℃ | ≤55 | Measure below 100mm on the plane of the box, except for the area within 100mm of the junction of the box chute | |
3. Models
| Size of Plate | 15’’ | 17’’ | 23’’ |
| Type | CFF-15 | CFF-17 | CFF-23 |

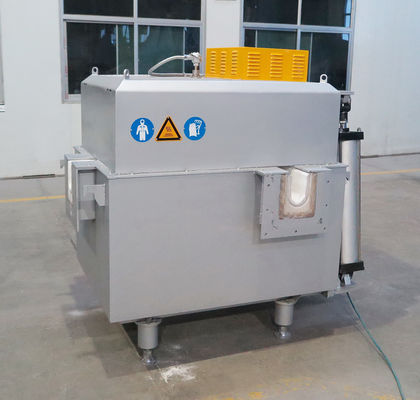

4. Reference Pictures
5. The Exhibition
6. FRQ
Q1: I know nothing about this filter plate, what kind of filter plate I should choose?
Very easy. We will email you an inquiry form for making sure your real need. Or just tell us what you want to do
by using this machine, then let us give you perfect solutions and suggestions.
Q2: When I get this filter plate, but I don’t know how to use it. What should I do?
We will send pictures or video and English manual with the machine. If you still have some doubts, we can talk by
Telephone/ Skype / Whatsapp / Weichat/ E-mail.
Q3: If some problems happen to this filter plate during warranty period, what should I do?
We will supply free parts during machine warranty period if machine have some problems (except spare parts).
While we also supply free life long after-sales service. So any doubts, just let us know, we will give you solutions.
