DBF Deep Bed Filtration Box For Producing Double Zero Aluminium Foil

DBF Deep Bed Filtration Box For Producing Double Zero Aluminium Foil
DBF Deep Bed Filtration Box For Producing Double Zero Aluminium Foil DBF Deep Bed Filtration Box For Producing Double Zero Aluminium Foil

Large Image :  DBF Deep Bed Filtration Box For Producing Double Zero Aluminium Foil

Product Details:
Place of Origin: Jinan, China
Brand Name: HYDEB
Certification: ISO9001
Model Number: DBFF-5
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: 20000-50000USD/set
Packaging Details: Standard exporting package
Delivery Time: 45 workdays
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 60 sets per year

DBF Deep Bed Filtration Box For Producing Double Zero Aluminium Foil

Description
Application: Filter Box Name: DBF Deep Bed Filtration Box For Producing Aluminium Foil, Double Zero Aluminium Foil
Material: Allied Mineral Castable Metal Flow: 8 Tons/hour
Out Shell Surface Temperature: ≤70℃ Heating: Electrical Immersed Heating Element
High Light:

DBF Deep Filtration Box

,

Allied Mineral Castable Filtration Box

,

Aluminium Foil Deep Filtration Box

DBF Deep Bed Filtration Box for Producing Aluminium Foil, Double Zero Aluminium Foil



1. Equipment Usage

-- For mass producing of the same alloy products, especially for cans, foils, PS plates, etc.

-- For producing aviation Aluminium alloy, high-purity Aluminium capacitor foil, double zero Aluminium foil;

--The flow rate range is 5-100 tons/h. Non-standard design can be carried out according to the flow rate. Generally for 75 tons, 55 tons, 35 tons, 25 tons, 10 tons and other sequences.



2. Equipment Features

  • According to the quality requirements of molten aluminium, the lining prefabricated parts of the filter box are made of corresponding high-quality castables. After high temperature pre-sintering, they have the characteristics of high strength, scour resistance, erosion resistance, no slag formation, and no sticking to Aluminium.
  • There are multiple layers of thermal insulation materials with good thermal insulation between the steel structure and the lining prefabricated parts.
  • The Deep Bed Filtration Box uses alumina balls and grit sintered by a special process as the filter medium.

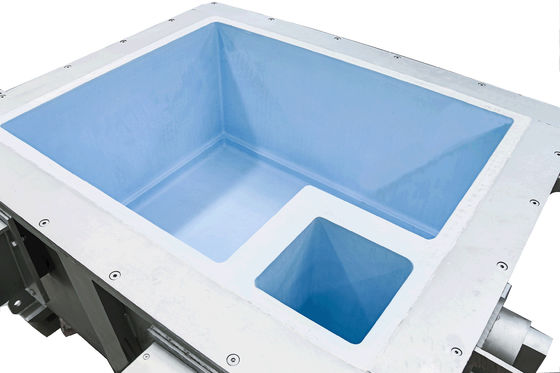

DBF Deep Bed Filtration Box For Producing Double Zero Aluminium Foil 0

3. Deep Bed Filtration Box Module



 Module



Capacity

Static Storage Metal(KG)
DBFF-5 8t/h 500
DBFF-10 10t/h 600
DBFF-15 15t/h 800
DBFF-20 20t/h 1180
DBFF-25 20t/h 1300
DBFF-30 30t/h 1400
DBFF-35 35t/h 1700
DBFF-40 40t/h 1850
DBFF-55 60t/h 3050
DBFF-80 80t/h 4250
DBFF-100 100t/h 5550

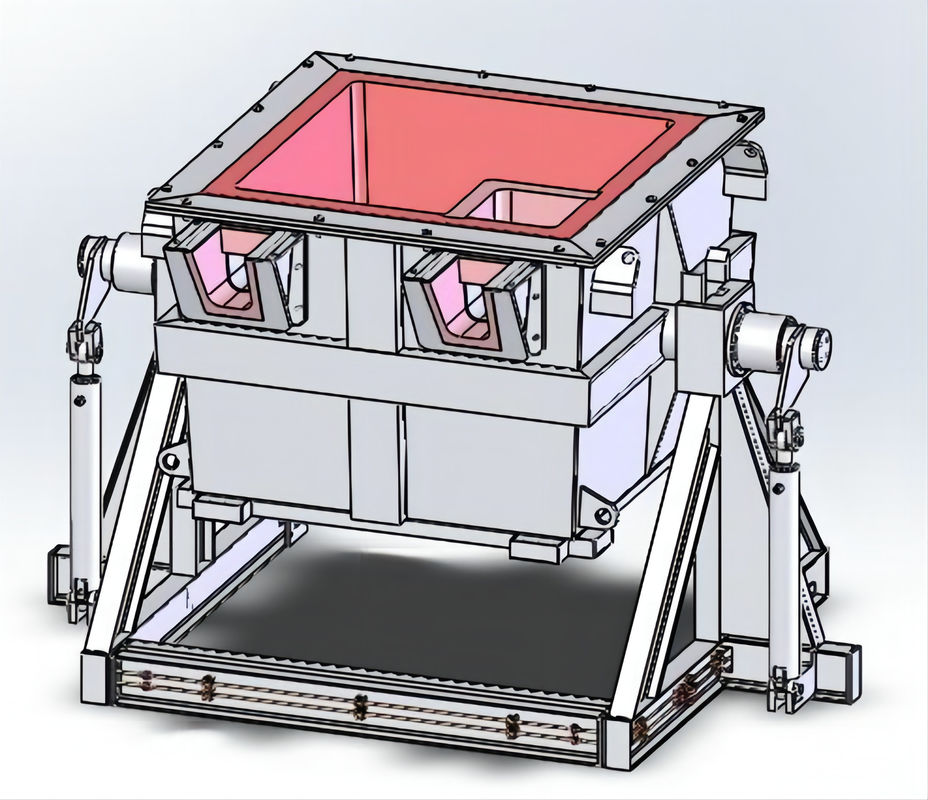

DBF Deep Bed Filtration Box For Producing Double Zero Aluminium Foil 1
