Product Details:
|
| Color: | Silver Gray | Material: | Q235 |
|---|---|---|---|
| Insulation: | Nano Tech Insulation Material, Castable, Ceramic Material | Flow Rate: | Min 3 Ton/hours |
| Filtering Efficiency: | 90% | Filtering Level: | 40PPI |
| Size: | According To Flow Rate | Launder Size: | According To Flow Rate |
| Max Temperature: | 850℃ | Outshell Surface Temperature: | 70℃ |
| Highlight: | Single Plate Foam Ceramic Filter,Refining Foam Ceramic Filter,Degassing Foam Ceramic Filter |
||
Most Widely Used High-Efficiency Filtration System
Equipment Usage
Foam ceramic filter plate filter box is widely used in the filtration of molten Aluminium in the process of Aluminium smelting and casting, filtering oxides in the molten Aluminium, preventing particulate impurities in the molten Aluminium from entering the billet and affecting the quality of the product.
A satisfactory filtering effect can be obtained throught selecting the right filtration box structure & the specification of filter plates, according to the quality requirements of the castings parts, the flow rate of molten Aluminium, the total amount of molten Aluminium filtered, and the cleanliness of the molten Aluminium itself .
Once equipped with German Drache or American SELEE foam ceramic filter plate, can get better filtering effect.
Foam ceramic filter plate filter box can be used alone or in combination with Deep Bed Filter box and Tubular Filter Box.
Equipment Size
CFB Types & Data
|
Filtration Box Type |
Module |
Filter Plate Size Inch |
Flow Rate |
Instruction |
|
Single-stage filtration box |
CFB1-12 | 12 | 2-5 |
A single filtration board is placed in the filtration box to filter out more than 85% of the inclusions with a particle size ≥8μm |
| CFB1-15 | 15 | 4-10 | ||
| CFB1-17 | 17 | 8-15 | ||
| CFB1-20 | 20 | 12-20 | ||
| CFB1-23 | 23 | 16-25 | ||
|
Horizontal two-stage filtration box |
CFB2-12/12 | 12/12 | 2-5 |
Two-stage filtration boards with different pore sizes from large to small are placed in the filtration box horizontally or vertically to filter out more than 95% of the inclusions with a particle size ≥8μm |
| CFB2-15/15 | 15/15 | 4-10 | ||
| CFB2-17/17 | 17/17 | 8-15 | ||
| CFB2-20/20 | 20/20 | 12-20 | ||
| CFB2-23/23 | 23/23 | 16-25 | ||
|
Vertical two-stage filtration box |
CFB2-15/12 | 5/12 | 2-5 | |
| CFB2-17/15 | 17/15 | 4-10 | ||
| CFB2-20/17 | 20/17 | 8-15 | ||
| CFB2-23/20 | 23/20 | 12-20 |
Equipment Features
l Significant filtration effects. It meets the production requirements of ordinary products and even the stringent production requirements of Aluminium alloy can materials, aero-metals and other relevant materials with exactingly requirement. The filtration box can effectively filter out bulk inclusions in the molten Aluminium, adsorb small inclusions in the molten Aluminium, refine the crystalline structure of castings.

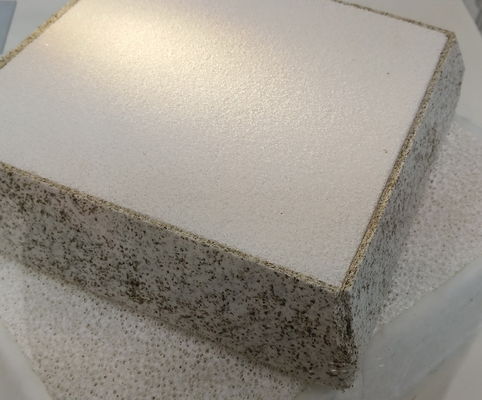

The filtering method is simple. Standardized and serialized production of the CFF filtration boards has been realized. According to the requirements of the quality of Aluminium liquid and flow rate, etc., matched with different hole sizes (20-60ppi) and a combination of filter plates, then different filtering effects can be achieved.
Economical. The filtration board has high strength and resistance to abrasion by molten Aluminium, good thermal shock resistance and a long service life. The heating cover ensures that one filtration board can be reused more than 6 times in the filtrate, thereby reducing the cost of consumables. The lining of the filtration box, similar to the degassing box, does not infiltration with Aluminium, has good temperature holding performance, cold and heat shock resistance, and a long life.

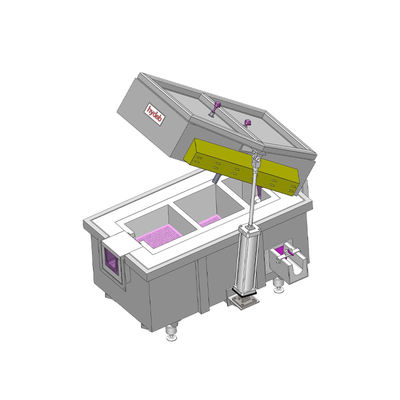

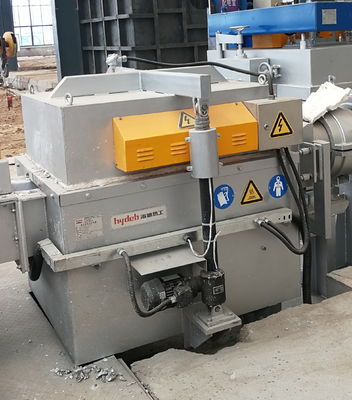

Equipment Pictures
