Molten Aluminium Plate Filter Double Plate Filtering Box In Line Slags Filtration Box

Molten Aluminium Plate Filter Double Plate Filtering Box In Line Slags Filtration Box
Molten Aluminium Plate Filter Double Plate Filtering Box In Line Slags Filtration Box Molten Aluminium Plate Filter Double Plate Filtering Box In Line Slags Filtration Box Molten Aluminium Plate Filter Double Plate Filtering Box In Line Slags Filtration Box

Large Image :  Molten Aluminium Plate Filter Double Plate Filtering Box In Line Slags Filtration Box

Product Details:
Place of Origin: Jinan, China
Brand Name: HYDEB
Certification: CE ISO9001
Model Number: CFB-2
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: 20000-50000USD/set
Packaging Details: Standard exporting package
Delivery Time: 45 workdays
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 60 sets per year

Molten Aluminium Plate Filter Double Plate Filtering Box In Line Slags Filtration Box

Description
Material: Q235 Steel, Castable Size: According To Flow Rate
Filtration Method: Ceramic Foam Plate Filtering Level: 30/40/50PPI
Color: Silver Gray, Blue, Yellow Filtration Efficiency: 90%
Filtration Level: 2 Stages Insulation: Nano Tech Insulation Material, Castable
Inner Lining: Sintered Castable Max Temperature: 850℃
High Light:

Molten Aluminium Plate Filter

,

Molten Double Plate Filter

,

Filtration Box Plate Filter

Equipment Usage

Foam ceramic filter plate filter box is widely used in the filtration of molten Aluminium in the process of Aluminium smelting and casting, filtering oxides in the molten Aluminium, preventing particulate impurities in the molten Aluminium from entering the billet and affecting the quality of the product.



A satisfactory filtering effect can be obtained throught selecting the right filtration box structure & the specification of filter plates, according to the quality requirements of the castings parts, the flow rate of molten Aluminium, the total amount of molten Aluminium filtered, and the cleanliness of the molten Aluminium itself .



Once equipped with German Drache or American SELEE foam ceramic filter plate, can get better filtering effect.



Foam ceramic filter plate filter box can be used alone or in combination with Deep Bed Filter box and Tubular Filter Box.





CFB Types & Data



Filtration Box Type

Module

Filter Plate Size Inch

Flow Rate

Instruction





Single-stage filtration box

CFB1-12 12 2-5

A single filtration board is placed in the filtration box to filter out more than 85% of the inclusions with a particle size ≥8μm

CFB1-15 15 4-10
CFB1-17 17 8-15
CFB1-20 20 12-20
CFB1-23 23 16-25



Horizontal two-stage filtration box

CFB2-12/12 12/12 2-5

Two-stage filtration boards with different pore sizes from large to small are placed in the filtration box horizontally or vertically to filter out more than 95% of the inclusions with a particle size ≥8μm

CFB2-15/15 15/15 4-10
CFB2-17/17 17/17 8-15
CFB2-20/20 20/20 12-20
CFB2-23/23 23/23 16-25



Vertical two-stage filtration box

CFB2-15/12 5/12 2-5
CFB2-17/15 17/15 4-10
CFB2-20/17 20/17 8-15
CFB2-23/20 23/20 12-20



Equipment Features



l Significant filtration effects. It meets the production requirements of ordinary products and even the stringent production requirements of Aluminium alloy can materials, aero-metals and other relevant materials with exactingly requirement. The filtration box can effectively filter out bulk inclusions in the molten Aluminium, adsorb small inclusions in the molten Aluminium, refine the crystalline structure of castings.



The filtering method is simple. Standardized and serialized production of the CFF filtration boards has been realized. According to the requirements of the quality of Aluminium liquid and flow rate, etc., matched with different hole sizes (20-60ppi) and a combination of filter plates, then different filtering effects can be achieved.



Economical. The filtration board has high strength and resistance to abrasion by molten Aluminium, good thermal shock resistance and a long service life. The heating cover ensures that one filtration board can be reused more than 6 times in the filtrate, thereby reducing the cost of consumables. The lining of the filtration box, similar to the degassing box, does not infiltration with Aluminium, has good temperature holding performance, cold and heat shock resistance, and a long life.



Equipment Pictures

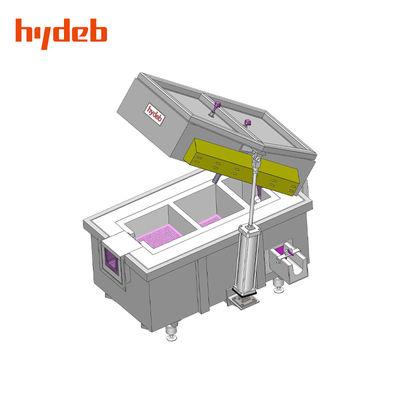

Molten Aluminium Plate Filter Double Plate Filtering Box In Line Slags Filtration Box 0

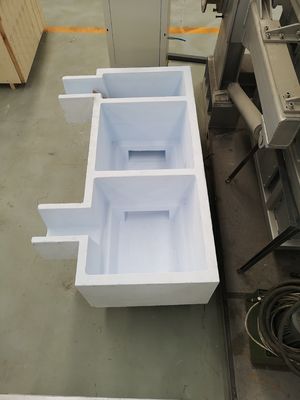

Molten Aluminium Plate Filter Double Plate Filtering Box In Line Slags Filtration Box 1

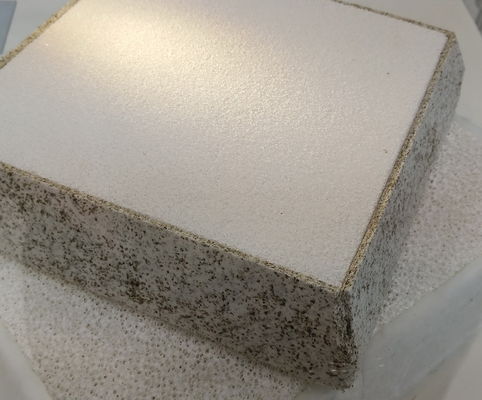

Molten Aluminium Plate Filter Double Plate Filtering Box In Line Slags Filtration Box 2
