Molten Aluminium Melting And Holding Furnace With Great Thermal Insulation Layer

Molten Aluminium Melting And Holding Furnace With Great Thermal Insulation Layer
Molten Aluminium Melting And Holding Furnace With Great Thermal Insulation Layer
Molten Aluminium Melting And Holding Furnace With Great Thermal Insulation Layer Molten Aluminium Melting And Holding Furnace With Great Thermal Insulation Layer Molten Aluminium Melting And Holding Furnace With Great Thermal Insulation Layer Molten Aluminium Melting And Holding Furnace With Great Thermal Insulation Layer Molten Aluminium Melting And Holding Furnace With Great Thermal Insulation Layer

Large Image :  Molten Aluminium Melting And Holding Furnace With Great Thermal Insulation Layer

Product Details:
Place of Origin: Jinan, China
Brand Name: Hydeb
Certification: CE ISO9001
Model Number: HJB-600
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 5000-30000/set
Packaging Details: Iron frame
Delivery Time: 40 workdays
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100 set per month

Molten Aluminium Melting And Holding Furnace With Great Thermal Insulation Layer

Description
Castable: Allied Minerals Material: Q235, Castable, Insulation
Color: Silver Gray Capacity: 500-15000KGS
Insulation: Nano Tech Insulation, Ceramic Fiber, Light Weight Fire Proof Brick Temperature Holding: Less Than 10℃/hour
Moving Method: Crane, Forklift Safety: No Leakage
Heating: Ladle Preheater
High Light:

molten aluminium melting and holding furnace

,

15000kgs aluminium melting and holding furnace

,

thermal insulation melting and holding furnace

Equipment Introduction
• The molten aluminum transfer ladle is mostly used for long-distance safe transportation of molten aluminum to an aluminum casting factory.

Natural temperature drop of molten aluminum ≤10℃/h!!



Equipment Features
• No molten aluminum leakage, high transportation safety. The ladle body is firm; the ladle lip and cover are reliably sealed, no any overflow of the molten aluminum even if the ladle body topples over.
• Excellent thermal insulation performance, low natural temperature drop. The thermal insulation layer, made of a heat-insulating Nano-fibrous material, has excellent thermal insulation performance; made of a special material and specially structured, the working layer (in contact with the molten aluminum) prevents the molten aluminum from leaking. The ladle surface has low surface temperature, suitable for long-distance transportation.
• Low weight, transportation cost-saving. The lightweight heat-insulating Nano-material ensures a small ladle body size and a low ladle body weight.
• Excellent non-stickiness with molten aluminum, easy to clean. The inner layer of the lining, made of a dedicated refractory casting material, has good aluminum tolerance and high resistance to corrosion with molten aluminum.
• High resistance to thermal and cold shocks, high strength. The dedicated high-strength ladle lining can resist frequent thermal shocks without falling off.
• A long service life. Professionally designed and manufactured, ensuring that the lining life is more than 24 months in continuous use.
• Optional opening and closing auxiliary device (optional), saving effort when open and close the cover.



• Molded by monolithic casting with a refractory casting material specially used for aluminum alloy ladle production, the inner layer of the ladle lining is poorly permeable to the molten aluminum, so it offers high resistance to corrosion by the molten aluminum.
• Made from an insulating castable or nano-fibrous material, the temperature holding layer has excellent performance and low natural drop in temperature.

• Sturdy cladding. The cladding is professionally produced according to the technical conditions of ladles. Equipped with a welded bottom hoop, bilge hoop, upper mouth hoop and collar, it has a longer service life and can ensure safety.



Main Parameters



Items Parameters Remarks
Maximum temperature of molten aluminum 800℃
Maximum ladle lining temperature 900℃
Natural temperature drop of molten aluminum ≤10℃/h For a 7000-kg ladle; the lower the capacity, the higher the figure
Ladle surface temperature ≤80℃
Ladle capacity 6,000-15,000 kg The specific gravity of molten aluminum is set to 2.5t/m3
Ladle body weight   According to capacity


Notes: Customizable according to customer needs.

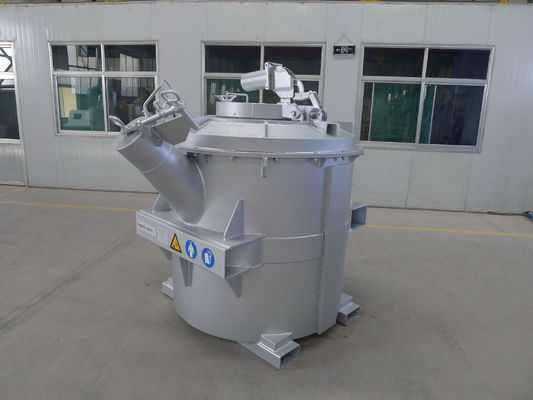

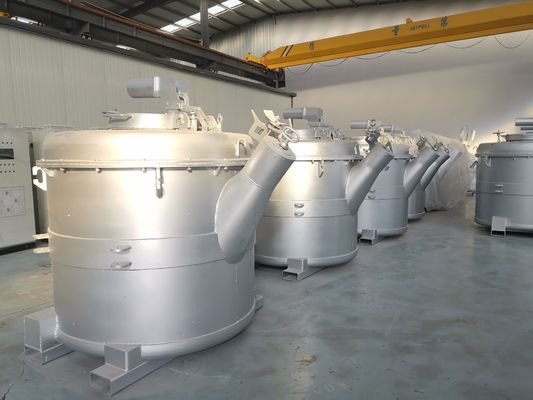

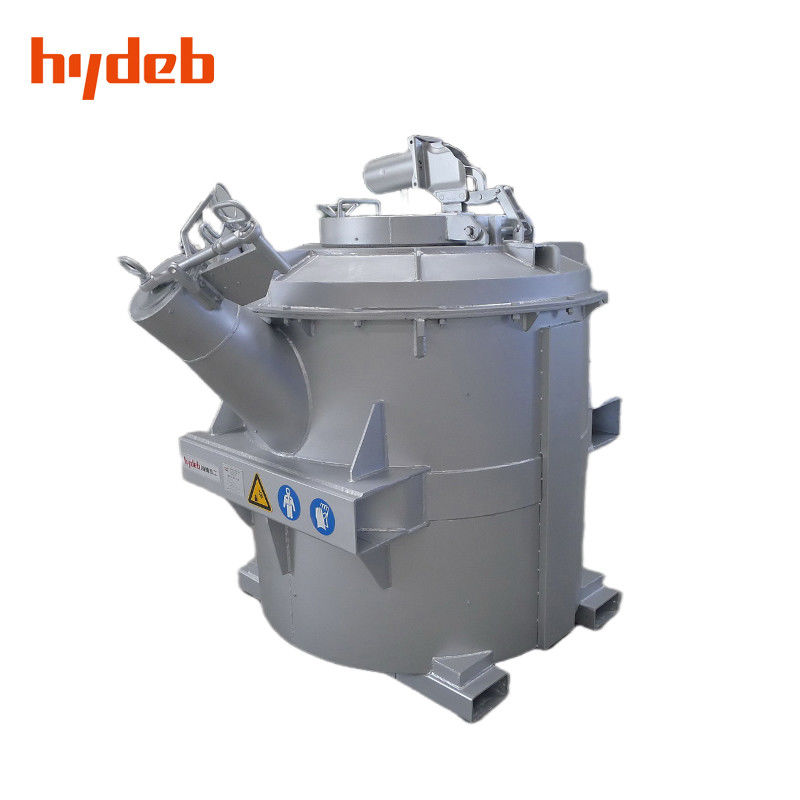

Equipment pictures

Molten Aluminium Melting And Holding Furnace With Great Thermal Insulation Layer 0Molten Aluminium Melting And Holding Furnace With Great Thermal Insulation Layer 1Molten Aluminium Melting And Holding Furnace With Great Thermal Insulation Layer 2Molten Aluminium Melting And Holding Furnace With Great Thermal Insulation Layer 3Molten Aluminium Melting And Holding Furnace With Great Thermal Insulation Layer 4
