Molten Aluminum Pouring Transfer Ladles 1500KG Capacity For Aluminum Foundry

Certification
China Jinan Hydeb Thermal Tech Co., Ltd. certification
China Jinan Hydeb Thermal Tech Co., Ltd. certification
I'm Online Chat Now

Molten Aluminum Pouring Transfer Ladles 1500KG Capacity For Aluminum Foundry

Molten Aluminum Pouring Transfer Ladles 1500KG Capacity For Aluminum Foundry
Molten Aluminum Pouring Transfer Ladles 1500KG Capacity For Aluminum Foundry
Molten Aluminum Pouring Transfer Ladles 1500KG Capacity For Aluminum Foundry Molten Aluminum Pouring Transfer Ladles 1500KG Capacity For Aluminum Foundry Molten Aluminum Pouring Transfer Ladles 1500KG Capacity For Aluminum Foundry Molten Aluminum Pouring Transfer Ladles 1500KG Capacity For Aluminum Foundry

Large Image :  Molten Aluminum Pouring Transfer Ladles 1500KG Capacity For Aluminum Foundry

Product Details:
Place of Origin: China
Brand Name: Hydeb
Certification: CE,ISO9001,ISO14001,IS45001, High-tech Enterprise, Intellectual Property, Patents
Model Number: HLB-150
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: $ 10000-$50000/set
Packaging Details: Pallet or Wooden Case
Delivery Time: 30 working days
Payment Terms: T/T
Supply Ability: 100 sets per year

Molten Aluminum Pouring Transfer Ladles 1500KG Capacity For Aluminum Foundry

Description
Key Name: Molten Aluminum Pouring Transfer Ladles 1500KG Capacity For Aluminum Foundry Material: Refractory
Color: Grey MOQ: 1 Set
Warranty Time: 1 Year
High Light:

Molten Aluminum Pouring Transfer Ladles

,

1500KG Aluminum Pouring Transfer Ladles

,

Foundry Aluminum Pouring Transfer Ladles

Molten Aluminum Pouring Transfer Ladles 1500KG Capacity For Aluminum Foundry​



Road Molten Aluminum Transfer Ladles for Producing Aluminum Ingot



1. Transfer Ladle Application



Molten Aluminium Transfer Ladle is a refractory product, which is basically used for molten metal transfer.

Ladles enable molten aluminium to be held at temperature for extended periods, keeping metal clean.



2. Ladle Specification Data



Items Parameters Remarks
Maximum temperature of molten aluminum 800℃
Maximum ladle lining temperature 900℃
Natural temperature drop of molten aluminum ≤18℃/h For a 500-kg ladle; the lower the capacity, the higher the figure
Ladle shell surface temperature ≤50℃
Ladle capacity 3000 KG The specific gravity of molten aluminum is set to 2.5t/m3
Ladle body weight   Around 4500KG



3. Ladle Characteristic



-- Smooth Tilting Mechanism

-- Less Skin temperature

-- Long Refractory life

-- Maintenance free

-- Easy Handling





4. Transfer Ladle Advantages



1 Increased metal quality
2 Lower energy costs
3 Improved process efficiency
4 Reduced downtime and replacement costs
5 Customized designs

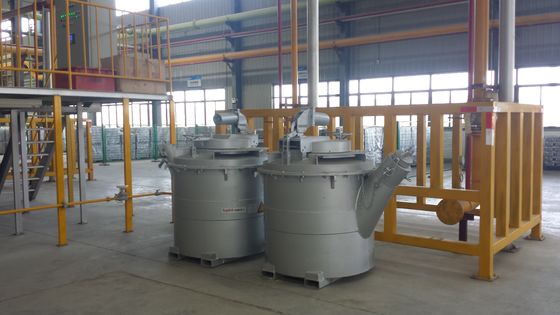

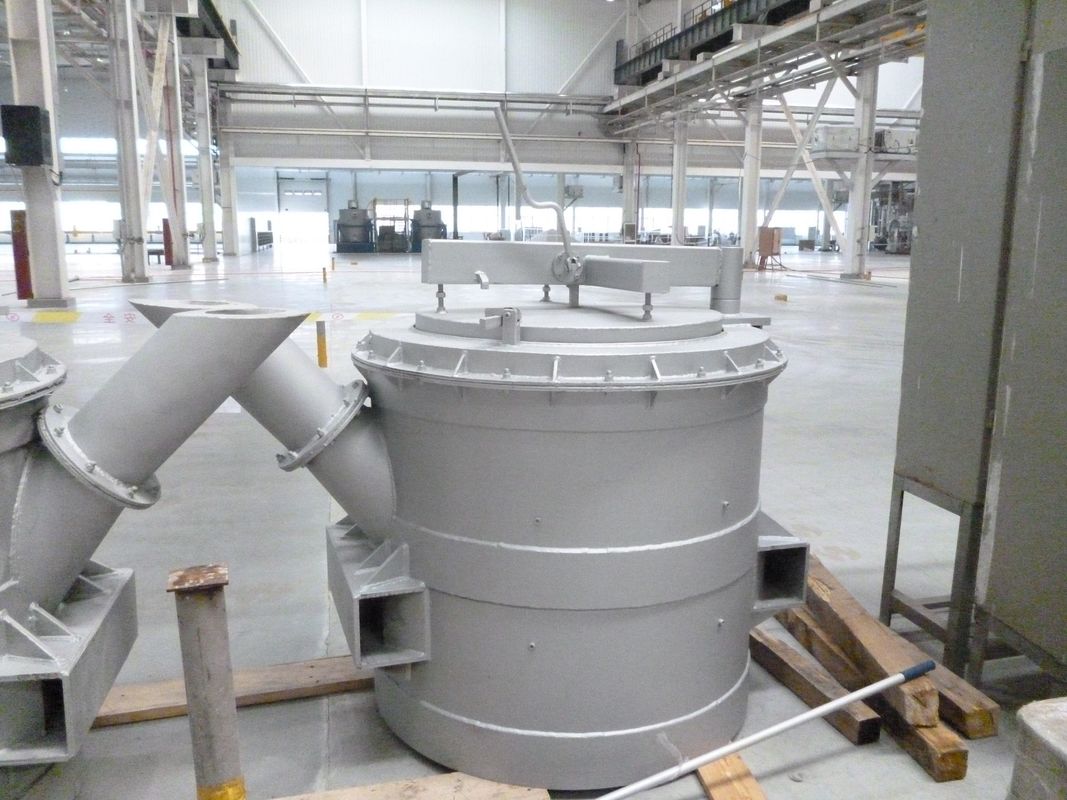

5.  Ladle Pictures



Molten Aluminum Pouring Transfer Ladles 1500KG Capacity For Aluminum Foundry 0

Molten Aluminum Pouring Transfer Ladles 1500KG Capacity For Aluminum Foundry 1



6. Modles



Type HLB-15 HLB-20 HLB-30 HLB-50 HLB-80 HLB-100 HLB-120 HLB-300
Capacity 150KG 200KG 300KG 500KG 800KG 1000KG 1200KG 3000KG

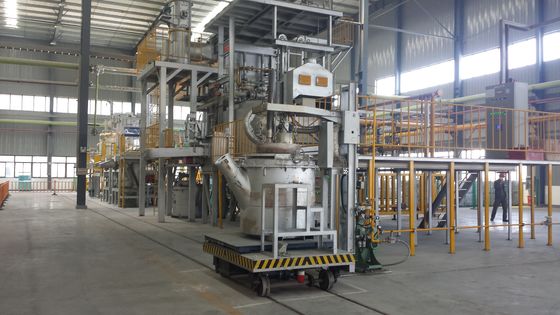

7. Our Delivery



Molten Aluminum Pouring Transfer Ladles 1500KG Capacity For Aluminum Foundry 2





8.  CE Certification

Molten Aluminum Pouring Transfer Ladles 1500KG Capacity For Aluminum Foundry 3
