Rotary Speed Fixed Type Degassing Unit Of Aluminum Foundry 400 - 600rpm

Certification
China Jinan Hydeb Thermal Tech Co., Ltd. certification
China Jinan Hydeb Thermal Tech Co., Ltd. certification
I'm Online Chat Now

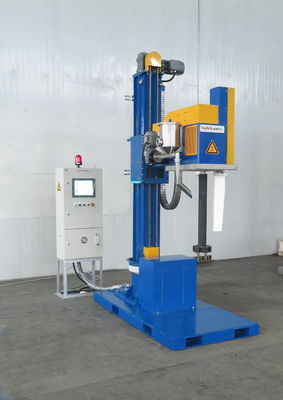

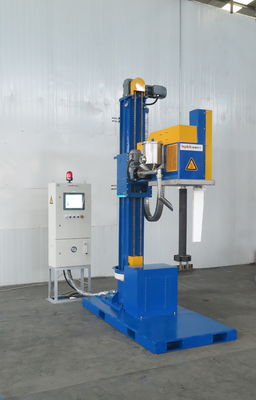

Rotary Speed Fixed Type Degassing Unit Of Aluminum Foundry 400 - 600rpm

Rotary Speed Fixed Type Degassing Unit Of Aluminum Foundry 400 - 600rpm
Rotary Speed Fixed Type Degassing Unit Of Aluminum Foundry 400 - 600rpm
Rotary Speed Fixed Type Degassing Unit Of Aluminum Foundry 400 - 600rpm Rotary Speed Fixed Type Degassing Unit Of Aluminum Foundry 400 - 600rpm Rotary Speed Fixed Type Degassing Unit Of Aluminum Foundry 400 - 600rpm

Large Image :  Rotary Speed Fixed Type Degassing Unit Of Aluminum Foundry 400 - 600rpm

Product Details:
Place of Origin: China
Brand Name: Hydeb
Certification: CE,ISO9001,ISO14001,IS45001,High-tech Enterprise,Intellectual Property,Patents
Model Number: XCP220A
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $ 15000-$30000/set
Packaging Details: Wooden Case or Pallet
Delivery Time: 45 working days
Payment Terms: T/T
Supply Ability: 50 sets per year

Rotary Speed Fixed Type Degassing Unit Of Aluminum Foundry 400 - 600rpm

Description
Name: 400-600rpm Rotary Speed Fixed Type Degassing Unit Of Aluminum Foundry Rotor Material: Graphite Or Silicon Nitrid
Color: Blue Or Customized Refining Gas: High Purity Nitrogen Or Argon
Granularity Size: ≤ 5 Mm Degassing Speed: 0-600 Rpm Adjustable
High Light:

600rpm Rotary Degassing Unit

,

Fixed Type Rotary Degassing Device

,

Fixed Type Degassing Unit

400-600rpm Rotary Speed Fixed Type Degassing Unit of Aluminum Foundry

With Graphite Rotor and Shaft Rotary Degassing Device



As Hydrogen gas leaves the solidifying metal, it leaves tracks in the metal in the form of porosity. Such porous Aluminium castings are not acceptable in the industry for obvious reasons. To avoid this kind of porosity, it is important to degas the metal before it is poured into moulds for solidifying. It is therefore important to determine the extent of Hydrogen present in liquid Aluminium. And the degassing unit for aluminum foundry is important.




1.  ​Degassing Unit Technical Data



Item Data Mark
Refining Gas Purity % ≥99.996 High Purity Nitrogen or Argon
Moisture ppm ≤ 3
O2 ppm ≤ 5
Pressure MPa 0.1-0.6 Adjustable
Flow L/min 15~30 Adjustable
Refining Flux Granularity mm ≤5
Powder Spraying g/min 0~350 Adjustable
Power Phrase 3
Voltage V 380±10%
Frequency Hz 50
Total Power kW < 3
Motor for Rotary Shaft Rotating Power kW 1.1 For driving graphite rotation shaft to rotate
Motor for Hanger Arm Lifting up & down Power kW 1.1 For Hanger Arm Lifting up & down
Motor for Arm Rotation Power kW 0.4 For driving the hanger arm

rotation
Motor for Filling Fluxing Device Power kW 0.12 For filling refining flux
Graphite Rotor Speed r/min 0-600 VVVF adjustable
Refining Degassing Time min 0~99 Time Adjustable
Graphite Shaft Size Dia. Φ mm 80
Length mm According the design
Graphite Rotor Size Dia. Φ mm According the design
Length mm
Graphite Baffle Size Length mm
Width mm
Thickness mm
Number of Graphite Baffle 1
Weight kg About 600 According to actual production


2.  Hydeb Company Introduce



Founded in January 2003, the Jinan HYDEB Thermal Tech Co., Ltd. is located in Jinan High-tech Development Zone.
The Company mainly produces molten aluminum refining and degassing units, molten aluminum transfer ladles and
holding crucible furnaces, which are sold to well-known corporations in the industry at home and abroad, meeting their
high requirements for product safety and advancement.



3.  Hydeb Clients

Rotary Speed Fixed Type Degassing Unit Of Aluminum Foundry 400 - 600rpm 0

4. Degassing Unit  Application


•  Aluminium foundries
•  Aluminium holding and transfer vessels (crucibles, furnaces, ladles)


5.
Degassing Unit Benefits


•  Continuous operation
•  Accurate flux injection under the metal level
•  Programmable Logic Controller (PLC) monitors and controls operation
•  Variable speed electric motor
•  Auto-timer and flashing light notify the operator when the cycle is done
•  Automatic mode settings provide repeatable results and efficiency
•  Efficiently uses flux, nitrogen or argon
•  Process gas flow meter
•  Self-checking diagnostics
•  Password protected cycle parameters
•  Degassing system can rotate around the support column (optional)

•  Cooling air blower prevents overheating

6. Models



Structure Stationary type Mobile Type Suspending Type Stationary type
Type XCP230-1 XC210-1 XCP100-1

XCP230A


7. Reference Pictures


Rotary Speed Fixed Type Degassing Unit Of Aluminum Foundry 400 - 600rpm 1



8. Our Strengths

Rotary Speed Fixed Type Degassing Unit Of Aluminum Foundry 400 - 600rpm 2



9. CE Certificaiton



Rotary Speed Fixed Type Degassing Unit Of Aluminum Foundry 400 - 600rpm 3
