Launder In Line Aluminium Degassing Device 0.12ml/100g For Aluminium Billets

Certification
China Jinan Hydeb Thermal Tech Co., Ltd. certification
China Jinan Hydeb Thermal Tech Co., Ltd. certification
I'm Online Chat Now

Launder In Line Aluminium Degassing Device 0.12ml/100g For Aluminium Billets

Launder In Line Aluminium Degassing Device 0.12ml/100g For Aluminium Billets
Launder In Line Aluminium Degassing Device 0.12ml/100g For Aluminium Billets
Launder In Line Aluminium Degassing Device 0.12ml/100g For Aluminium Billets Launder In Line Aluminium Degassing Device 0.12ml/100g For Aluminium Billets Launder In Line Aluminium Degassing Device 0.12ml/100g For Aluminium Billets

Large Image :  Launder In Line Aluminium Degassing Device 0.12ml/100g For Aluminium Billets

Product Details:
Place of Origin: China
Brand Name: Hydeb
Certification: CE,ISO9001,ISO14001,IS45001,High-tech Enterprise,Intellectual Property,Patents
Model Number: LDU-II
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $30000-$60000/set
Packaging Details: Wooden Case or Pallet
Delivery Time: 50 working days
Payment Terms: T/T
Supply Ability: 20 sets per year

Launder In Line Aluminium Degassing Device 0.12ml/100g For Aluminium Billets

Description
Key Words: Launder In Line Aluminium Degassing Device 0.12ml/100g For Aluminium Billets Application: On Line Purity Molten Aluminum
Rotor Material: Graphite Rotor Thermalcouple: Yes
Rotor: 2 Warranty Time: 1 Year
Degassing Effect: ≤0.12ml/100g-Al Color: Siliver/blue Or Customized
High Light:

Launder In Line Aluminium Degassing

,

0.12ml/100g Aluminium Degassing

,

Launder In Line Aluminum Degassing

Launder In Line Aluminium Degassing Device 0.12ml/100g For Aluminium Billets



Molten Aluminium Launder Type  Double Graphite Rotor Ln-line Rotory Degassing Equipment



1. Hydeb Company Instruction



-- Hydeb Degassing Device Established in January 2003, and now has 56 employees

-- Sales of 50 million RMB in 2021

-- Focus on one industry -- "aluminum casting"

-- Hydeb Has a complete product line of aluminum casting equipment, all products are independent research

and development, manufacturing

-- Hydeb aluminum melting and holding, transportation, ladle preheating, aluminum liquid refining, aluminum liquid

hydrogen measurement, until aluminum solution aging treatment equipment



2.  Degassing Device Application



The LDU has higher degassing efficiency because degassing rotors are mounted between the melting furnace and casting machine in the length direction of the launder and the degassing zone is partitioned into several parts for multilevel in-line degassing. The number of rotors depends on the flow rate of molten aluminum



3. Degassing Device Paremeters



Items  Degassing Device Parameters
Maximum temperature of molten aluminum 750℃
Launder shell surface temperature ≤60℃
Launder lining life ≥12 months
Rotor speed 100-600rpm
Inert gases High-purity N2, high-purity Ar
Degassing efficiency

When it is not greater than the maximum flow rate, the inlet hydrogen content is ≤0.30ml / 100gAl, when the aluminum liquid is 700-740 ℃, the hydrogen content after degassing is ≤0.22ml / 100g

-Degassing efficiency≥35% when hydrogen content at the inlet>0.30ml/100g-Al.

Power supply 380V AC 50Hz, ≤10KVA



4. Models



No. Of Rotor 1 2 3 4
Type LDU-I LDU-II LDU-III



LDU-IV






5. Pictures

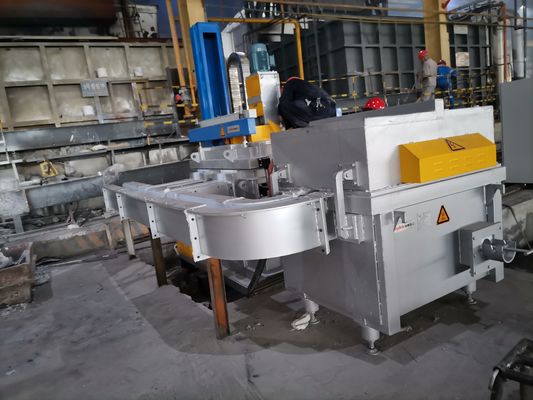

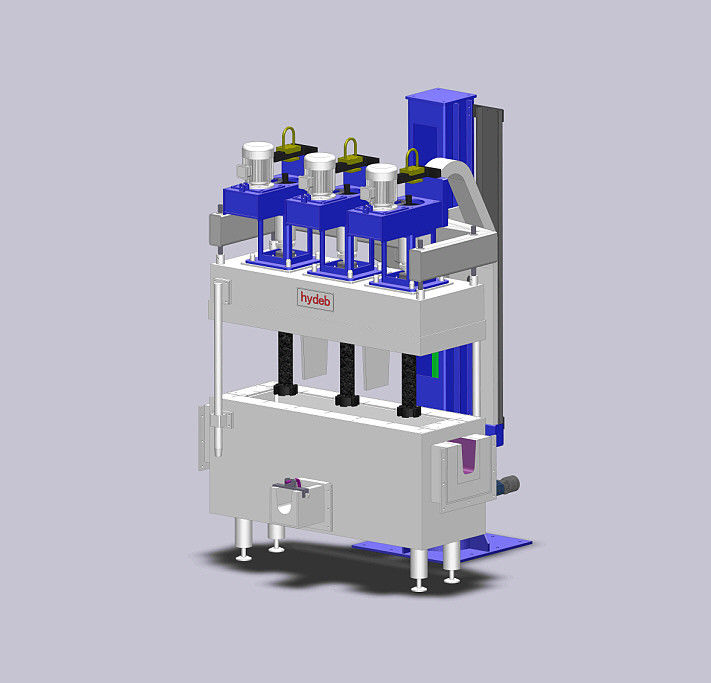

Launder In Line Aluminium Degassing Device 0.12ml/100g For Aluminium Billets 0



6. FRQ



Q1: I know nothing about this machine, what kind of machine I should choose?
Very easy. We will email you an inquiry form for making sure your real need. Or just tell us what you want to
do by using this machine, then let us give you perfect solutions and suggestions.


Q2: When I get this machine, but I don’t know how to use it. What should I do?
We will send pictures or video and English manual with the machine. If you still have some doubts, we can talk by
Telephone/ Skype / Whatsapp / Weichat/ E-mail.


Q3: If some problems happen to this machine during warranty period, what should I do?
We will supply free parts during machine warranty period if machine have some problems (except spare parts).
While we also supply free life long after-sales service. So any doubts, just let us know, we will give you solutions.



7. Packing

Launder In Line Aluminium Degassing Device 0.12ml/100g For Aluminium Billets 1
