Product Details:
|
| Products Name: | Mobile With Wheels Blue Rotary Degasser Device For Aluminum Alloy Casting | Rotor Material: | Graphite |
|---|---|---|---|
| MOQ: | 1 Set | Color: | Green |
| Max. Speed: | 600 Rpm | Granularity: | ≤5 Mm |
| High Light: | Rotary Degassing Unit for aluminum ladles,600 rpm Rotary Degassing Unit,process to refine aluminium air blower |
||
Mobile With Wheels Blue Rotary Degasser Device For Aluminum Alloy Casting
With Wheels and Graphite Rotor and Shafts Rotary Degassing Machines
1. Degasser Device Function
Rotary degassing devices (impeller devices) are suitable for scavenging gas treatments
in the crucible or in the ladle between the furnace and casting location
• For puirity molten aluminum in the Aluminium foundries area
• Inside Aluminium holding and transfer vessels (crucibles, furnaces, ladles)
2. Degasser Device Merits
• Continuous operation
• Accurate flux injection under the metal level
• Programmable Logic Controller (PLC) monitors and controls operation
• Variable speed electric motor
• Auto-timer and flashing light notify the operator when the cycle is done
• Automatic mode settings provide repeatable results and efficiency
• Efficiently uses flux, nitrogen or argon
• Process gas flow meter
• Self-checking diagnostics
• Password protected cycle parameters
• Degassing system can rotate around the support column (optional)
• Cooling air blower prevents overheating
3. Degasser Device Technical Data
| Item | Data | Mark | |
| Refining Gas | Purity % | ≥99.996 | High Purity Nitrogen or Argon |
| Moisture ppm | ≤ 3 | ||
| O2 ppm | ≤ 5 | ||
| Pressure MPa | 0.1-0.6 Adjustable | ||
| Flow L/min | 15～30 Adjustable | ||
| Refining Flux | Granularity mm | ≤5 | |
| Powder Spraying g/min | 0～350 Adjustable | ||
| Power | Phrase | 3 | |
| Voltage V | 380±10% | ||
| Frequency Hz | 50 | ||
| Total Power kW | < 3 | ||
| Motor for Rotary Shaft Rotating | Power kW | 1.1 | For driving graphite rotation shaft to rotate |
| Motor for Hanger Arm Lifting up & down | Power kW | 1.1 | For Hanger Arm Lifting up & down |
| Motor for Arm Rotation | Power kW | 0.4 |
For driving the hanger arm rotation |
| Motor for Filling Fluxing Device | Power kW | 0.12 | For filling refining flux |
| Graphite Rotor Speed r/min | 0-600 | VVVF adjustable | |
| Refining Degassing Time min | 0～99 | Time Adjustable | |
| Graphite Shaft Size | Dia. Φ mm | 80 | |
| Length mm | According the design | ||
| Graphite Rotor Size | Dia. Φ mm |
According the design
|
|
| Length mm | |||
| Graphite Baffle Size | Length mm | ||
| Width mm | |||
| Thickness mm | |||
| Number of Graphite Baffle | 1 | ||
| Weight kg | About 600 | According to actual production | |
4. Degasser Device Models
| Structure | Stationary type | Mobile Type | Suspending Type | Mobile Type |
| Type | XCP230-1 | XC210-1 | XCP100-1 |
XCP210A |

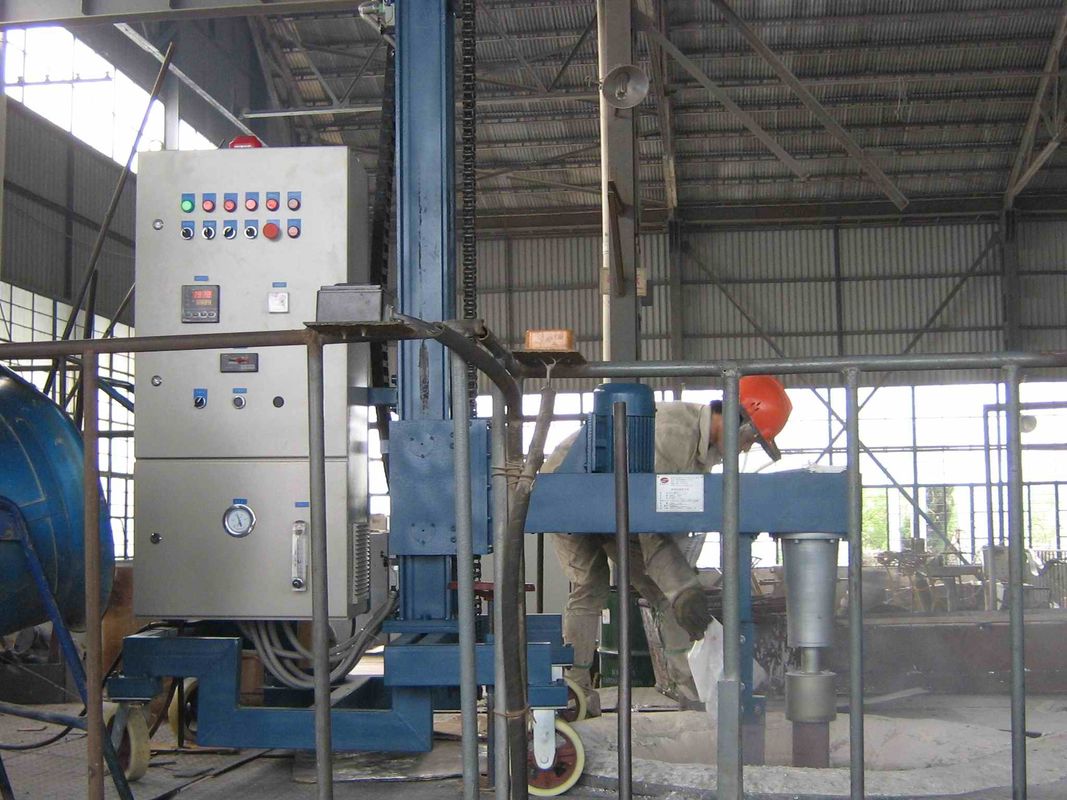

5. Reference Pictures
6. Company Profile
Jinan Hydeb Thermal Tech Co., Ltd was established in January 2003, and now has 56 employees,among which
there are 8 technical engineers.
The sales in 2020 is 50 million RMB.
Hydeb focus on one industry -- "aluminum casting".
Hydeb has a complete product line of aluminum casting equipment, all products are independent research and development, manufacturing
-- aluminum melting and holding, transportation, ladle preheating, aluminum liquid refining, aluminum liquid hydrogen measurement, until aluminum solution aging treatment equipments.
7. FRQ
Q1: I know nothing about this machine, what kind of machine I should choose?
Very easy. We will email you an inquiry form for making sure your real need. Or just tell us what you want to do by
using this machine, then let us give you perfect solutions and suggestions.
Q2: When I get this machine, but I don’t know how to use it. What should I do?
We will send pictures or video and English manual with the machine. If you still have some doubts, we can talk by
Telephone/ Skype / Whatsapp / Weichat/ E-mail.
Q3: If some problems happen to this machine during warranty period, what should I do?
We will supply free parts during machine warranty period if machine have some problems (except spare parts).
While we also supply free life long after-sales service. So any doubts, just let us know, we will give you solutions.
