Forklift Tea Spout Ladle For Aluminum Casting Pouring Ladles 10C

Forklift Tea Spout Ladle For Aluminum Casting Pouring Ladles 10C
Forklift Tea Spout Ladle For Aluminum Casting Pouring Ladles 10C
Forklift Tea Spout Ladle For Aluminum Casting Pouring Ladles 10C Forklift Tea Spout Ladle For Aluminum Casting Pouring Ladles 10C Forklift Tea Spout Ladle For Aluminum Casting Pouring Ladles 10C

Large Image :  Forklift Tea Spout Ladle For Aluminum Casting Pouring Ladles 10C

Product Details:
Place of Origin: China
Brand Name: Hydeb
Certification: CE,ISO9001,ISO14001,IS45001, High-tech Enterprise, Intellectual Property, Patents
Model Number: HLB-120
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: $ 10000-$50000/set
Packaging Details: Pallet or Wooden Case
Delivery Time: 30 working days
Payment Terms: T/T
Supply Ability: 100 sets per year

Forklift Tea Spout Ladle For Aluminum Casting Pouring Ladles 10C

Description
Name: Long Distance Forklift Tea-pot Type Siliver Transfer Ladles For Transporting Aluminium Liquid Distance: Within 1000M
Color: Siliver Usage: Transporting Molten Aluminum
Raw Material: Castable Lining Temperature Drop: Less Than 10 ℃
High Light:

tea spout ladle for aluminum casting

,

Forklift tea spout ladle 10C

,

aluminum pouring ladles bidirectional reversibility

Long Distance Forklift Tea-pot Type Siliver Transfer Ladles for Transporting Aluminium Liquid
Molten Aluminum Transfer Ladles for Transfer Aluminum Liquid

The rotation center is selected reasonably, which is easy to operate and can be reused after pouring.
Double worm gear pair transmission is adopted. Although the manufacturing requirements are high,
the transmission is flexible and free, and the bidirectional reversibility is good.



Molten Aluminium Transfer Ladle is a refractory product, which is basically used for molten metal transfer.
Ladles enable molten aluminium to be held at temperature for extended periods, keeping metal clean. Our
transfer ladle having gear box for smooth tilting & ladle having refractory lining of non wetting castable

1. Transfer Ladle Introduce
Molten Aluminium Transfer Ladle is a refractory product, which is basically used for molten metal transfer.
Ladles enable molten aluminium to be held at temperature for extended periods, keeping metal clean.
2.   Company Introduce

Hydeb has a complete product line of aluminum casting equipment, all products are independent research
and development, manufacturing
-- aluminum melting and holding, transportation, ladle preheating, aluminum liquid refining, aluminum liquid
hydrogen measurement, until aluminum solution aging treatment equipment

3.  Transfer Ladle Technical Data



ItemsParametersRemarks
Maximum temperature of molten aluminum800℃
Maximum ladle lining temperature900℃
Natural temperature drop of molten aluminum≤18℃/hFor a 500-kg ladle; the lower the capacity, the higher the figure
Ladle shell surface temperature≤50℃
Ladle capacity1200 KGThe specific gravity of molten aluminum is set to 2.5t/m3
Ladle body weight Around 1500KG


4. Transfer Ladle Merits

-- Smooth Tilting Mechanism

-- Less Skin temperature

-- Long Refractory life

-- Maintenance free

-- Easy Handling




5. Tranbsfer Ladle Advantages



1 Increased metal quality
2Lower energy costs
3Improved process efficiency
4Reduced downtime and replacement costs
5Customized designs



6.  Pictures

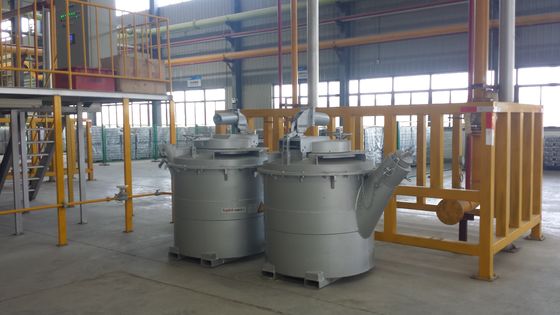

Forklift Tea Spout Ladle For Aluminum Casting Pouring Ladles 10C 0

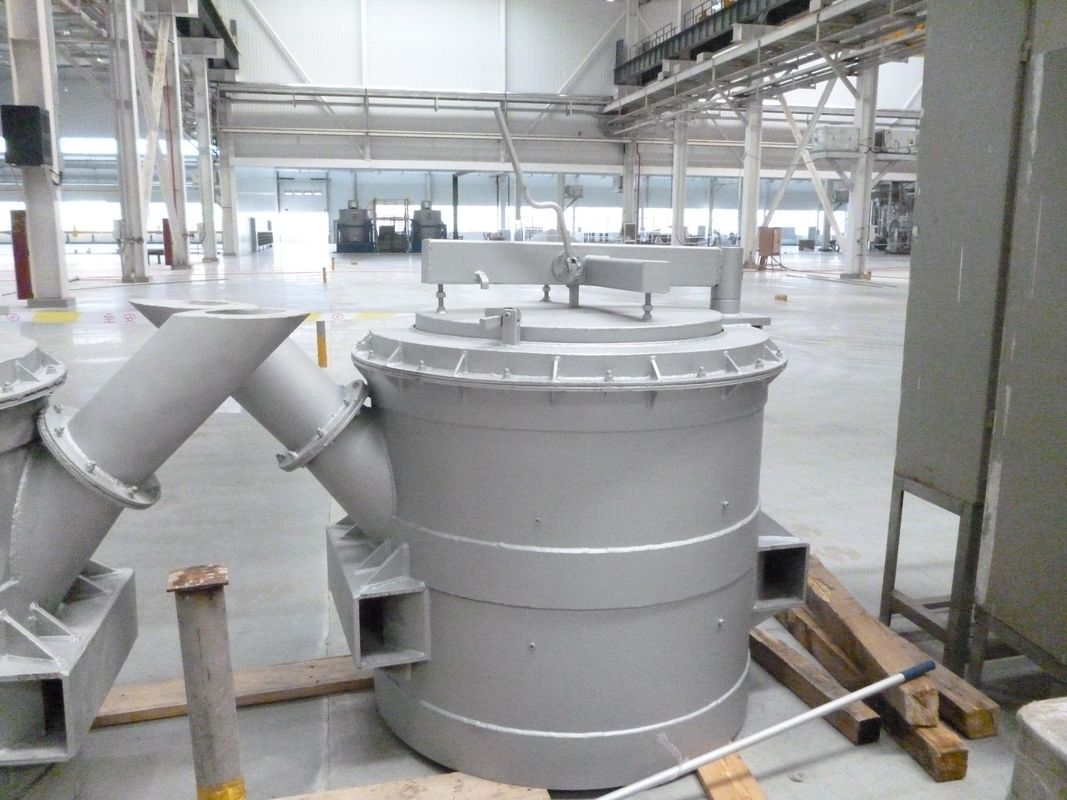

Forklift Tea Spout Ladle For Aluminum Casting Pouring Ladles 10C 1

6.  FRQ
Q1: I know nothing about this ladles, what kind of ladles I should choose?
Very easy. We will email you an inquiry form for making sure your real need. Or just tell us what you want to
do by using this machine, then let us give you perfect solutions and suggestions.


Q2: When I get this ladles, but I don’t know how to use it. What should I do?
We will send pictures or video and English manual with the machine. If you still have some doubts, we can talk
by Telephone/ Skype / Whatsapp / Weichat/ E-mail.


Q3: If some problems happen to this ladles during warranty period, what should I do?
We will supply free parts during machine warranty period if machine have some problems (except spare parts).
While we also supply free life long after-sales service. So any doubts, just let us know, we will give you solutions.



7.  Modles


TypeHLB-15HLB-20HLB-30HLB-50HLB-80HLB-100HLB-120HLB-150
Capacity150KG200KG300KG500KG800KG1000KG1200KG1500KG



8. Our Package

Forklift Tea Spout Ladle For Aluminum Casting Pouring Ladles 10C 2
