LPG 900C Holding Aluminum Melting Furnace Machine Die Casting High Utilization

LPG 900C Holding Aluminum Melting Furnace Machine Die Casting High Utilization
LPG 900C Holding Aluminum Melting Furnace Machine Die Casting High Utilization
LPG 900C Holding Aluminum Melting Furnace Machine Die Casting High Utilization LPG 900C Holding Aluminum Melting Furnace Machine Die Casting High Utilization LPG 900C Holding Aluminum Melting Furnace Machine Die Casting High Utilization

Large Image :  LPG 900C Holding Aluminum Melting Furnace Machine Die Casting High Utilization

Product Details:
Place of Origin: China
Brand Name: Hydeb
Certification: CE,ISO9001,ISO14001,IS45001,High-tech Enterprise
Model Number: GRL-600
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $ 20000-$50000/set
Packaging Details: Pallet or Wooden Case
Delivery Time: 30 working days
Payment Terms: T/T
Supply Ability: 20 sets per year

LPG 900C Holding Aluminum Melting Furnace Machine Die Casting High Utilization

Description
Key Name: Aluminum Melting Machine Scrap Cans Gas Fired Induction Smelting Melting Furnace Raw Material: Iron Steel & Insulation Layer
Color: Siliver Max. Temperature: 900 ℃
Power Source: LPG/NG Melting Rate Kg/h (Al): 450
High Light:

LPG Aluminum Melting Furnace

,

900C Aluminum Melting Furnace

,

aluminium melting machine High utilization

Aluminum Melting Machine Scrap Cans Gas Fired Induction Smelting Melting Furnace



600KG Capacity Gas Fired Source Hydraulic Tilting Crucible Furnace



1.   Aluminum Melting Machine Features



--- Using high quality silicon crucible

--- Uniform and stable heating temperature

--- The average life of crucible can be extended by more than 50%

--- Eg:About aluminium cans,from scraps to final ingots.recovery efficiency can be 92%



2. Aluminum Melting Machine Parameter Data



SN Items Data Remarks
1 Efficient furnace capacity kg (Al) 510
2 Melting Rate kg/h (Al) 450 Inside the crucible there is already have 1/3 molten aluminum.
3 Burner TGB60P
4 Energy Consumption m3/h Around 40
5 Maximum furnace temperature ℃ 950
6 Precision of molten aluminum temperature control ℃ ≤± 5
7 Temperature control mode PID+Dual temperature control
8 Crucible type and size mm

ODΦ880,

Height 1170

TBN1100

Morgen

9 Furnace surface temperature rise ℃ ≤50 Except for the installation site of the heating tube, the discharge outlet and rising tube
10 Gas Source Gas type Natural Gas
Gas pressure 5 Kpa
Max. Flow 75 m3/h
11 Power Source Voltage V 380
Frequency HZ 50
Power Kw ≤5
12 Air Pressure MPa 0.5-0.7



3. Aluminum Melting Machine Models



Type GRL-300 GRL-500 GRL-600 GRL-800 GRL-1000 GRL-1200
Capacity 191KG 338KG 515KG 763KG 952KG 1062KG

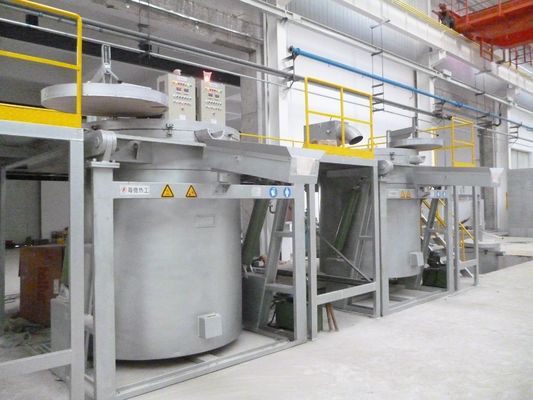

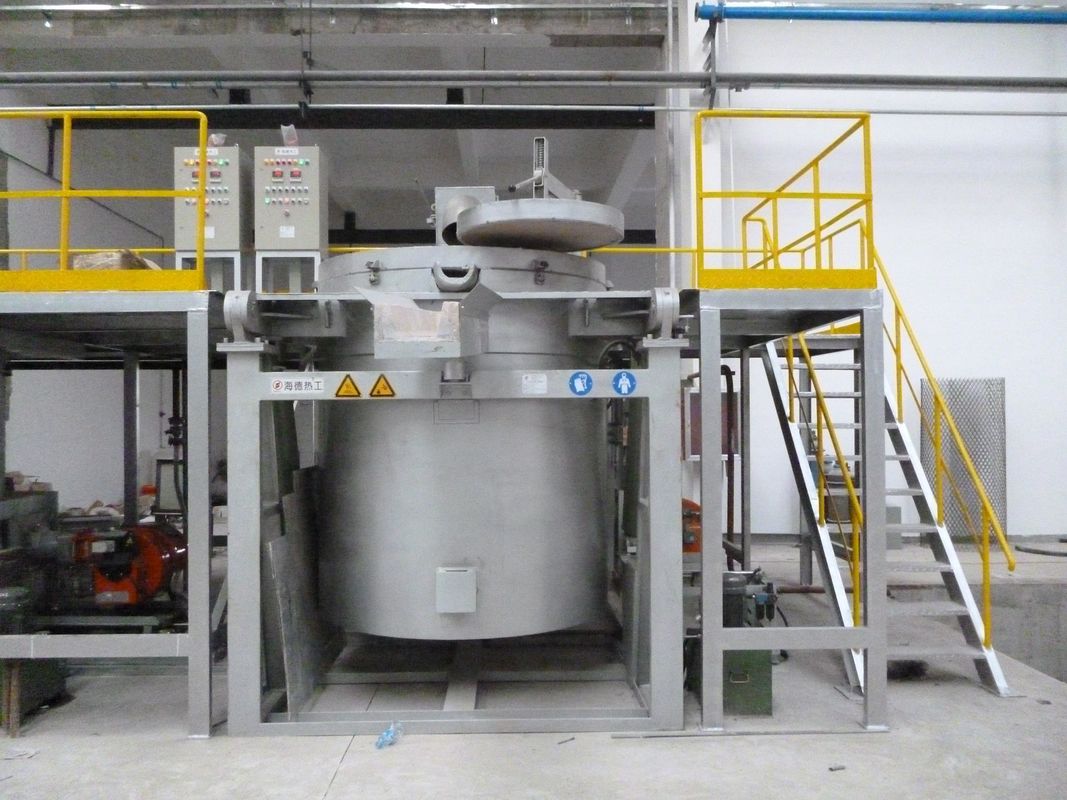

4. Aluminum Melting Machine Reference Pictures



LPG 900C Holding Aluminum Melting Furnace Machine Die Casting High Utilization 0





























































LPG 900C Holding Aluminum Melting Furnace Machine Die Casting High Utilization 1





5. FRQ


Q1: I know nothing about this melting furnace, what kind of melting furnace I should choose?
Very easy. We will email you an inquiry form for making sure your real need. Or just tell us what you want to
do by using this machine, then let us give you perfect solutions and suggestions.


Q2: When I get this melting furnace, but I don’t know how to use it. What should I do?
We will send pictures or video and English manual with the machine. If you still have some doubts, we can talk
by Telephone/ Skype / Whatsapp / Weichat/ E-mail.


Q3: If some problems happen to this melting furnace during warranty period, what should I do?
We will supply free parts during machine warranty period if machine have some problems (except spare parts).
While we also supply free life long after-sales service. So any doubts, just let us know, we will give you solutions.





6. Company Profile



Founded in January 2003, the Jinan HYDEB Thermal Tech Co., Ltd. is located in Jinan High-tech Development Zone.
The Company mainly produces molten aluminum refining and degassing units, molten aluminum transfer ladles and
holding crucible furnaces, which are sold to well-known corporations in the industry at home and abroad,
meeting their high requirements for product safety and advancement.


Focusing on the aluminum casting industry, the Company takes “Technology, Quality and Service” as its base of enterprise,
aimed at meeting all the needs of customers. Being “Safe, Practical, Reliable, Efficient and nice-looking”,
ts products are well unanimous recognized by the customers, with its brand “HYDEB” gaining high popularity in the industry
