Hydraulic Tilting Aluminum Melting Furnace 1000KG High Pressure Die Casting For HPD

Certification
China Jinan Hydeb Thermal Tech Co., Ltd. certification
China Jinan Hydeb Thermal Tech Co., Ltd. certification
I'm Online Chat Now

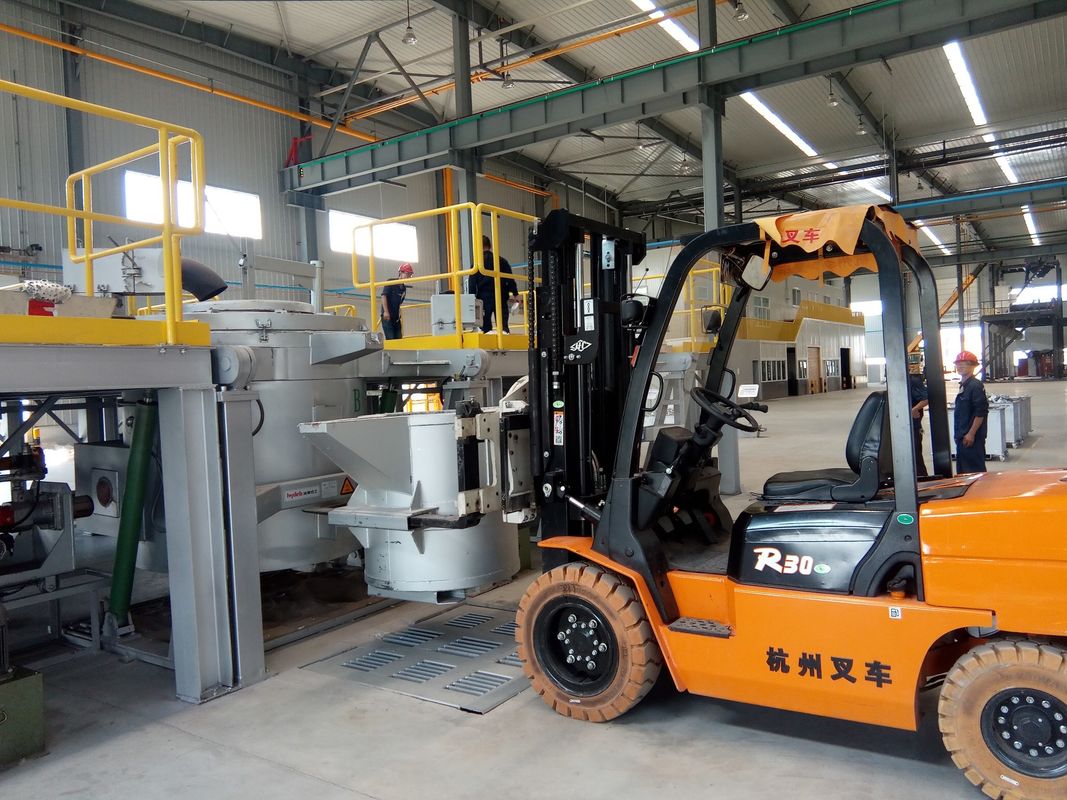

Hydraulic Tilting Aluminum Melting Furnace 1000KG High Pressure Die Casting For HPD

Hydraulic Tilting Aluminum Melting Furnace 1000KG High Pressure Die Casting For HPD
Hydraulic Tilting Aluminum Melting Furnace 1000KG High Pressure Die Casting For HPD Hydraulic Tilting Aluminum Melting Furnace 1000KG High Pressure Die Casting For HPD

Large Image :  Hydraulic Tilting Aluminum Melting Furnace 1000KG High Pressure Die Casting For HPD

Product Details:
Place of Origin: China
Brand Name: Hydeb
Certification: CE,ISO9001,ISO14001,IS45001,High-tech Enterprise
Model Number: GRL-1000
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $ 20000-$50000/set
Packaging Details: Pallet or Wooden Case
Delivery Time: 30 working days
Payment Terms: T/T
Supply Ability: 20 sets per year

Hydraulic Tilting Aluminum Melting Furnace 1000KG High Pressure Die Casting For HPD

Description
Product Name: Hydraulic Tilting 1000KG Small Gas Fired Aluminium Melting Furnace For HPD Raw Material: Iron Steel & Insulation Layer
Max. Temperature: 950 ℃ Crucible Volume: 930 KG
Fuse Source: LPG Furnace Capacity: 1000KG
High Light:

Hydraulic Tilting Aluminum Melting Furnace

,

Aluminum Melting Furnace 1000KG

,

aluminium high pressure die casting

Hydraulic Tilting 1000KG Small Gas Fired Aluminium Melting Furnace For HPD



1000KG Capacity Gas Fired Source Hydraulic Tilting Crucible Furnace



1.  Small Gas Fired Aluminium Melting Furnace Description



-- Small Gas Fired Aluminium Melting Furnace Use area in all foundries or pre

–  smeltery for feeding holding furnaces or for direct casting.
--
Small Gas Fired Aluminium Melting Furnace Can also be used as tilting holding/melting furnace.

-- Versatile use by good regulation of the tilting speed and Tempperature control.

-- Advantages of the electric furnace

-- Silent operation

-- Low heat losses through high-quality insulation

-- No exhaust system needed

-- Accurate temperature control Crucible

-- Standard design for the use of graphite crucible



2. Small Gas Fired Aluminium Melting Furnace Parameter Data



SN Items Data Remarks
1 Efficient furnace capacity kg (Al) 930
2 Melting Rate kg/h (Al) 450 Inside the crucible there is already have 1/3 molten aluminum.
3 Burner TGB60P
4 Energy Consumption m3/h Around 40
5 Maximum furnace temperature ℃ 950
6 Precision of molten aluminum temperature control ℃ ≤± 5
7 Temperature control mode PID+Dual temperature control
8 Crucible type and size mm

ODΦ880,

Height 1170

TBN1100

Morgen

9 Furnace surface temperature rise ℃ ≤50 Except for the installation site of the heating tube, the discharge outlet and rising tube
10 Gas Source Gas type Natural Gas
Gas pressure 5 Kpa
Max. Flow 75 m3/h
11 Power Source Voltage V 380
Frequency HZ 50
Power Kw ≤5
12 Air Pressure MPa 0.5-0.7



3. Small Gas Fired Aluminium Melting Furnace Models



Type GRL-300 GRL-500 GRL-600 GRL-800 GRL-1000 GRL-1200
Capacity 191KG 338KG 515KG 763KG 952KG 1062KG




4. Hydeb Company Profile



-- Hdyeb company was established in January 2003, and now has 56 employees
-- Sales of 50 million RMB in 2021
-- Focus on one industry -- "aluminum casting"

-- Has a complete product line of aluminum casting equipment, all products are independent research

and development, manufacturing

-- aluminum melting and holding, transportation, ladle preheating, aluminum liquid refining, aluminum liquid
hydrogen measurement, until aluminum solution aging treatment equipment

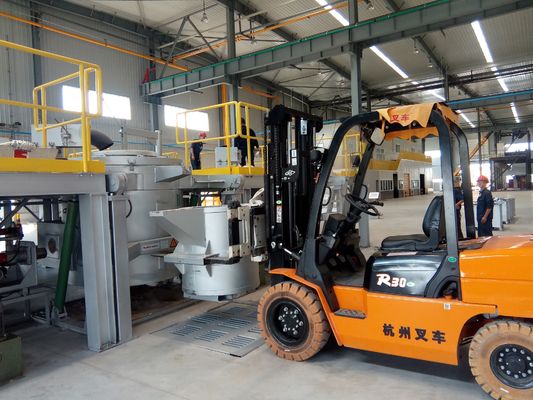

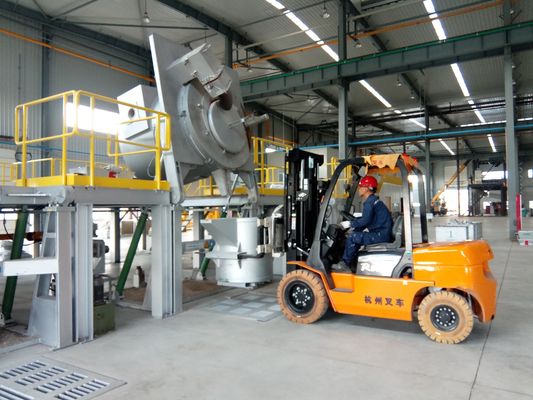

5.  Small Gas Fired Aluminium Melting Furnace Reference Pictures



Hydraulic Tilting Aluminum Melting Furnace 1000KG High Pressure Die Casting For HPD 0





























































Hydraulic Tilting Aluminum Melting Furnace 1000KG High Pressure Die Casting For HPD 1



6. FRQ


Q1: I know nothing about this furnace, what kind of furnace I should choose?
Very easy. We will email you an inquiry form for making sure your real need. Or just tell us what you want to
do by using this machine, then let us give you perfect solutions and suggestions.


Q2: When I get this furnace, but I don’t know how to use it. What should I do?
We will send pictures or video and English manual with the machine. If you still have some doubts, we can talk
by Telephone/ Skype / Whatsapp / Weichat/ E-mail.


Q3: If some problems happen to this furnace during warranty period, what should I do?
We will supply free parts during machine warranty period if machine have some problems (except spare parts).
While we also supply free life long after-sales service. So any doubts, just let us know, we will give you solutions.



7. CE & ISO



Hydraulic Tilting Aluminum Melting Furnace 1000KG High Pressure Die Casting For HPD 2

Hydraulic Tilting Aluminum Melting Furnace 1000KG High Pressure Die Casting For HPD 3
