NG Gas 0.30MPa Aluminum Crucible Furnace For Melting Aluminum Alloy ISO9001

Certification
China Jinan Hydeb Thermal Tech Co., Ltd. certification
China Jinan Hydeb Thermal Tech Co., Ltd. certification
I'm Online Chat Now

NG Gas 0.30MPa Aluminum Crucible Furnace For Melting Aluminum Alloy ISO9001

NG Gas 0.30MPa Aluminum Crucible Furnace For Melting Aluminum Alloy ISO9001
NG Gas 0.30MPa Aluminum Crucible Furnace For Melting Aluminum Alloy ISO9001 NG Gas 0.30MPa Aluminum Crucible Furnace For Melting Aluminum Alloy ISO9001

Large Image :  NG Gas 0.30MPa Aluminum Crucible Furnace For Melting Aluminum Alloy ISO9001

Product Details:
Place of Origin: China
Brand Name: Hydeb
Certification: CE,ISO9001,ISO14001,IS45001,High-tech Enterprise,Intellectual Property,Patents
Model Number: CRL-1000
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $ 20000-$50000/set
Packaging Details: Wooden Case or Pallet
Delivery Time: 50 working days
Payment Terms: T/T
Supply Ability: 20 sets per year

NG Gas 0.30MPa Aluminum Crucible Furnace For Melting Aluminum Alloy ISO9001

Description
Key Words: NG Gas Fired Heating 1000KG Siliver Crucible Furnace For Aluminium Melting Usage: Melting And Holding Metal Liquid
Raw Material: Clay Graphite Color: Siliver
Power: Natural Gas Metal Type: Aluminum Alloy
High Light:

NG Aluminum Crucible Furnace

,

0.30MPa Aluminum Crucible Furnace for Aluminum Alloy

,

gas furnace for melting aluminum ISO9001

NG Gas Fired Heating 1000KG Siliver Crucible Furnace For Aluminium Melting



Crucible Melting Furnace



1.  Crucible Furnace For Aluminium Melting Specification


Holding furnace capacity 200-3500 Kg (AL)
Maximum allowable pressure 0.30MPa
Rated temperature of the furnace chamber 950℃
Furnace surface temperature rise ≤45℃



2.   Crucible Furnace Features



(1) The high quality (accurate temperature, uniform composition, etc.) aluminum liquid required for high-quality
castings can be obtained



(2) The temperature control of molten aluminum is reliable and the precision is high. Equipped with an intelligent
temperature control instrument and a special thermocouple for measuring the temperature of the molten aluminum,
the advanced analog PID control technology is used to achieve direct and high-precision automatic control of the molten
aluminum temperature, with a temperature control accuracy of ±5°C



(3) The temperature of the aluminum melt is uniform, and there is no local high temperature. The electric heating element
is isolated from the molten aluminum and is evenly arranged around the crucible. The temperature of the molten aluminum
along the height of the crucible is relatively uniform, realizing uniform heating of the entire molten aluminum and ensuring
the uniform composition of the molten aluminum.


3.  Company Profile


Jinan Hydeb Thermal Tech Co., Ltd company was established in January 2003, and now has 56 employees.

For Last year the sales of 50 million RMB in 2020.

Hydeb is focus on one industry -- "aluminum casting"



Hydeb has a complete product line of aluminum casting equipment, all products are independent research

and development, manufacturing

Hydeb products are aluminum melting and holding, transportation, ladle preheating, aluminum liquid refining, aluminum liquid

hydrogen measurement, until aluminum solution aging treatment equipment

4. Hydeb Strengths

NG Gas 0.30MPa Aluminum Crucible Furnace For Melting Aluminum Alloy ISO9001 0


5. Crucible Furnace For Aluminium Melting Types

GRL-200 GRL-500  GRL-600 GRL-800 GRL-1000 GRL-1200

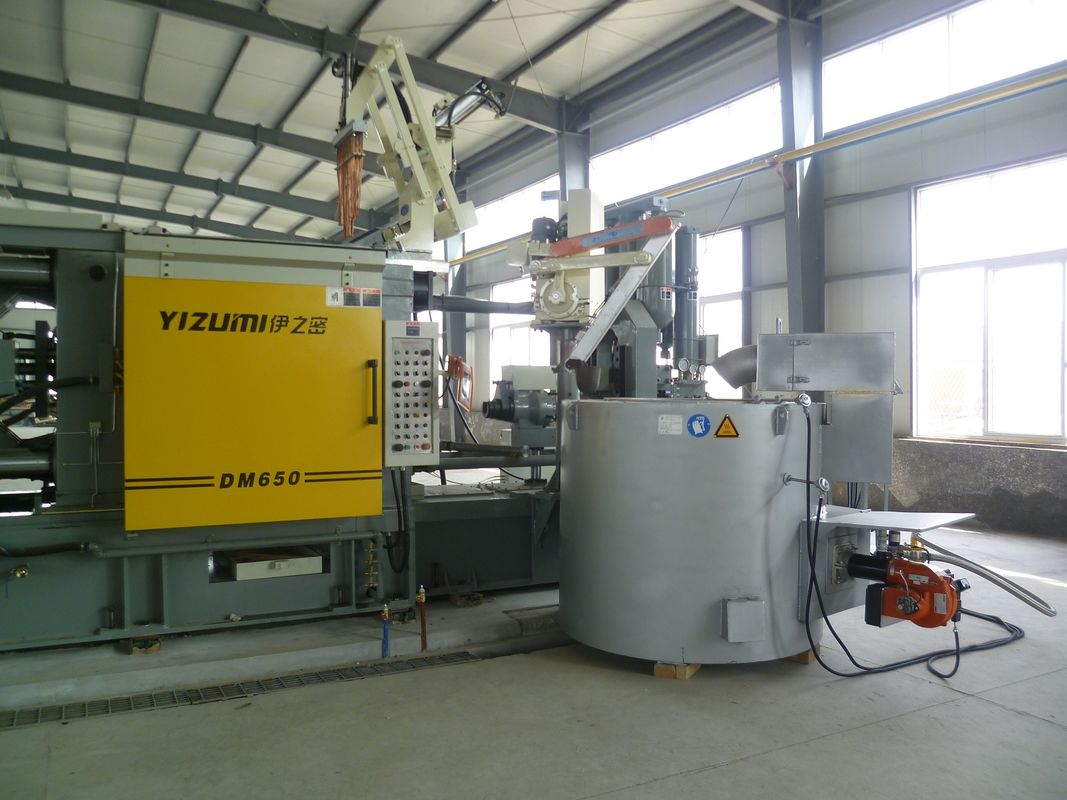

6. Crucible Furnace For Aluminium Melting Reference Picture

NG Gas 0.30MPa Aluminum Crucible Furnace For Melting Aluminum Alloy ISO9001 1

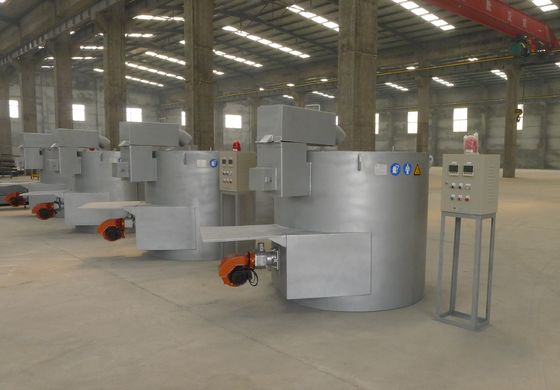

7. Ready for Delivery



NG Gas 0.30MPa Aluminum Crucible Furnace For Melting Aluminum Alloy ISO9001 2



8. FRQ



Q1: I know nothing about this machine, what kind of machine I should choose?
Very easy. We will email you an inquiry form for making sure your real need. Or just tell us what you want to do
by using this machine, then let us give you perfect solutions and suggestions.


Q2: When I get this machine, but I don’t know how to use it. What should I do?
We will send pictures or video and English manual with the machine. If you still have some doubts, we can talk by
Telephone/ Skype / Whatsapp / Weichat/ E-mail.


Q3: If some problems happen to this machine during warranty period, what should I do?
We will supply free parts during machine warranty period if machine have some problems (except spare parts).
While we also supply free life long after-sales service. So any doubts, just let us know, we will give you solutions.



9.  Crucible Furnace Description



All the furnace shell, bottom, outside reinforcement and the fixed mount are welded with GB high quality

steel plates and structural steels. The main working lining are cast by non-stick aluminum pouring piece by piece;

the other parts are constructed by relevant refractory and thermal insulation materials.
