3000KG Capacity Molten Aluminum Transfer Ladles Bottom Pouring Ladles 90C

Certification
China Jinan Hydeb Thermal Tech Co., Ltd. certification
China Jinan Hydeb Thermal Tech Co., Ltd. certification
I'm Online Chat Now

3000KG Capacity Molten Aluminum Transfer Ladles Bottom Pouring Ladles 90C

3000KG Capacity Molten Aluminum Transfer Ladles Bottom Pouring Ladles 90C
3000KG Capacity Molten Aluminum Transfer Ladles Bottom Pouring Ladles 90C
3000KG Capacity Molten Aluminum Transfer Ladles Bottom Pouring Ladles 90C 3000KG Capacity Molten Aluminum Transfer Ladles Bottom Pouring Ladles 90C 3000KG Capacity Molten Aluminum Transfer Ladles Bottom Pouring Ladles 90C

Large Image :  3000KG Capacity Molten Aluminum Transfer Ladles Bottom Pouring Ladles 90C

Product Details:
Place of Origin: China
Brand Name: Hydeb
Certification: CE,ISO9001,ISO14001,ISO45001, High-tech Enterprise, Intellectual Property, Patents
Model Number: CLB-3000
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: $ 10000-$50000/set
Packaging Details: Pallet or Wooden Case
Delivery Time: 30 working days
Payment Terms: T/T
Supply Ability: 100 sets per year

3000KG Capacity Molten Aluminum Transfer Ladles Bottom Pouring Ladles 90C

Description
Name: 3000KG Capacity Crane Hanger Type Green Transfer Ladle With Pour Spout Ladle Weight: 3000 KG
Colour: Green Application: Transfer Molten Aluminum
Lining Material: Castable Temperature Reduce Rate: Less Than 15 ℃
High Light:

3000kg Molten Aluminum Transfer Ladles

,

Movable Cover Molten Aluminum Transfer Ladles

,

bottom pouring ladles 90C

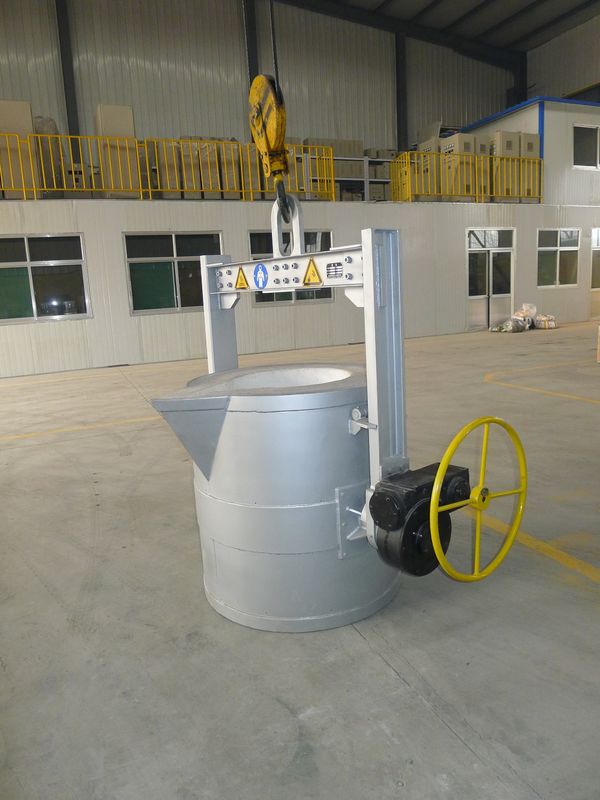

3000KG Capacity Crane Hanger Type Green Transfer Ladle With Pour Spout



Long Distance Transfer Ladle for Aluminum Liquid



1. Transfer Ladle Application



Molten Aluminium Transfer Ladle is a refractory product, which is basically used for molten metal transfer.

Ladles enable molten aluminium to be held at temperature for extended periods, keeping metal clean.



Sturdy ladle shell. The ladle shell is made according to transfer ladle technical specification, welded for the bottom hoop,
waist hoop, upper edge hoop and weld reinforcement, which can not only extent the using life, but also guarantee the safety.



2. Transfer Ladle Features



-- No aluminum liquid leak

-- Tight package safe for transportation

-- The transporting container cover and spout sealing is reliable

-- No leaking even when the tranporting container is tilted.



3. Transfer Ladle Nainly Specification



Items Parameters Remarks
Maximum temperature of molten aluminum 800℃
Maximum ladle lining temperature 900℃
Natural temperature drop of molten aluminum ≤18℃/h For a 500-kg ladle; the lower the capacity, the higher the figure
Ladle shell surface temperature ≤50℃
Ladle capacity 800 KG The specific gravity of molten aluminum is set to 2.5t/m3
Ladle body weight   Around 1200KG



4. Advantages



-- Smooth Tilting Mechanism

-- Less Skin temperature

-- Long Refractory life

-- Maintenance free

-- Easy Handling

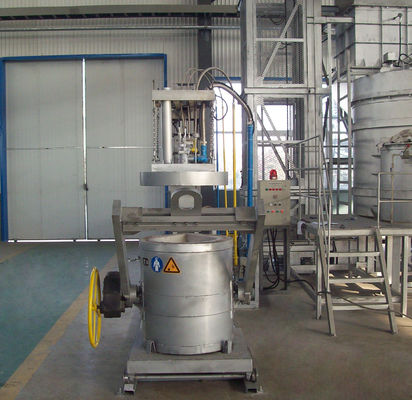

5.  Working At Site



3000KG Capacity Molten Aluminum Transfer Ladles Bottom Pouring Ladles 90C 0

3000KG Capacity Molten Aluminum Transfer Ladles Bottom Pouring Ladles 90C 1



6. Modles



Type CLB-15 CLB-20 CLB-30 CLB-50 CLB-80 CLB-100 CLB-120 CLB-150
Capacity 150KG 200KG 300KG 500KG 800KG 1000KG 1200KG 1500KG





7. Shipping



3000KG Capacity Molten Aluminum Transfer Ladles Bottom Pouring Ladles 90C 2



8. CE



3000KG Capacity Molten Aluminum Transfer Ladles Bottom Pouring Ladles 90C 3
