500KG 15C Capacity Molten Aluminum Transfer Ladles Pouring Molten Metal

500KG 15C  Capacity Molten Aluminum Transfer Ladles Pouring Molten Metal
500KG 15C  Capacity Molten Aluminum Transfer Ladles Pouring Molten Metal
500KG 15C  Capacity Molten Aluminum Transfer Ladles Pouring Molten Metal 500KG 15C  Capacity Molten Aluminum Transfer Ladles Pouring Molten Metal 500KG 15C  Capacity Molten Aluminum Transfer Ladles Pouring Molten Metal

Large Image :  500KG 15C Capacity Molten Aluminum Transfer Ladles Pouring Molten Metal

Product Details:
Place of Origin: China
Brand Name: Hydeb
Certification: CE,ISO9001,ISO14001,IS45001, High-tech Enterprise, Intellectual Property, Patents
Model Number: CLB-50
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: $ 10000-$50000/set
Packaging Details: Pallet or Wooden Case
Delivery Time: 30 working days
Payment Terms: T/T
Supply Ability: 100 sets per year

500KG 15C Capacity Molten Aluminum Transfer Ladles Pouring Molten Metal

Description
Name: 500KG Capacity Forklift Type Aluminum Pouring Ladles For Molten Aluminum
High Light:

500KG Molten Aluminum Transfer Ladles

,

15C Molten Aluminum Transfer Ladles

,

ladle pouring molten metal ISO14001

500KG Capacity Forklift Type Aluminum Pouring Ladles For Molten Aluminum

Aluminum Recyclling Transfer Ladles  for Long Distance Transfer

1.   Transfer Ladle Application

Molten Aluminium Transfer Ladle is a refractory product, which is basically used for molten metal transfer.
Ladles enable molten aluminium to be held at temperature for extended periods, keeping metal clean. Our
transfer ladle having gear box for smooth tilting & ladle having refractory lining of non wetting castable,

Available capacity 100 to 3000 Kgs

2.  Transfer Ladle Advantages


--  Lower Temperature reduce <15 degree

--  Long  Service Life

--  Easy Handling

-- Light Weight



3. Transfer Ladle Characteristic



Increased metal quality
2 Lower energy costs
3 Improved process efficiency
4 Reduced downtime and replacement costs
5 Customized designs



4.  Company Introduce

Jinan Hydeb Thermal Tech Co., Ltd, was established in January 2003, and now has 56 employees. Our
sales of 50 million RMB in 2021.
Hydeb is focus on one industry -- "Aluminum Casting"
Hydebe has a complete product line of aluminum casting equipment, all products are independent research
and development, manufacturing


5.  Technical Parameters



Items Parameters Remarks
Maximum temperature of molten aluminum 800℃
Maximum ladle lining temperature 900℃
Natural temperature drop of molten aluminum ≤18℃/h For a 500-kg ladle; the lower the capacity, the higher the figure
Ladle shell surface temperature ≤50℃
Ladle capacity 500 KG The specific gravity of molten aluminum is set to 2.5t/m3
Ladle body weight   Around 1100KG



6. Ladle Modles


Type CLB-15 CLB-20 CLB-30 CLB-50 CLB-80 CLB-100 CLB-120 CLB-150
Capacity 150KG 200KG 300KG 500KG 800KG 1000KG 1200KG 1500KG

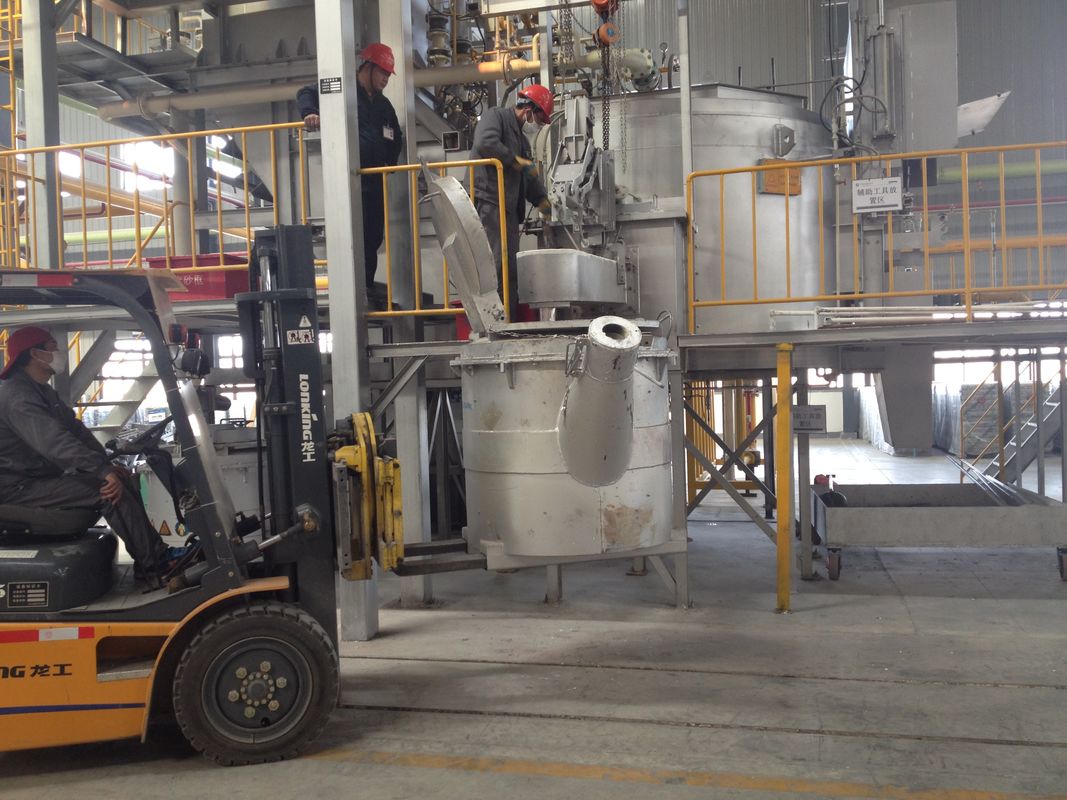

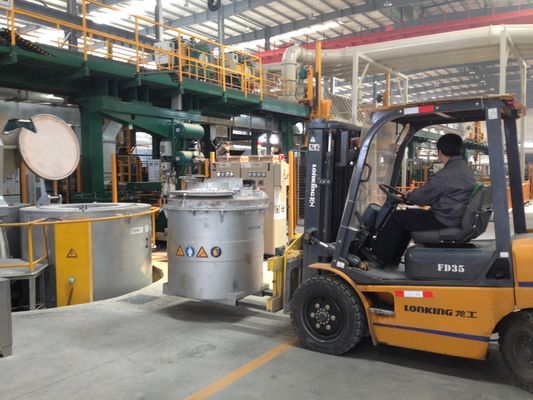

7. Ladle Reference Pictures


500KG 15C  Capacity Molten Aluminum Transfer Ladles Pouring Molten Metal 0
500KG 15C  Capacity Molten Aluminum Transfer Ladles Pouring Molten Metal 1

8. Our Strengths


500KG 15C  Capacity Molten Aluminum Transfer Ladles Pouring Molten Metal 2

9. FRQ

Q1: I know nothing about this pouring ladle, what kind of pouring ladle I should choose?
Very easy. We will email you an inquiry form for making sure your real need. Or just tell us what you want to do
by using this machine, then let us give you perfect solutions and suggestions.

Q2: When I get this pouring ladle, but I don’t know how to use it. What should I do?
We will send pictures or video and English manual with the machine. If you still have some doubts, we can talk by
Telephone/ Skype / Whatsapp / Weichat/ E-mail.

Q3: If some problems happen to this pouring ladle during warranty period, what should I do?
We will supply free parts during machine warranty period if machine have some problems (except spare parts).
While we also supply free life long after-sales service. So any doubts, just let us know, we will give you solutions.
