Grey Forklift 500KG Capacity Ladle Arc Furnace Process For Die Casting

Certification
China Jinan Hydeb Thermal Tech Co., Ltd. certification
China Jinan Hydeb Thermal Tech Co., Ltd. certification
I'm Online Chat Now

Grey Forklift 500KG Capacity Ladle Arc Furnace Process For Die Casting

Grey Forklift 500KG Capacity Ladle Arc Furnace Process For Die Casting
Grey Forklift 500KG Capacity Ladle Arc Furnace Process For Die Casting
Grey Forklift 500KG Capacity Ladle Arc Furnace Process For Die Casting Grey Forklift 500KG Capacity Ladle Arc Furnace Process For Die Casting Grey Forklift 500KG Capacity Ladle Arc Furnace Process For Die Casting

Large Image :  Grey Forklift 500KG Capacity Ladle Arc Furnace Process For Die Casting

Product Details:
Place of Origin: China
Brand Name: Hydeb
Certification: CE,ISO9001,ISO14001,IS45001, High-tech Enterprise, Intellectual Property, Patents
Model Number: XLB-500
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: $ 10000-$50000/set
Packaging Details: Pallet or Wooden Case
Delivery Time: 30 working days
Payment Terms: T/T
Supply Ability: 100 sets per year

Grey Forklift 500KG Capacity Ladle Arc Furnace Process For Die Casting

Description
Key Name: 500KG Capacity Grey Forklift Type Transfer Ladles For Transfer Molten Aluminium Moving: Forklift
Color: Grey Usage: Transfer Molten Aluminum
Raw Material: Iron Steel Shell MOQ: 1 Set
High Light:

Grey Forklift ladle arc furnace

,

500KG Capacity ladle arc furnace

,

ladle furnace process for Die Casting

500KG Capacity Grey Forklift Type Transfer Ladles for Transfer Molten Aluminium



Road Molten Aluminum Transfer Ladles for Die Casting Line



1.  Transfer Ladle Application Description



Transferring molten metal is a procedure of prime concern in melting, refining and casting workshops.



Lip pouring from ladles results in cascading metal and leads to dross formation. Transferring metal long distances
need to be considered the temperature losses.



Molten Aluminium Transfer Ladle is a refractory product, which is basically used for molten metal transfer.

Ladles enable molten aluminium to be held at temperature for extended periods, keeping metal clean.



2.  Transfer Ladle Characteristic Data



Increased metal quality
2 Lower energy costs
3 Improved process efficiency
4 Reduced downtime and replacement costs
5 Customized designs



3. Mainly Parameter



Items Parameters Remarks
Maximum temperature of molten aluminum 800℃
Maximum ladle lining temperature 900℃
Natural temperature drop of molten aluminum ≤18℃/h For a 500-kg ladle; the lower the capacity, the higher the figure
Ladle shell surface temperature ≤50℃
Ladle capacity 500 KG The specific gravity of molten aluminum is set to 2.5t/m3
Ladle body weight   Around 1200KG



4. Merits



-- Smooth Tilting Mechanism

-- Less Skin temperature

-- Long Refractory life

-- Maintenance free

-- Easy Handling



5.  Refernce Show

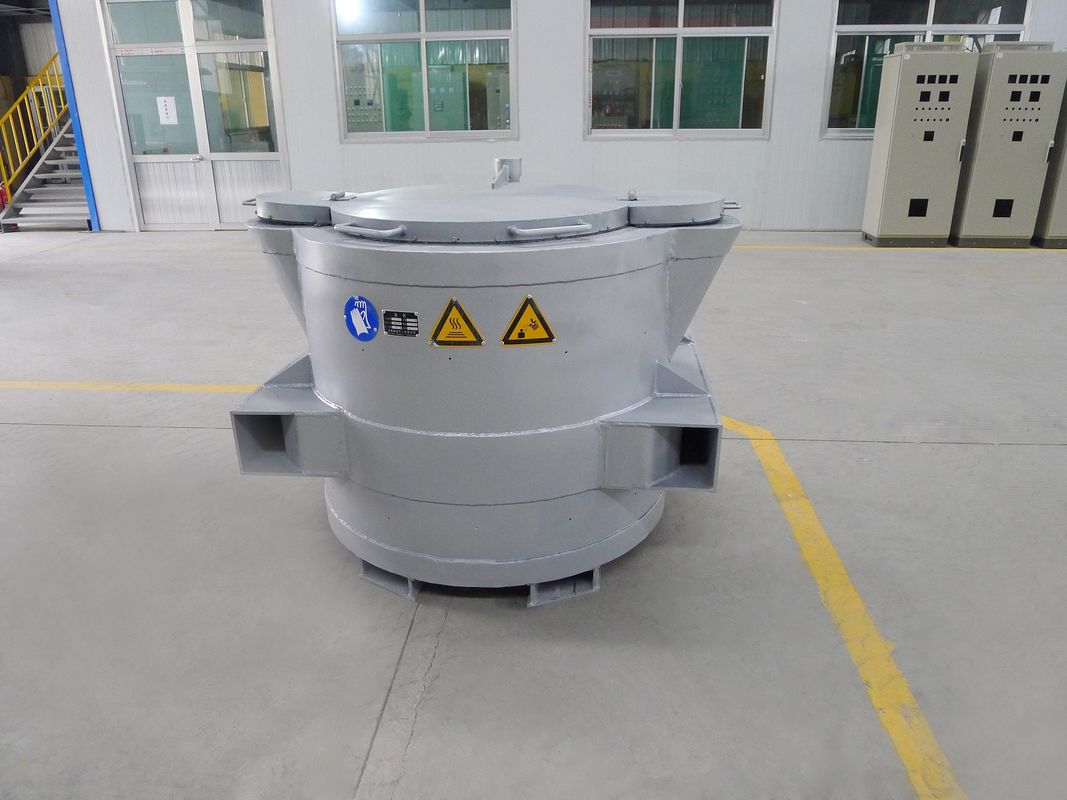

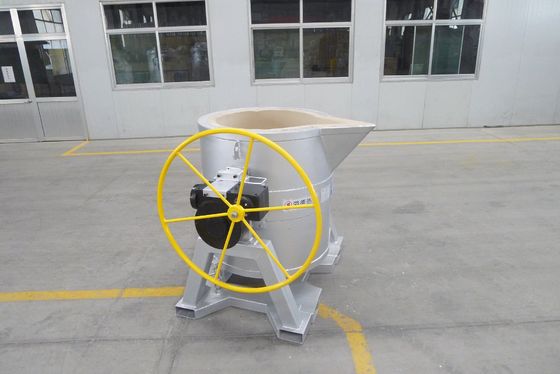

Grey Forklift 500KG Capacity Ladle Arc Furnace Process For Die Casting 0

Grey Forklift 500KG Capacity Ladle Arc Furnace Process For Die Casting 1



6. Modles



Type XLB-15 XLB-20 XLB-30 XLB-50 XLB-80 XLB-100 XLB-120 XLB-150
Capacity 150KG 200KG 300KG 500KG 800KG 1000KG 1200KG 1500KG





7. Delivery



Grey Forklift 500KG Capacity Ladle Arc Furnace Process For Die Casting 2





8. FRQ



Q1: I know nothing about this transfer ladle, what kind of transfer ladle I should choose?
Very easy. We will email you an inquiry form for making sure your real need. Or just tell us what you want to
do by using this machine, then let us give you perfect solutions and suggestions.


Q2: When I get this transfer ladle, but I don’t know how to use it. What should I do?
We will send pictures or video and English manual with the machine. If you still have some doubts, we can talk
by Telephone/ Skype / Whatsapp / Weichat/ E-mail.


Q3: If some problems happen to this transfer ladle during warranty period, what should I do?
We will supply free parts during machine warranty period if machine have some problems (except spare parts).
While we also supply free life long after-sales service. So any doubts, just let us know, we will give you solutions.
