600KG Foundry Pouring Molten Aluminum Transfer Ladles Forklift Base Crane Hanger

600KG Foundry Pouring Molten Aluminum Transfer Ladles Forklift Base Crane Hanger
600KG Foundry Pouring Molten Aluminum Transfer Ladles Forklift Base Crane Hanger
600KG Foundry Pouring Molten Aluminum Transfer Ladles Forklift Base Crane Hanger 600KG Foundry Pouring Molten Aluminum Transfer Ladles Forklift Base Crane Hanger 600KG Foundry Pouring Molten Aluminum Transfer Ladles Forklift Base Crane Hanger

Large Image :  600KG Foundry Pouring Molten Aluminum Transfer Ladles Forklift Base Crane Hanger

Product Details:
Place of Origin: China
Brand Name: Hydeb
Certification: CE,ISO9001,ISO14001,IS45001, High-tech Enterprise, Intellectual Property, Patents
Model Number: CLB-60
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: $ 10000-$50000/set
Packaging Details: Pallet or Wooden Case
Delivery Time: 30 working days
Payment Terms: T/T
Supply Ability: 100 sets per year

600KG Foundry Pouring Molten Aluminum Transfer Ladles Forklift Base Crane Hanger

Description
Key Name: 600KG Capacity Crane Hanger Type Siliver Molten Aluminium Transfer Ladles Device
High Light:

600KG Molten Aluminum Transfer Ladles

,

anti infiltration Molten Aluminum Transfer Ladles

,

foundry pouring ladles forklift base

600KG Capacity Crane Hanger Type Siliver Molten Aluminium Transfer Ladles Device



Long Distance Transfer Ladle for Aluminum Liquid



1.   Molten Aluminium Transfer Ladles Device Application



Molten aluminium transfer ladle is made up of ladle shell, ladle liner, ladle arm (or forklift base) and ladle cover (optional)



Molten Aluminium Transfer Ladle Device is a refractory product, which is basically used for molten metal transfer.

Ladles enable molten aluminium to be held at temperature for extended periods, keeping metal clean.



2.  Molten Aluminium Transfer Ladles Device Characteristic



--   Excellent non-aluminum-sticking performance

--   The transportation container inner wall is one integereated piece

--   Drop cast formed with aluminum alloy refractory material specially designed for this application

---  It is anti- infiltration and anti corruption to aluminum liquid



3. Molten Aluminium Transfer Ladles Device Mainly Specification Data



Items Parameters Remarks
Maximum temperature of molten aluminum 800℃
Maximum ladle lining temperature 900℃
Natural temperature drop of molten aluminum ≤18℃/h For a 500-kg ladle; the lower the capacity, the higher the figure
Ladle shell surface temperature ≤50℃
Ladle capacity 600 KG The specific gravity of molten aluminum is set to 2.5t/m3
Ladle body weight   Around 1000KG



4. Advantages



-- Smooth Tilting Mechanism

-- Less Skin temperature

-- Long Refractory life

-- Maintenance free

-- Easy Handling

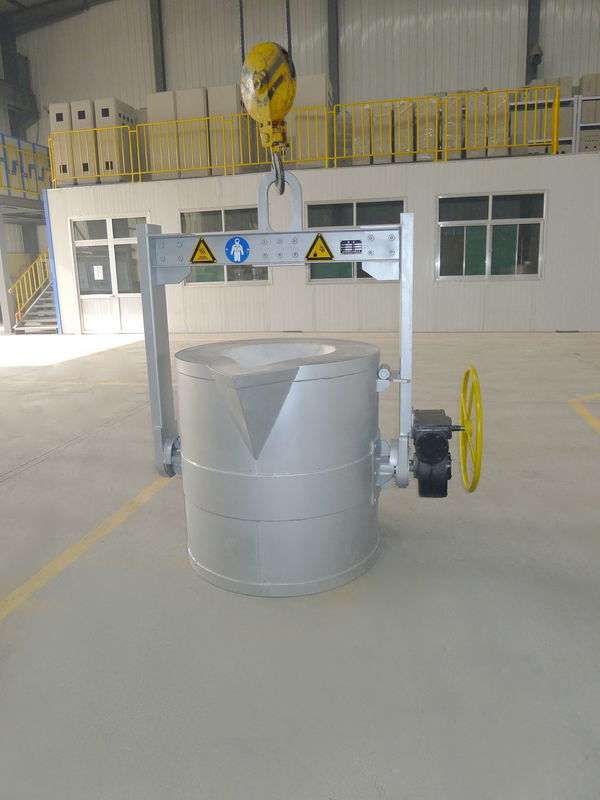

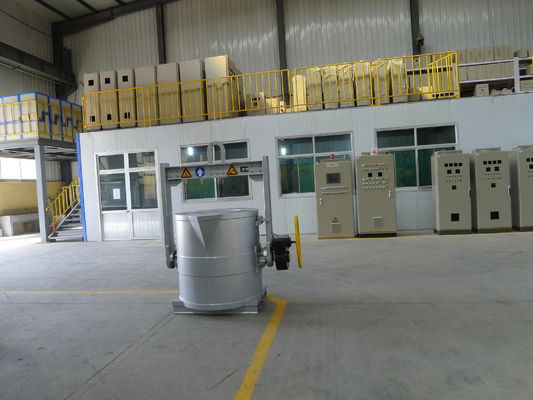

5.  Working At Site



600KG Foundry Pouring Molten Aluminum Transfer Ladles Forklift Base Crane Hanger 0

600KG Foundry Pouring Molten Aluminum Transfer Ladles Forklift Base Crane Hanger 1



6. Modles



Type CLB-15 CLB-20 CLB-30 CLB-50 CLB-80 CLB-100 CLB-120 CLB-150
Capacity 150KG 200KG 300KG 500KG 800KG 1000KG 1200KG 1500KG





7. Shipping



600KG Foundry Pouring Molten Aluminum Transfer Ladles Forklift Base Crane Hanger 2



8. FRQ



Q1: I know nothing about this ladle device, what kind of ladle device I should choose?
Very easy. We will email you an inquiry form for making sure your real need. Or just tell us what you want to
do by using this machine, then let us give you perfect solutions and suggestions.


Q2: When I get this ladle device, but I don’t know how to use it. What should I do?
We will send pictures or video and English manual with the machine. If you still have some doubts, we can talk
by Telephone/ Skype / Whatsapp / Weichat/ E-mail.


Q3: If some problems happen to this ladle device during warranty period, what should I do?
We will supply free parts during machine warranty period if machine have some problems (except spare parts).
While we also supply free life long after-sales service. So any doubts, just let us know, we will give you solutions.
