Product Details:
|
| Product Name: | 3000KG Capacity With Cover Handler Type Siliver Transfer Ladles Machine | ||
|---|---|---|---|
| High Light: | Molten Aluminum Transfer Ladles 3000KG Capacity,Molten Aluminum Transfer Ladles OEM,metal pouring ladle For Aluminum Ingot |
||
Metal Pouring Molten Aluminum Transfer Ladles 3000KG Capacity For Aluminum Casting Lines
Road Molten Aluminum Transfer Ladles for Producing Aluminum Ingot
1. Transfer Ladle Application
Molten Aluminium Transfer Ladle is a refractory product, which is basically used for molten metal transfer.
Ladles enable molten aluminium to be held at temperature for extended periods, keeping metal clean.
2. Ladle Specification Data
| Items | Parameters | Remarks |
| Maximum temperature of molten aluminum | 800℃ | |
| Maximum ladle lining temperature | 900℃ | |
| Natural temperature drop of molten aluminum | ≤18℃/h | For a 500-kg ladle; the lower the capacity, the higher the figure |
| Ladle shell surface temperature | ≤50℃ | |
| Ladle capacity | 3000 KG | The specific gravity of molten aluminum is set to 2.5t/m3 |
| Ladle body weight | Around 4500KG |
3. Ladle Characteristic
-- Smooth Tilting Mechanism
-- Less Skin temperature
-- Long Refractory life
-- Maintenance free
-- Easy Handling
4. Transfer Ladle Advantages
| 1 | Increased metal quality |
| 2 | Lower energy costs |
| 3 | Improved process efficiency |
| 4 | Reduced downtime and replacement costs |
| 5 | Customized designs |

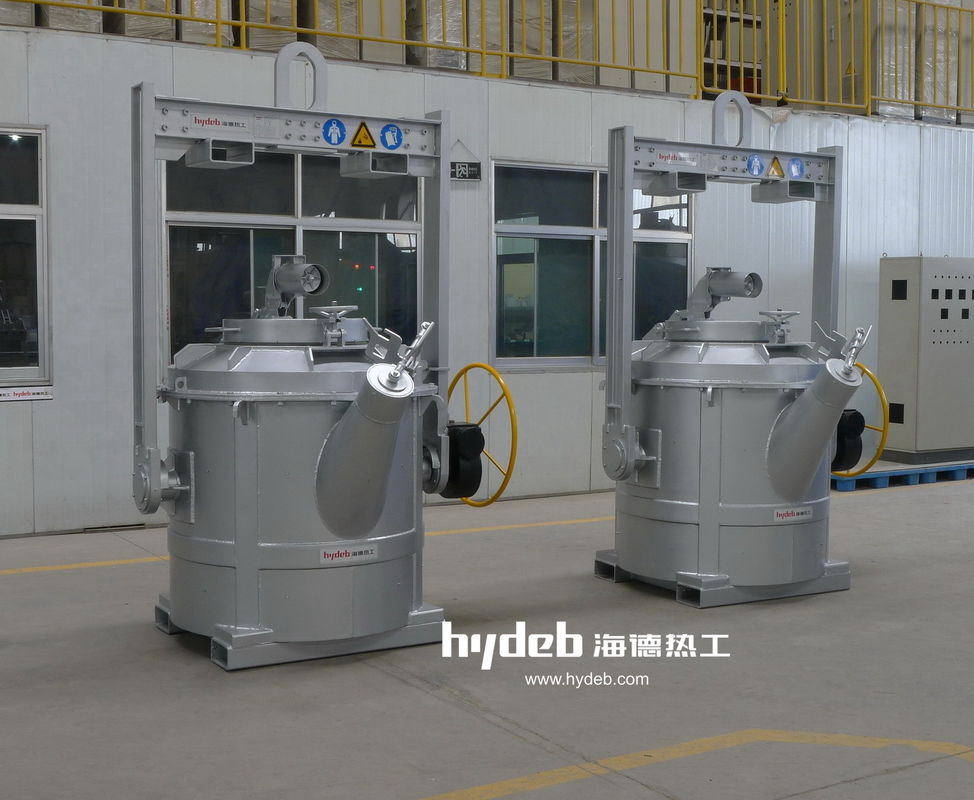

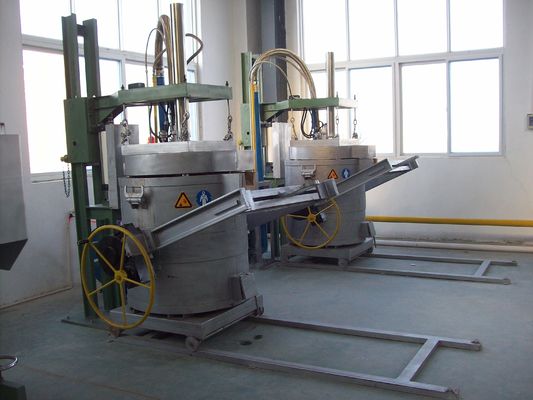

5. Ladle Pictures
6. Modles
| Type | HLB-15 | HLB-20 | HLB-30 | HLB-50 | HLB-80 | HLB-100 | HLB-120 | HLB-300 |
| Capacity | 150KG | 200KG | 300KG | 500KG | 800KG | 1000KG | 1200KG | 3000KG |
7. Our Delivery
8. CE Certification
