Product Details:
|
| Key Name: | 1200KG Blue Electric Rotary Furnace For Aluminium Melting Foundry Area | Raw Material: | Iron Steel Outshell |
|---|---|---|---|
| Colour: | Blue | Working Temperature: | 980 ℃ |
| Power Source: | Electricity | Application: | Using For Melting Aluminum Alloy |
| High Light: | electric crucible melting furnace,electric crucible melting furnace 280 kg/h,tilting crucible furnace Iron Steel Outshell |
||
1200KG Blue Electric Rotary Furnace For Aluminium Melting Foundry Area
1200KG Capacity Electric Heating Smelting Crucible Furnace
1. Furnace Description
-- Use in all foundries or aluminum die casting area
– Smeltery for feeding holding furnaces or for direct casting.
-- Low heat losses through high-quality insulation
-- No exhaust system needed
-- Accurate temperature control Crucible
-- Standard design for the use of graphite crucible
2. Mainly Technical Data
| SN | Items | Data | Remarks | |
| 1 | Efficient furnace capacity kg (Al) | 580 | ||
| 2 | Melting Rate kg/h (Al) | 280 | Inside the crucible there is already have 1/3 molten aluminum. | |
| 5 | Maximum furnace temperature ℃ | 950 | ||
| 6 | Precision of molten aluminum temperature control ℃ | ≤± 5 | ||
| 7 | Temperature control mode | PID+Dual temperature control | ||
| 8 | Crucible type and size mm | OD 880, d 350mm, H 1000 |
BN800 Morgen |
|
| 9 | Furnace surface temperature rise ℃ | ≤50 | Except for the installation site of the heating tube, the discharge outlet and rising tube | |
| 11 | Power Source | Voltage V | 380 | |
| Frequency HZ | 50 | |||
| 12 | Air Pressure MPa | 0.5-0.7 | ||
3. Types
| Type | CRL-300 | CRL-500 | CRL-600 | CRL-800 | CRL-1000 | CRL-1200 |
| Capacity | 191KG | 338KG | 515KG | 763KG | 952KG | 1062KG |

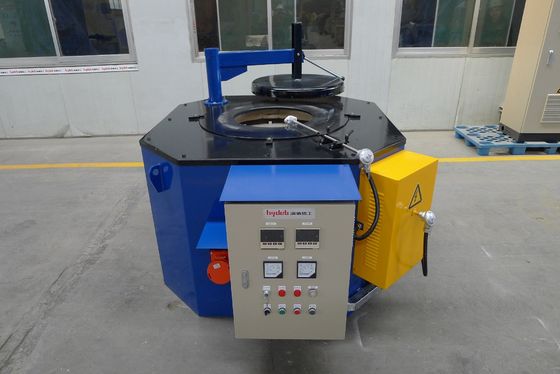

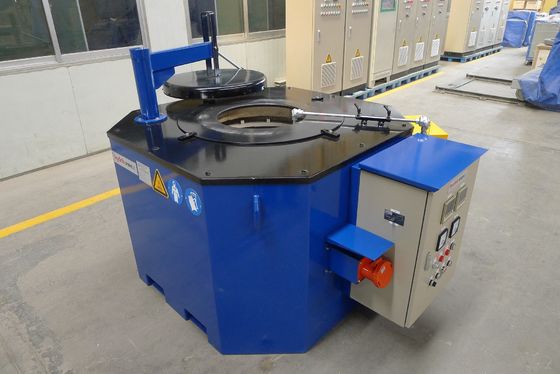

4. Picture Show
5. Company Introduce
-- Has a complete product line of aluminum casting equipment, all products are independent research
and development, manufacturing
Q1: I know nothing about this machine, what kind of machine I should choose?
Very easy. We will email you an inquiry form for making sure your real need. Or just tell us what you want to
do by using this machine, then let us give you perfect solutions and suggestions.
Q2: When I get this machine, but I don’t know how to use it. What should I do?
We will send pictures or video and English manual with the machine. If you still have some doubts, we can talk
by Telephone/ Skype / Whatsapp / Weichat/ E-mail.
Q3: If some problems happen to this machine during warranty period, what should I do?
We will supply free parts during machine warranty period if machine have some problems (except spare parts).
While we also supply free life long after-sales service. So any doubts, just let us know, we will give you solutions.
