980 Deg Tilting Crucible Aluminum Melting Furnace Optimizing Melt For Foundry

Certification
China Jinan Hydeb Thermal Tech Co., Ltd. certification
China Jinan Hydeb Thermal Tech Co., Ltd. certification
I'm Online Chat Now

980 Deg Tilting Crucible Aluminum Melting Furnace Optimizing Melt For Foundry

980 Deg Tilting Crucible Aluminum Melting Furnace Optimizing Melt For Foundry
980 Deg Tilting Crucible Aluminum Melting Furnace Optimizing Melt For Foundry 980 Deg Tilting Crucible Aluminum Melting Furnace Optimizing Melt For Foundry

Large Image :  980 Deg Tilting Crucible Aluminum Melting Furnace Optimizing Melt For Foundry

Product Details:
Place of Origin: China
Brand Name: Hydeb
Certification: CE,ISO9001,ISO14001,IS45001,High-tech Enterprise
Model Number: CRL-1000
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $ 20000-$50000/set
Packaging Details: Pallet or Wooden Case
Delivery Time: 30 working days
Payment Terms: T/T
Supply Ability: 20 sets per year

980 Deg Tilting Crucible Aluminum Melting Furnace Optimizing Melt For Foundry

Description
Name: 1000KG Blue Electric Melting Pot Optimizing Melting Furnace For Foundry Material: Iron Steel Outshell
Color: Blue Max. Temperature: 980 ℃
Power: Electricity Application: Using For Melting Aluminum Alloy
High Light:

980 Deg Aluminum Melting Furnace

,

Aluminum Melting Furnace optimizing melt

,

tilting crucible furnace For Foundry

1000KG Blue Electric Melting Pot Optimizing Melting Furnace For Foundry



1000KG Capacity Electric Heating Smelting Crucible Furnace



1.  Genernal  Description



-- Use in all foundries or aluminum die casting area

–  Smeltery for feeding holding furnaces or for direct casting.

-- Low heat losses through high-quality insulation

-- No exhaust system needed

-- Accurate temperature control Crucible

-- Standard design for the use of graphite crucible



Constant temperature, consistent quality

Once liquid metal has been received, our aluminium holding furnaces ensure temperatures are maintained to
tight tolerances. As well as optimizing melt quality – and therefore the quality of the final aluminium cast
product - this also minimizes energy wastage that can result from correcting heat fluctuations.

These benefits can also be achieved if re-alloying is required. In this instance a specially designed pre-heating
ramp can be added to warm or quickly melt materials before they reach the aluminium melt bath



2. Mainly Specification Data



SN Items Data Remarks
1 Efficient furnace capacity kg (Al) 580
2 Melting Rate kg/h (Al) 280 Inside the crucible there is already have 1/3 molten aluminum.
5 Maximum furnace temperature ℃ 950
6 Precision of molten aluminum temperature control ℃ ≤± 5
7 Temperature control mode PID+Dual temperature control
8 Crucible type and size mm OD 880, d 350mm, H 1000

BN800

Morgen

9 Furnace surface temperature rise ℃ ≤50 Except for the installation site of the heating tube, the discharge outlet and rising tube
11 Power Source Voltage V 380
Frequency HZ 50

12 Air Pressure MPa 0.5-0.7



3. Types



Type CRL-300 CRL-500 CRL-600 CRL-800 CRL-1000 CRL-1200
Capacity 191KG 338KG 515KG 763KG 952KG 1062KG

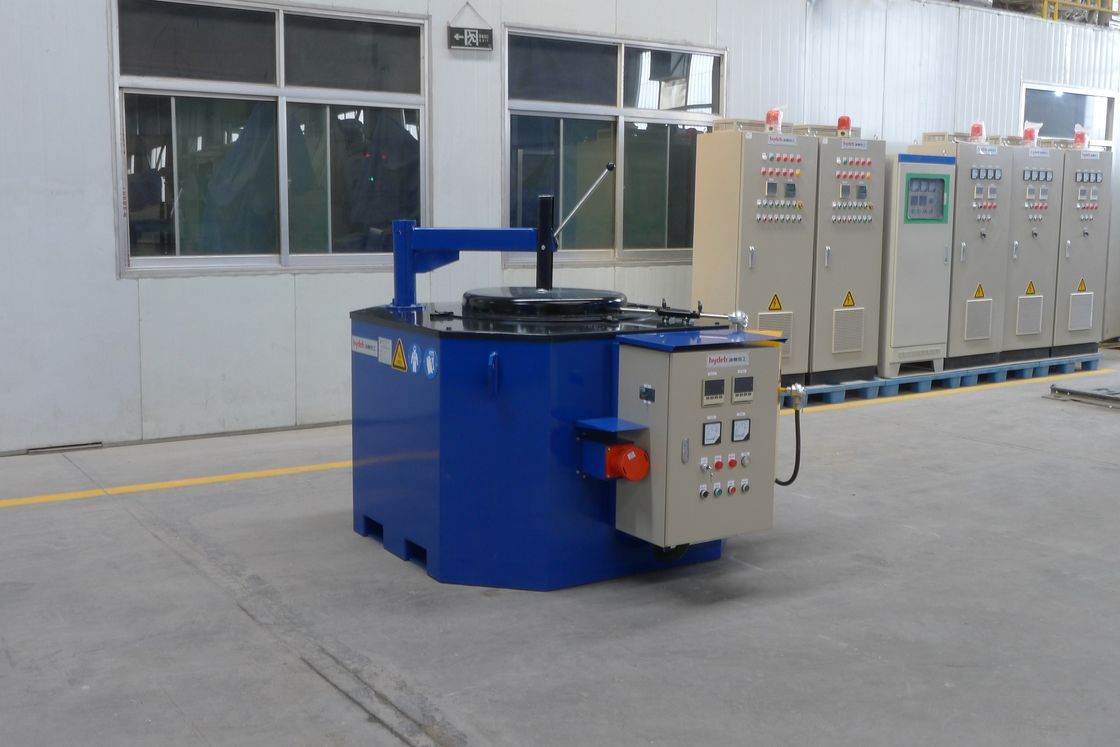

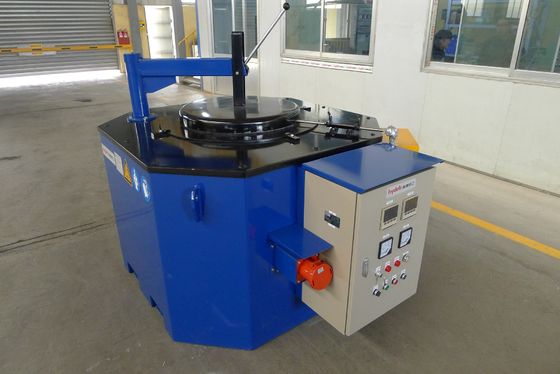

4. Picture Show



980 Deg Tilting Crucible Aluminum Melting Furnace Optimizing Melt For Foundry 0

980 Deg Tilting Crucible Aluminum Melting Furnace Optimizing Melt For Foundry 1



5. Company Introduce



--  Established in January 2003, and now has 56 employees
--  Sales of 50 million RMB in 2021
--  Focus on one industry -- "aluminum casting"

--  Has a complete product line of aluminum casting equipment, all products are independent research

    and development, manufacturing

-- aluminum melting and holding, transportation, ladle preheating, aluminum liquid refining, aluminum liquid
   hydrogen measurement, until aluminum solution aging treatment equipment

6.  CE Certification
980 Deg Tilting Crucible Aluminum Melting Furnace Optimizing Melt For Foundry 2

7. FRQ


Q1: I know nothing about this melting furnace, what kind of melting furnace I should choose?
Very easy. We will email you an inquiry form for making sure your real need. Or just tell us what you want to
do by using this machine, then let us give you perfect solutions and suggestions.


Q2: When I get this melting furnace, but I don’t know how to use it. What should I do?
We will send pictures or video and English manual with the machine. If you still have some doubts, we can talk
by Telephone/ Skype / Whatsapp / Weichat/ E-mail.


Q3: If some problems happen to this melting furnace during warranty period, what should I do?
We will supply free parts during machine warranty period if machine have some problems (except spare parts).
While we also supply free life long after-sales service. So any doubts, just let us know, we will give you solutions.
