Product Details:
Place of Origin: China
Brand Name: Hydeb
Certification: CE,ISO9001,ISO14001,IS45001,High-tech Enterprise
Model Number: GRL-600
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $ 20000-$50000/set
Packaging Details: Pallet or Wooden Case
Delivery Time: 30 working days
Payment Terms: T/T
Supply Ability: 20 sets per year

980C 600KG Electric Foundry Oil Fired Tilting Furnace LPG Insulation Layer

Description
Product Name: 600KG Gas Fired Hydraulic Tilting Small Silvier Aluminium Melting Furnace Material: Iron Steel & Insulation Layer
Colour: Siliver Max. Temperature: 980 ℃
Power Source: LPG Height: 1170mm
High Light:

980C oil fired tilting furnace

,

600KG oil fired tilting furnace

,

electric foundry furnace LPG Insulation layer

600KG Gas Fired Hydraulic Tilting Small Silvier Aluminium Melting Furnace



600KG Capacity Gas Fired Source Hydraulic Tilting Crucible Furnace



Circular furnace offering ideal features for mass melting of aluminium scrap and alloys. Extremely robust equipment with superb melting speeds.
The furnace opens at the top by means of a mechanism integrated with the chamber, which raises and swings out the domed lid so that scrap can be loaded in very quickly from baskets. This reduces the downtime that can sometimes occur when the dome lid is raised and swung out by a separate mechanism.



1. Description About the Furnace



-- Advantages of the electric furnace

-- Silent operation

-- Low heat losses through high-quality insulation

-- No exhaust system needed

-- Use area in all foundries or pre

–  smeltery for feeding holding furnaces or for direct casting.
-- Can also be used as tilting holding/melting furnace.
-- Versatile use by good regulation of the tilting speed and Tempperature control.

-- Accurate temperature control Crucible

-- Standard design for the use of graphite crucible



2. Furnace Parameter Data



SN Items Data Remarks
1 Efficient furnace capacity kg (Al) 930
2 Melting Rate kg/h (Al) 450 Inside the crucible there is already have 1/3 molten aluminum.
3 Burner TGB60P
4 Energy Consumption m3/h Around 40
5 Maximum furnace temperature ℃ 950
6 Precision of molten aluminum temperature control ℃ ≤± 5
7 Temperature control mode PID+Dual temperature control
8 Crucible type and size mm

ODΦ880,

Height 1170

TBN1100

Morgen

9 Furnace surface temperature rise ℃ ≤50 Except for the installation site of the heating tube, the discharge outlet and rising tube
10 Gas Source Gas type Natural Gas
Gas pressure 5 Kpa
Max. Flow 75 m3/h
11 Power Source Voltage V 380
Frequency HZ 50
Power Kw ≤5
12 Air Pressure MPa 0.5-0.7



3. Furnace Models



Type GRL-300 GRL-500 GRL-600 GRL-800 GRL-1000 GRL-1200
Capacity 191KG 338KG 515KG 763KG 952KG 1062KG

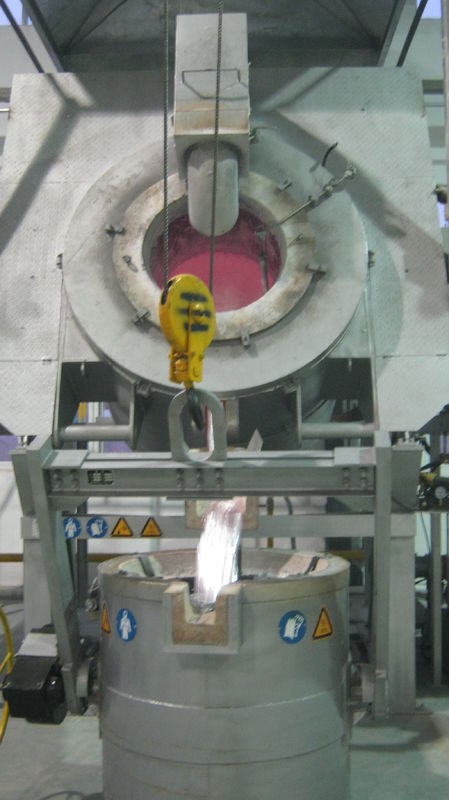

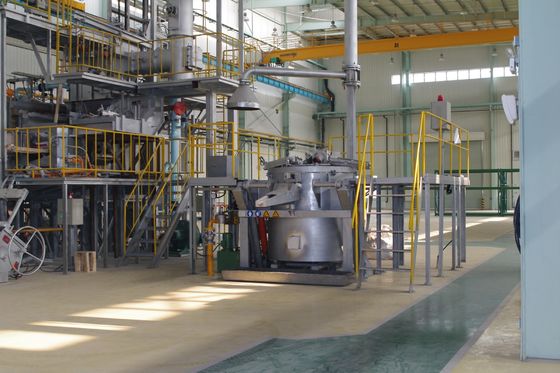

4. Reference Pictures



980C 600KG Electric Foundry Oil Fired Tilting Furnace LPG Insulation Layer 0





























































980C 600KG Electric Foundry Oil Fired Tilting Furnace LPG Insulation Layer 1



5. Company Profile



-- The company was established in January 2003, and now has 56 employees
--  Sales of 50 million RMB in 2021
--  Focus on one industry -- "aluminum casting"

--  Has a complete product line of aluminum casting equipment, all products are independent research

    and development, manufacturing

-- aluminum melting and holding, transportation, ladle preheating, aluminum liquid refining, aluminum liquid
   hydrogen measurement, until aluminum solution aging treatment equipment

6. FRQ


Q1: I know nothing about this furnace, what kind of furnace I should choose?
Very easy. We will email you an inquiry form for making sure your real need. Or just tell us what you want to
do by using this machine, then let us give you perfect solutions and suggestions.


Q2: When I get this furnace, but I don’t know how to use it. What should I do?
We will send pictures or video and English manual with the machine. If you still have some doubts, we can talk
by Telephone/ Skype / Whatsapp / Weichat/ E-mail.


Q3: If some problems happen to this furnace during warranty period, what should I do?
We will supply free parts during machine warranty period if machine have some problems (except spare parts).
While we also supply free life long after-sales service. So any doubts, just let us know, we will give you solutions.
