Product Details:
|
| Name: | Electric Heating 800KG Blue Aluminum Alloy Melting Die Casting Crucible Furnace | Application: | Melting Aluminum Alloy |
|---|---|---|---|
| Colour: | Blue | Max. Temperature: | 980 ℃ |
| Power: | Electricity | Material: | Iron Steel & Insulation Layer |
| MOQ: | 1 Set | Melting Rate Kg/h (Al): | 280 |
| Highlight: | 800KG Aluminum Melting Furnace,LPG Aluminum Melting Furnace Electric Heating,holding furnace aluminium for Die Casting |
||
Electric Heating 800KG Blue Aluminum Alloy Melting Die Casting Crucible Furnace
800KG Capacity Electric Heating Smelting Crucible Furnace
The extra works for inter-process between these two furnaces and the amount of the heat loss can also be saved
1. Melting Crucible Furnace Introduce
-- Use in all foundries or aluminum die casting area
– smeltery for feeding holding furnaces or for direct casting.
-- Low heat losses through high-quality insulation
-- No exhaust system needed
-- Accurate temperature control Crucible
-- Standard design for the use of graphite crucible
2. Melting Crucible Furnace Data
| SN | Items | Data | Remarks | |
| 1 | Efficient furnace capacity kg (Al) | 580 | ||
| 2 | Melting Rate kg/h (Al) | 280 | Inside the crucible there is already have 1/3 molten aluminum. | |
| 5 | Maximum furnace temperature ℃ | 950 | ||
| 6 | Precision of molten aluminum temperature control ℃ | ≤± 5 | ||
| 7 | Temperature control mode | PID+Dual temperature control | ||
| 8 | Crucible type and size mm | OD 880, d 350mm, H 1000 |
BN800 Morgen |
|
| 9 | Furnace surface temperature rise ℃ | ≤50 | Except for the installation site of the heating tube, the discharge outlet and rising tube | |
| 11 | Power Source | Voltage V | 380 | |
| Frequency HZ | 50 | |||
| 12 | Air Pressure MPa | 0.5-0.7 | ||
3. Types
| Type | CRL-300 | CRL-500 | CRL-600 | CRL-800 | CRL-1000 | CRL-1200 |
| Capacity | 191KG | 338KG | 515KG | 763KG | 952KG | 1062KG |

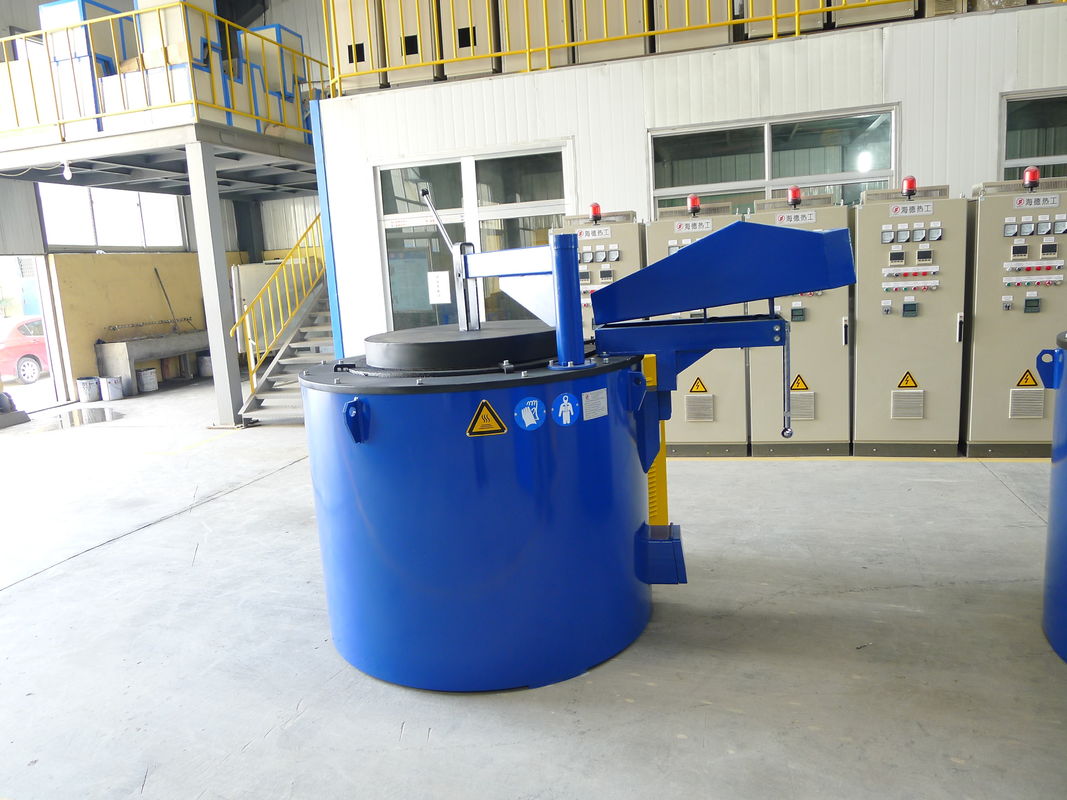

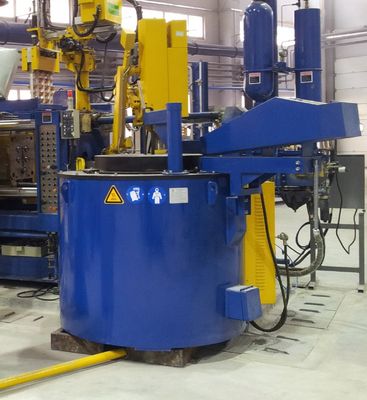

4. Picture Show
5. Hdyeb Introduce
-- Has a complete product line of aluminum casting equipment, all products are independent research
and development, manufacturing
